Quick Connect Coupling Retainer Clip: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Pay close attention to the orientation of the new retainer clip

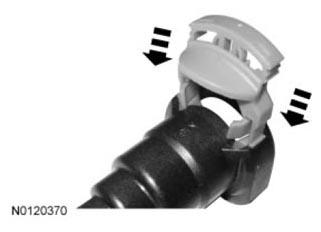

Fig 1: Pressing Retainer Clip In To Quick Connect Coupling Body

Courtesy of FORD MOTOR CO.

Place the new retainer clip in position and gently press the retainer clip in to the quick connect coupling body until the two tabs move aside.
Push down on the center of the primary latch release tab until you hear a 'click'. Gently push down on the center of the primary latch release tab to check that it is functioning properly.

Fig 2: Pushing Down On Center Of Primary Latch Release Tab
Courtesy of FORD MOTOR CO.
