Defective insulation stripping

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

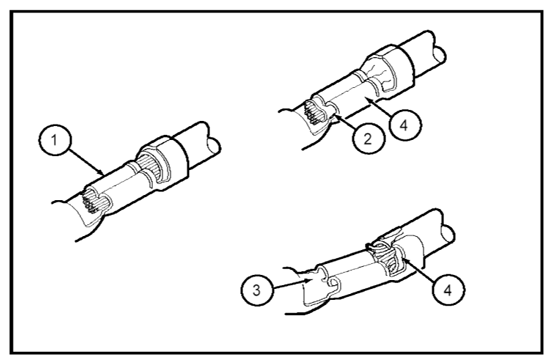

1 = Proper crimp

2 = Insulation not removed

3 = Wire strands missing

4 = Intermittent signals through pierced insulation

Fig 1: Identifying Defective Insulation Stripping
G07901261Courtesy of FORD MOTOR CO.
