Tool Link™ Reader: SuperCab

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

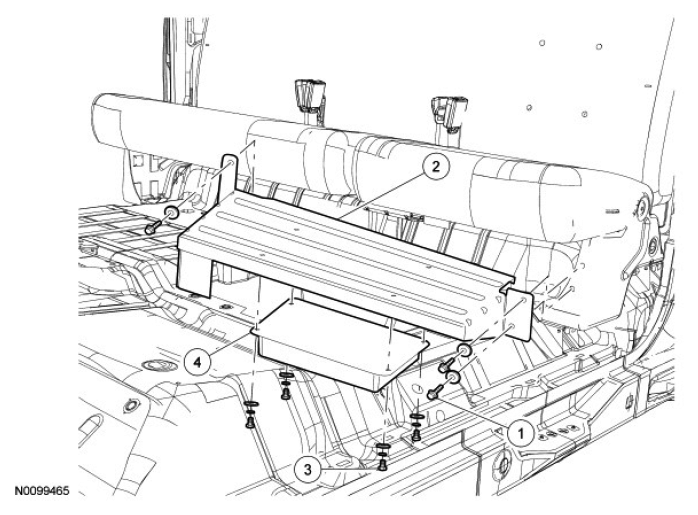

Fig 1: Identifying Tool Link™ Reader Related Components (Super Cab)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Tool Link™ reader bracket screws (3 required)
2	18FW400	Tool Link™ reader bracket
3	-	Tool Link™ reader screws (4 required)
4	18FW875	Tool Link™ reader
5	-	Tool Link™ reader electrical connectors
