Telematics Module: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

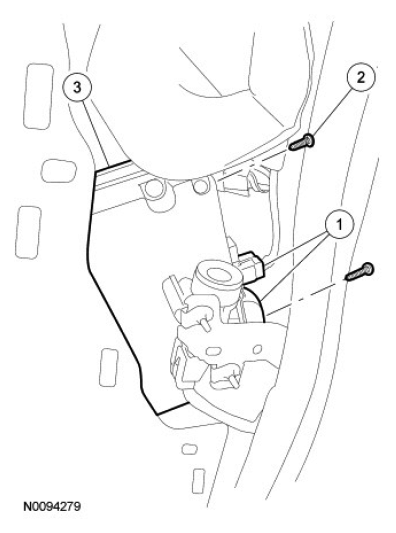

Fig 1: Identifying Telematics Module With Screws And Electrical Connector
G06763603Courtesy of FORD MOTOR CO.
Item Part Number Description
1 13FW700 Telematics module electrical connector
2 W704875-S Telematics module screws (2 required)
3 19FW402/ 19FW400 Telematics module (with bracket/without bracket)
