Regular Cab, Crew Cab
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

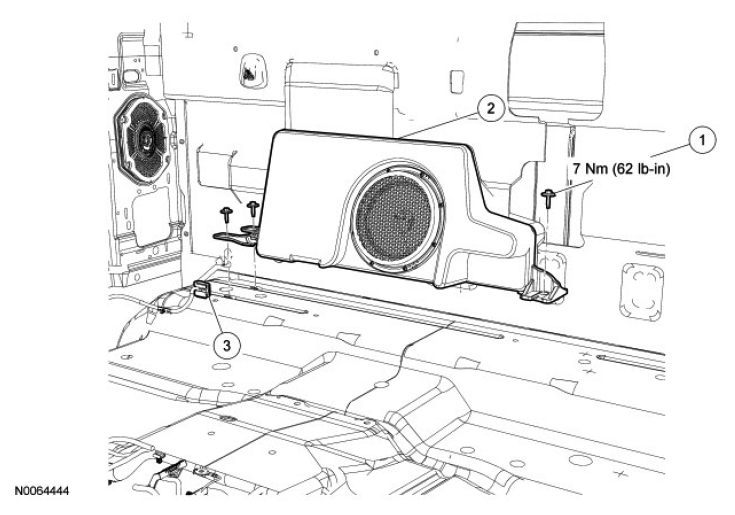

Fig 1: Subwoofer Speaker, Bolts And Electrical Connector With Torque Specification (Regular Cab And Crew Cab)
| Item | Part Number | Description |
|---|---|---|
| 1 | W709027-S | Subwoofer speaker bolts (3 required) |
| 2 | 18C804 | Subwoofer speaker |
| 3 | - | Subwoofer speaker electrical connector (part of 14A005) |
