Rear Entertainment Module (RETM): Notes

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

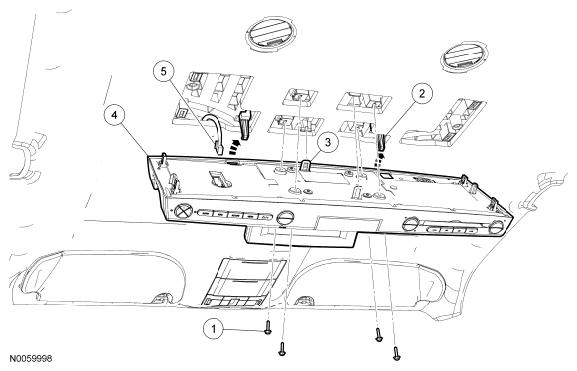

Fig 1: Identifying Rear Entertainment Module Related Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W704875-S	Rear Entertainment Module (RETM) screws (4 required)
2	-	J-hook (part of 10E957)
3	-	U-hook (part of 10E947)
4	10E947	RETM
5	-	RETM electrical connector (part of 15A657)
