Modem - Antenna: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

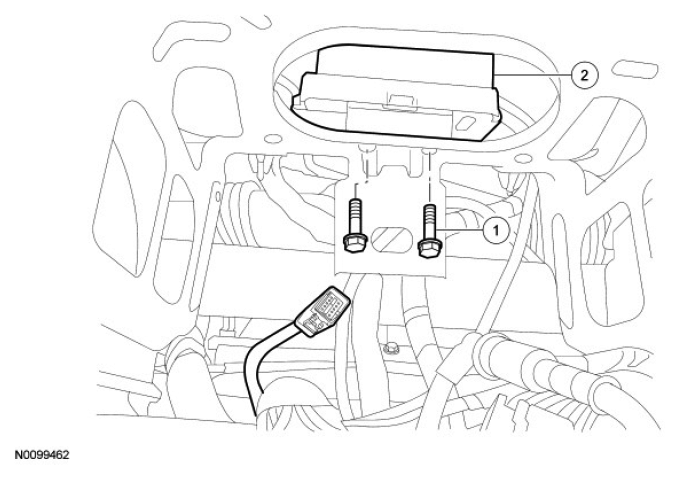

Fig 1: Identifying Modem-Antenna With Screws
G06763606Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W704875-S Modem-antenna screws (2 required)
2 19FW402 Modem-antenna (with in-dash computer)
2 18FW825 Modem-antenna (with Crew Chief)
