Audio Amplifier: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

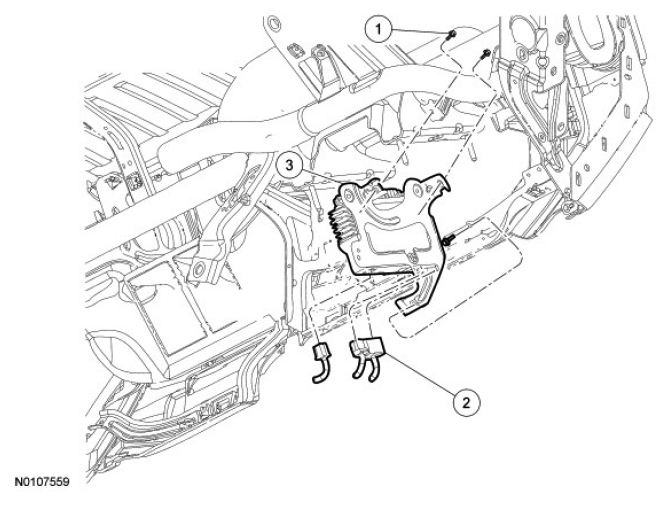

View shown from the LH rear of the instrument panel. Instrument panel removal is not required for removal of the audio amplifier.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
Audio amplifier screws (3 required) |
| 2 |
- |
Audio amplifier electrical connectors (part of 14401) |
| 3 |
18B849 |
Audio amplifier |
