Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wiper mounting arm and pivot shaft assembly. For additional information, refer to WIPER MOUNTING ARM AND PIVOT SHAFT .
Remove the wiper motor crank arm bolt and the windshield wiper linkage arm.
- To install, tighten to 35 Nm (26 lb-ft).

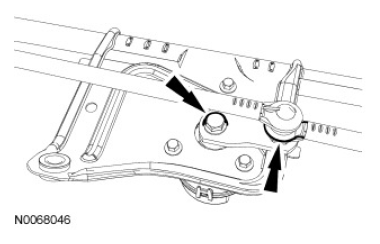

  Fig 1: Locating Wiper Motor Crank Arm Bolt And Windshield Wiper Linkage Arm
  Courtesy of FORD MOTOR CO.
Remove the 3 windshield wiper motor bolts and the windshield wiper motor.
- To install, tighten to 15 Nm (133 lb-in).
To install, reverse the removal procedure.
