Steering Column: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

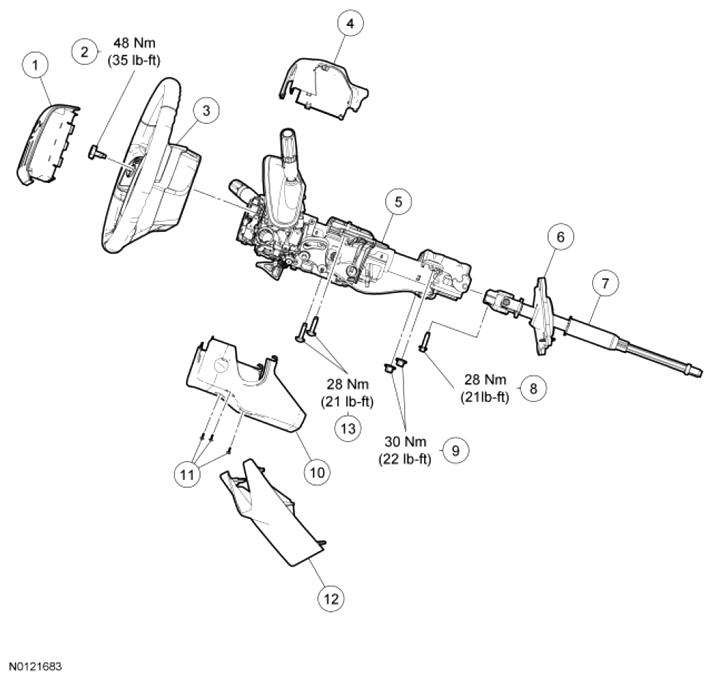

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
43B13 |
Driver airbag |
| 2 |
W709344 |
Steering wheel bolt |
| 3 |
3600 |
Steering wheel |
| 4 |
3530 |
Upper steering column shroud |
| 5 |
3C529 |
Steering column |
| 6 |
3D677 |
Steering column shaft dust cover |
| 7 |
3E751 |
Upper steering column shaft |
| 8 |
W714409 |
Steering column shaft-to-steering column bolt |
| 9 |
N806423 |
Steering column-to-instrument panel nuts (2 required) |
| 10 |
3530 |
Lower steering column shroud |
| 11 |
W715057 |
Lower steering column shroud screw (3 required) |
| 12 |
04459 |
Steering column opening trim panel |
| 13 |
W712250 |
Steering column-to-instrument panel bolts (2 required) |
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
Passive Anti-Theft System (PATS) transceiver electrical connector (part of 14401) |
| 2 |
7E395 |
Transmission selector lever cable |
| 3 |
3C529 |
Steering column |
| 4 |
- |
Transmission selector lever cable retainer (part of 7E395) |
| 5 |
- |
Wiring harness retainer (part of 14401) |
| 6 |
- |
Steering column control module electrical connector (part of 14401) |
| 7 |
- |
Wiring harness retainer (part of 14401) |
| 8 |
- |
Multifunction switch electrical connector (part of 14401) |
| 9 |
- |
Adjustable pedal switch electrical connector (part of 14401) |
| 10 |
- |
Automatic shift lever electrical connector (part of 14401) |
