Transmission Controls - 6F35
Transmission Controls - 6F35
WARNING:
This page is about a different car, the 2015 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

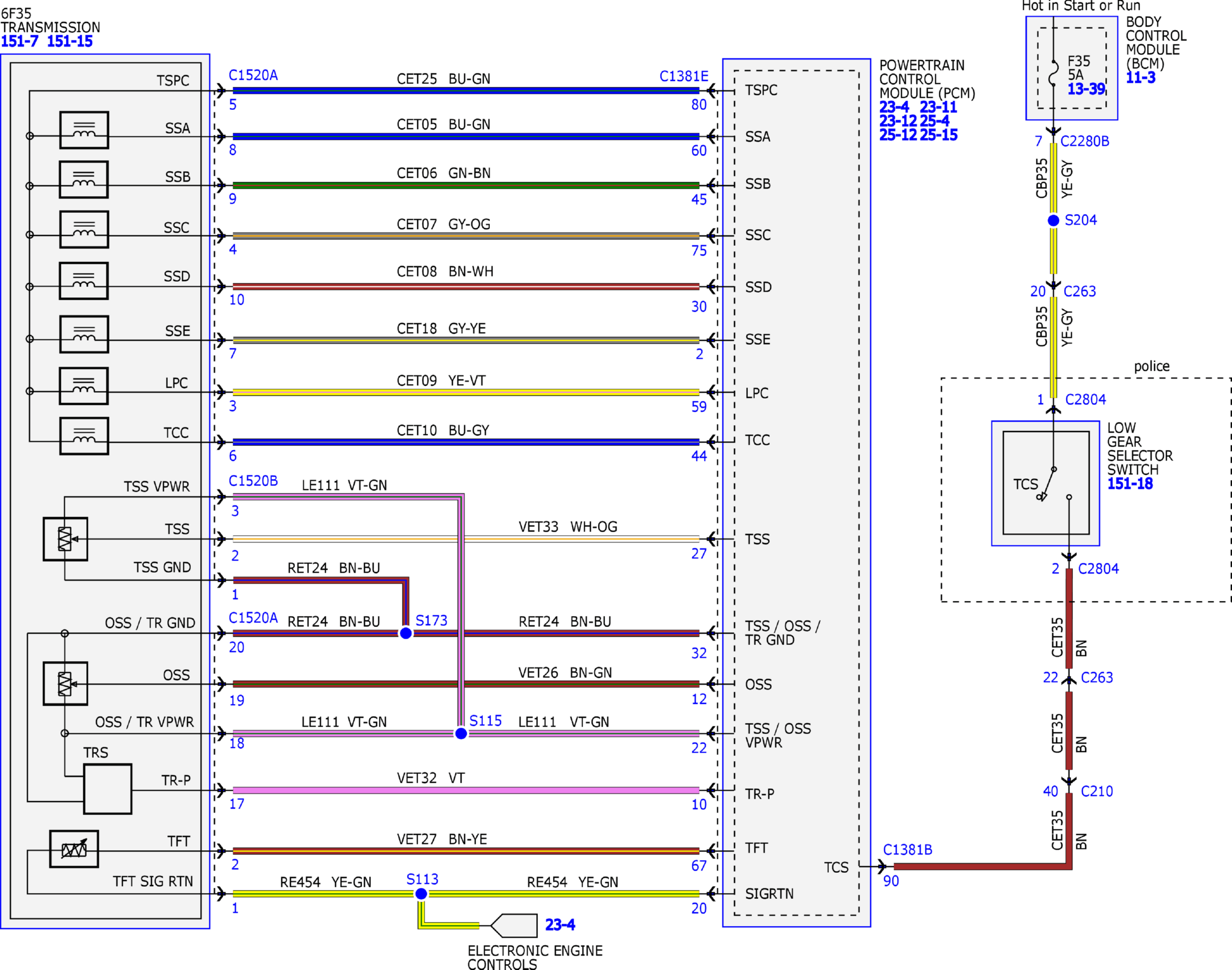

Fig 1: Transmission Controls - 6F35 Wiring Diagram
Courtesy of FORD MOTOR COMPANY
