Transmission Controls - 6 Speed

WARNING: This page is about a different car, the 2015 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

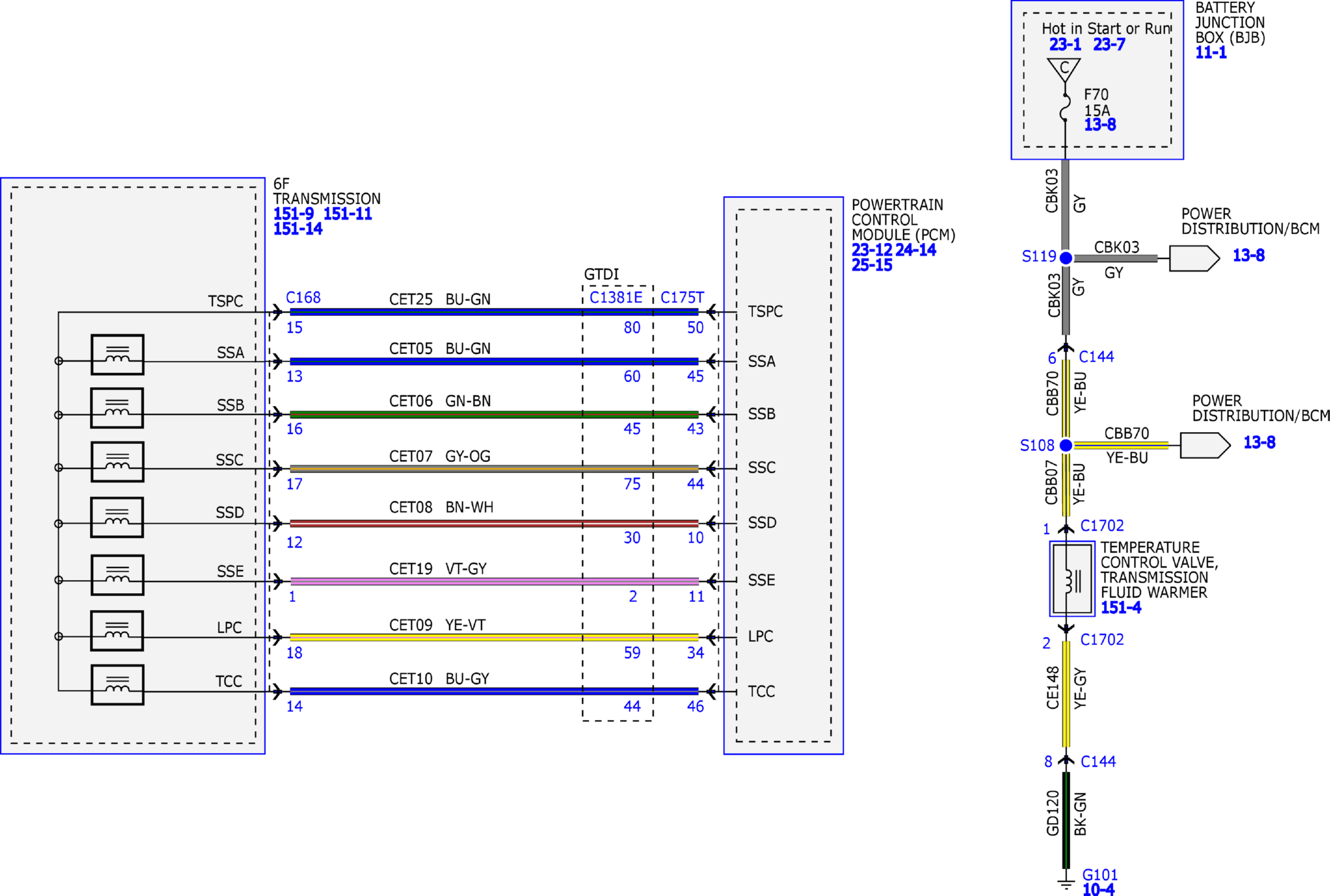

Fig 1: Transmission Controls - 6 Speed Wiring Diagram (1 of 3)

Courtesy of FORD MOTOR COMPANY

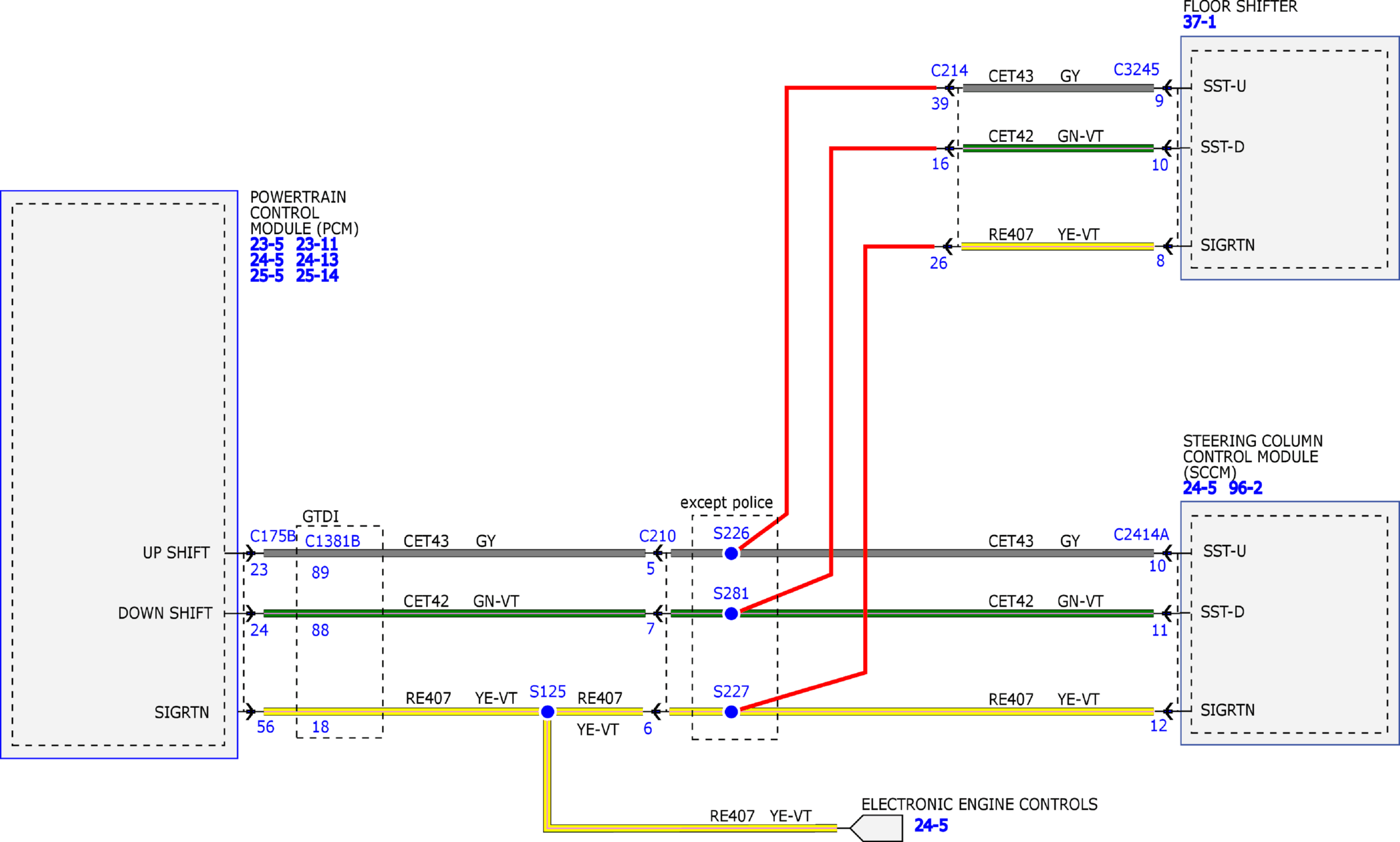

Fig 2: Transmission Controls - 6 Speed Wiring Diagram (2 of 3)

Courtesy of FORD MOTOR COMPANY

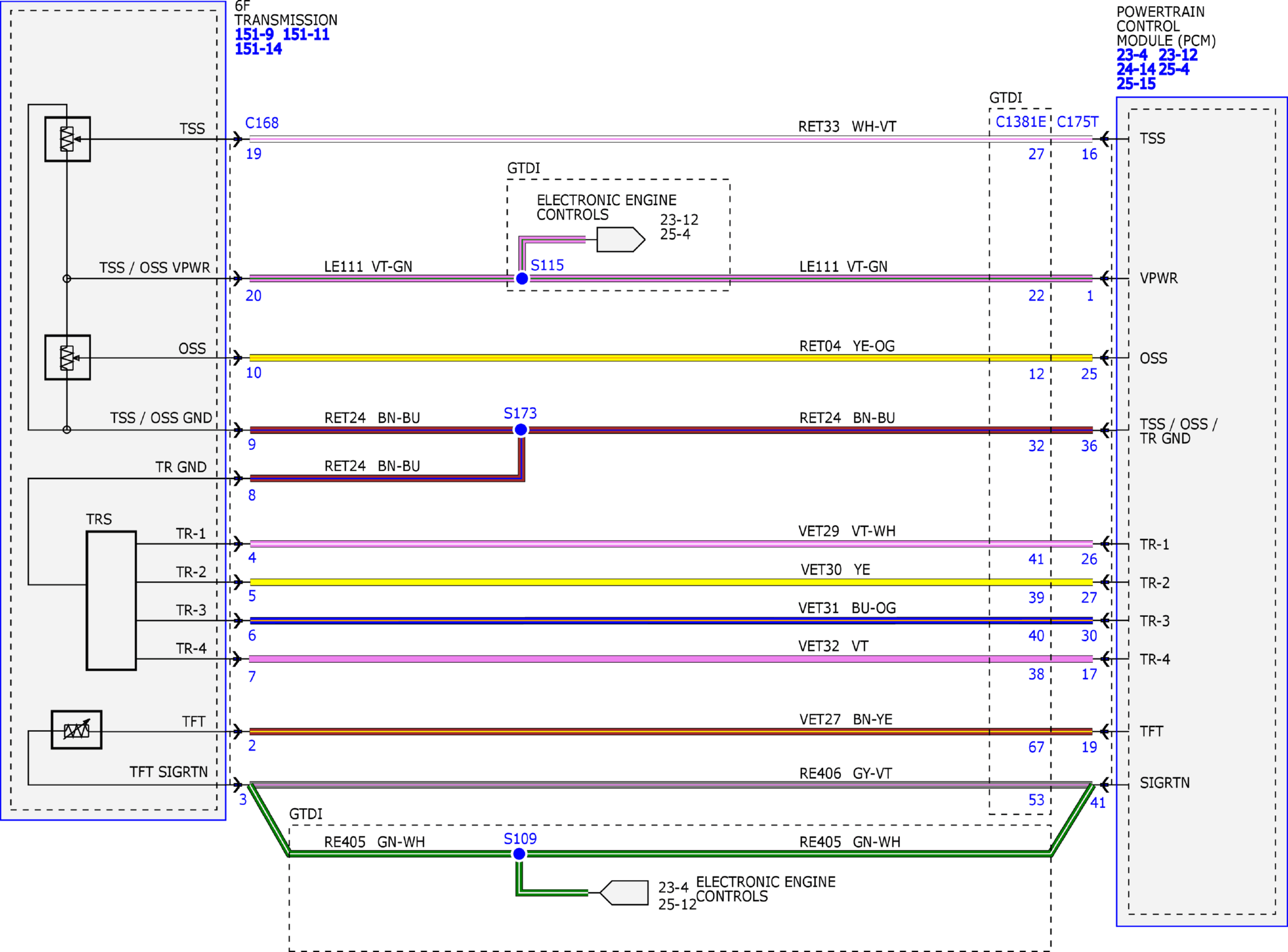

Fig 3: Transmission Controls - 6 Speed Wiring Diagram (3 of 3)

Courtesy of FORD MOTOR COMPANY
