Section 757 (OEM Wiring Diagrams)
>>
Starting System
Starting System
WARNING:
This page is about a different car, the 2015 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

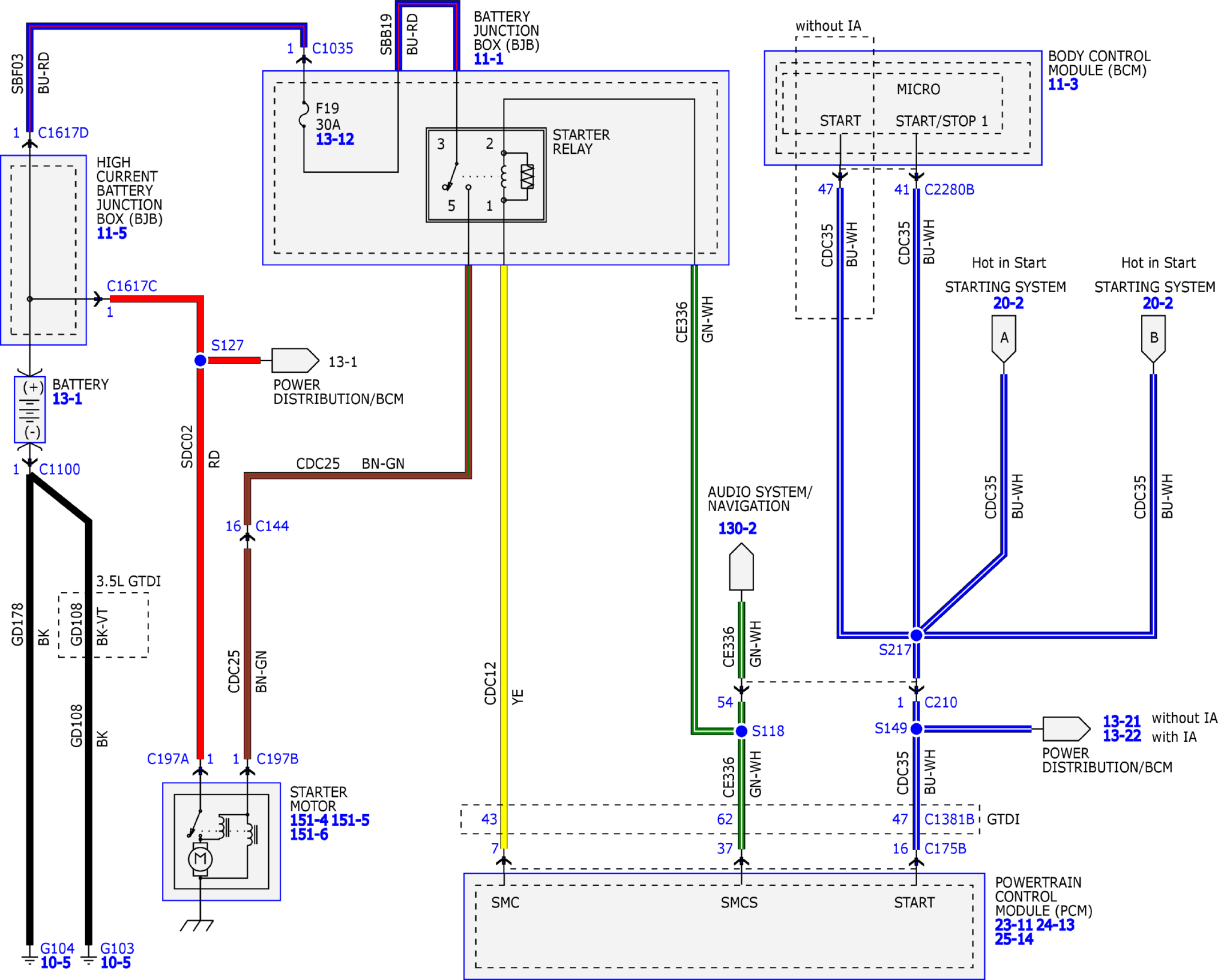

Fig 1: Starting System Wiring Diagram (1 of 2)
Courtesy of FORD MOTOR COMPANY

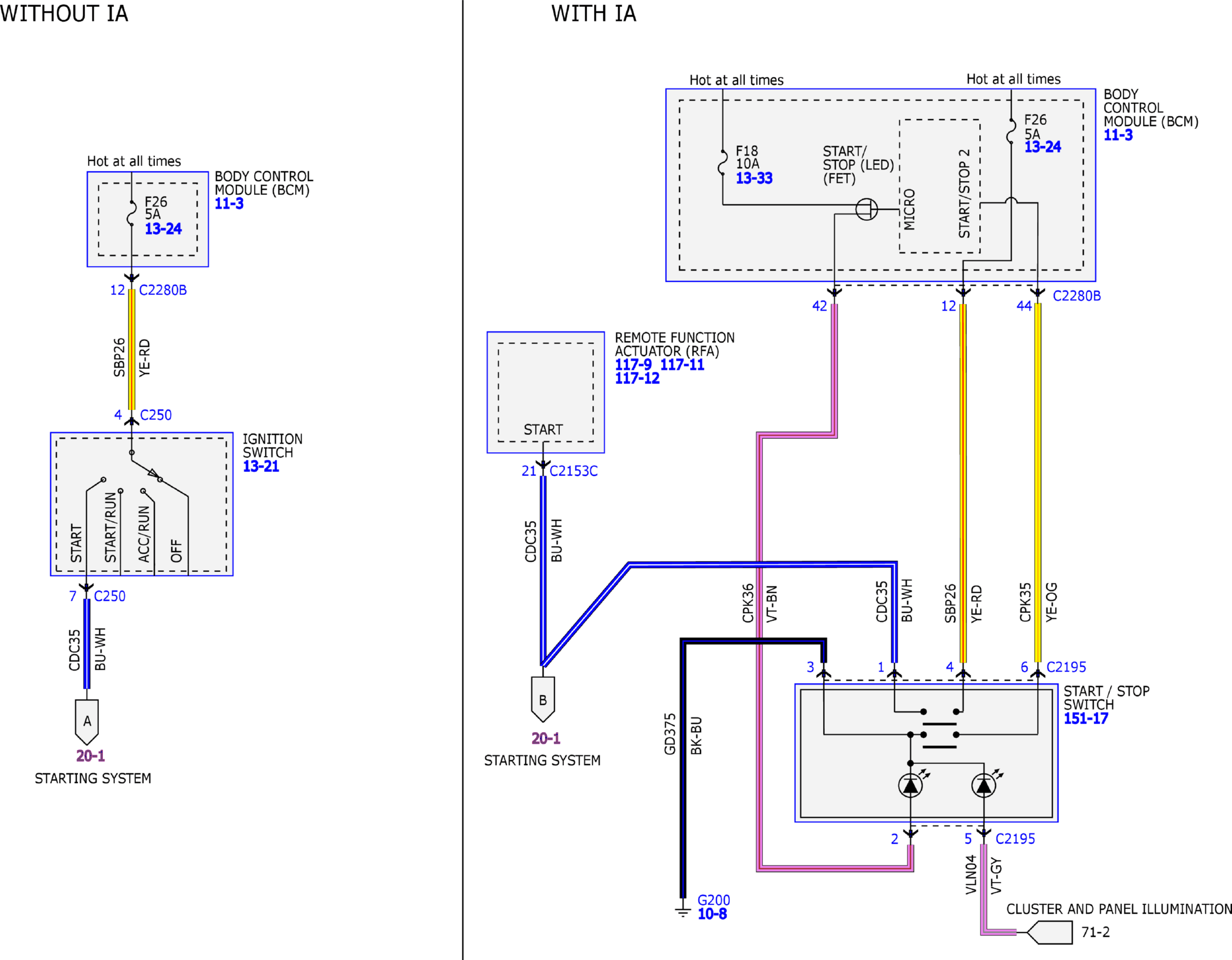

Fig 2: Starting System Wiring Diagram (2 of 2)
Courtesy of FORD MOTOR COMPANY
