Power Mirrors

WARNING: This page is about a different car, the 2015 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

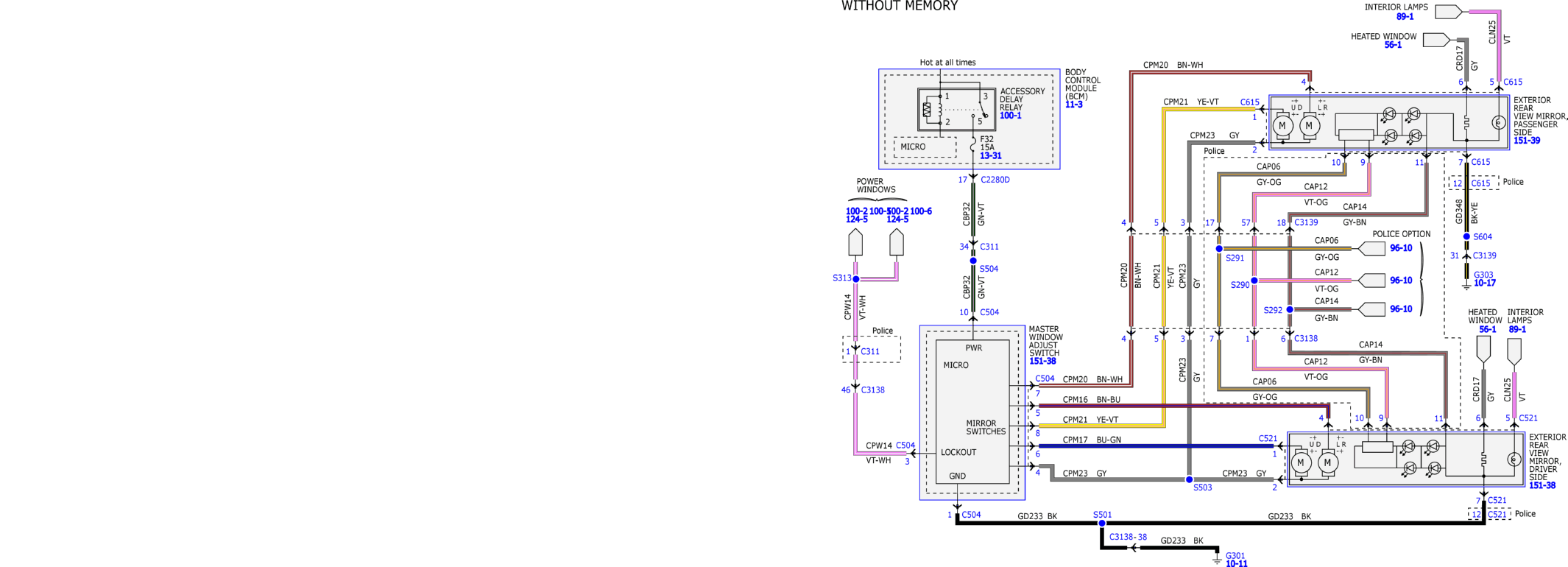

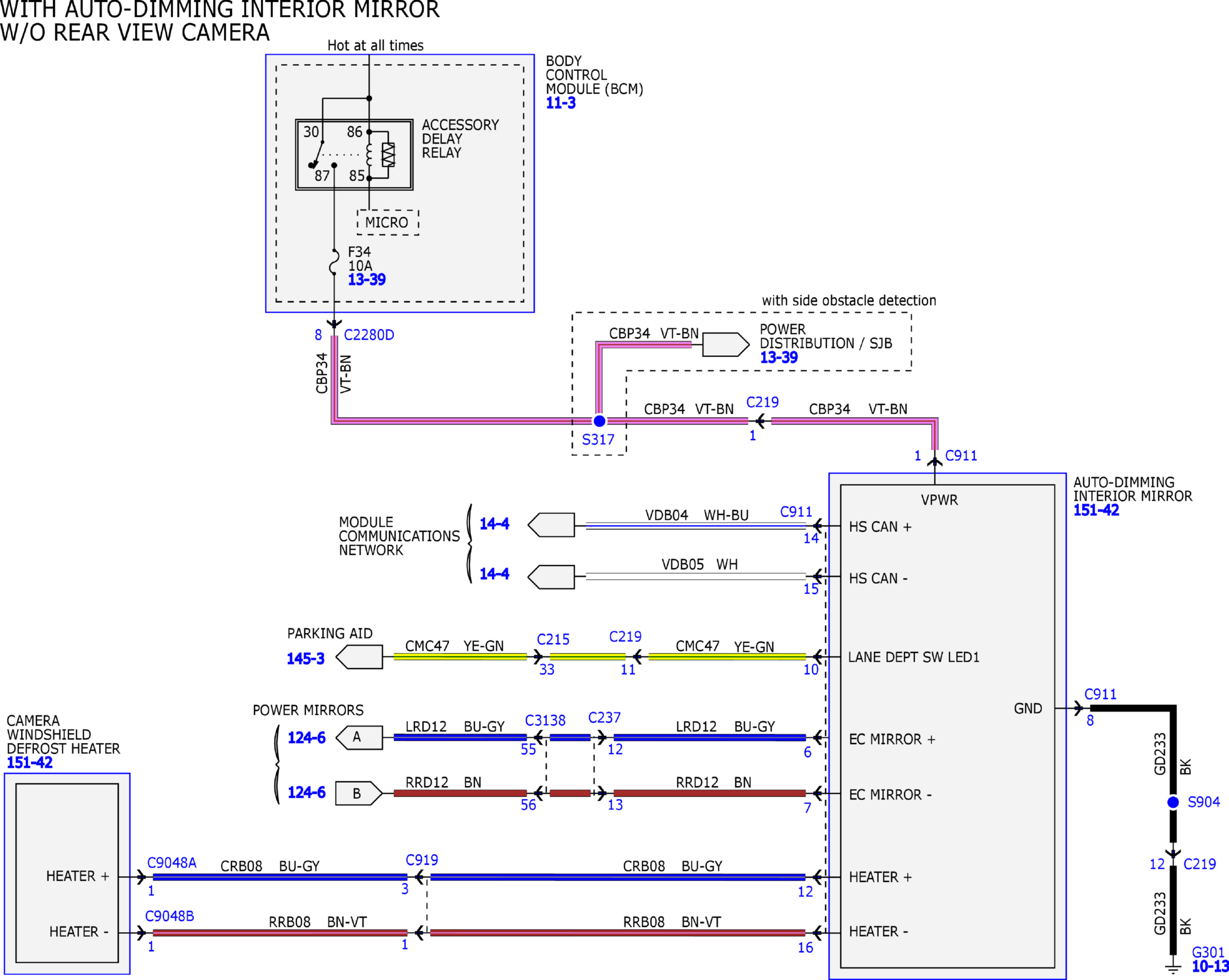

Fig 1: Power Mirrors Wiring Diagram (1 of 10)

Courtesy of FORD MOTOR COMPANY

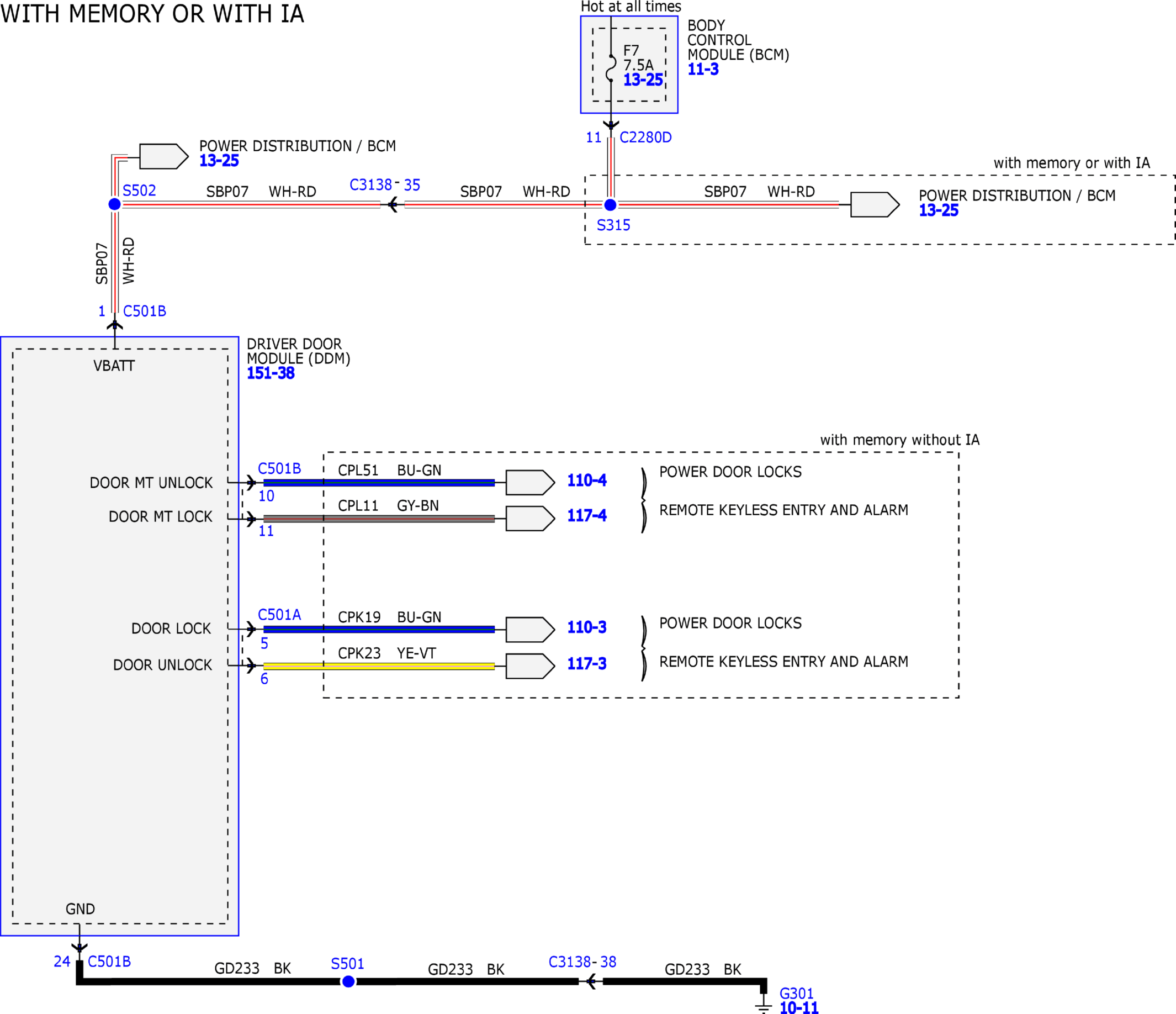

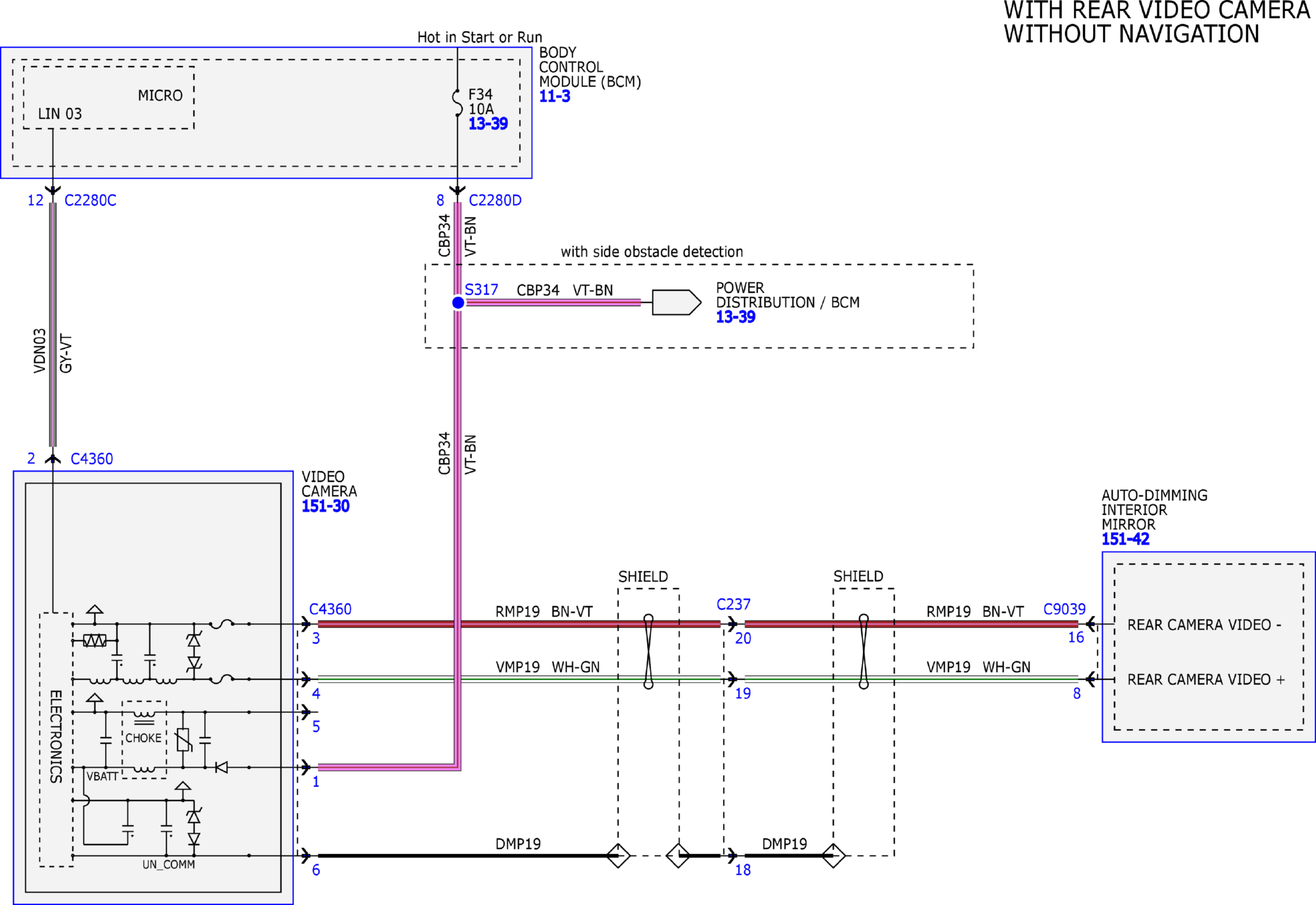

Fig 2: Power Mirrors Wiring Diagram (1 of 10)

Courtesy of FORD MOTOR COMPANY

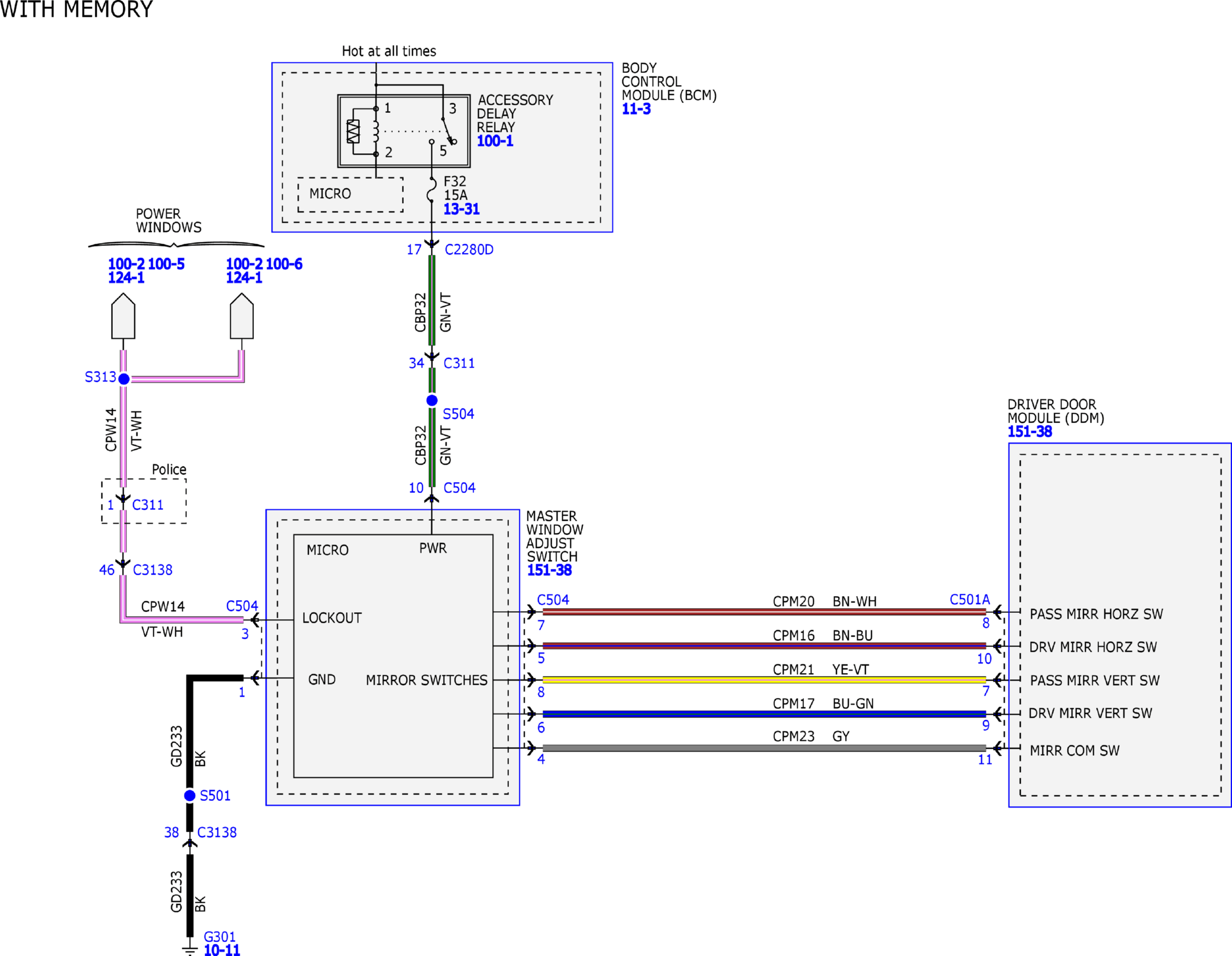

Fig 3: Power Mirrors Wiring Diagram (1 of 10)

Courtesy of FORD MOTOR COMPANY

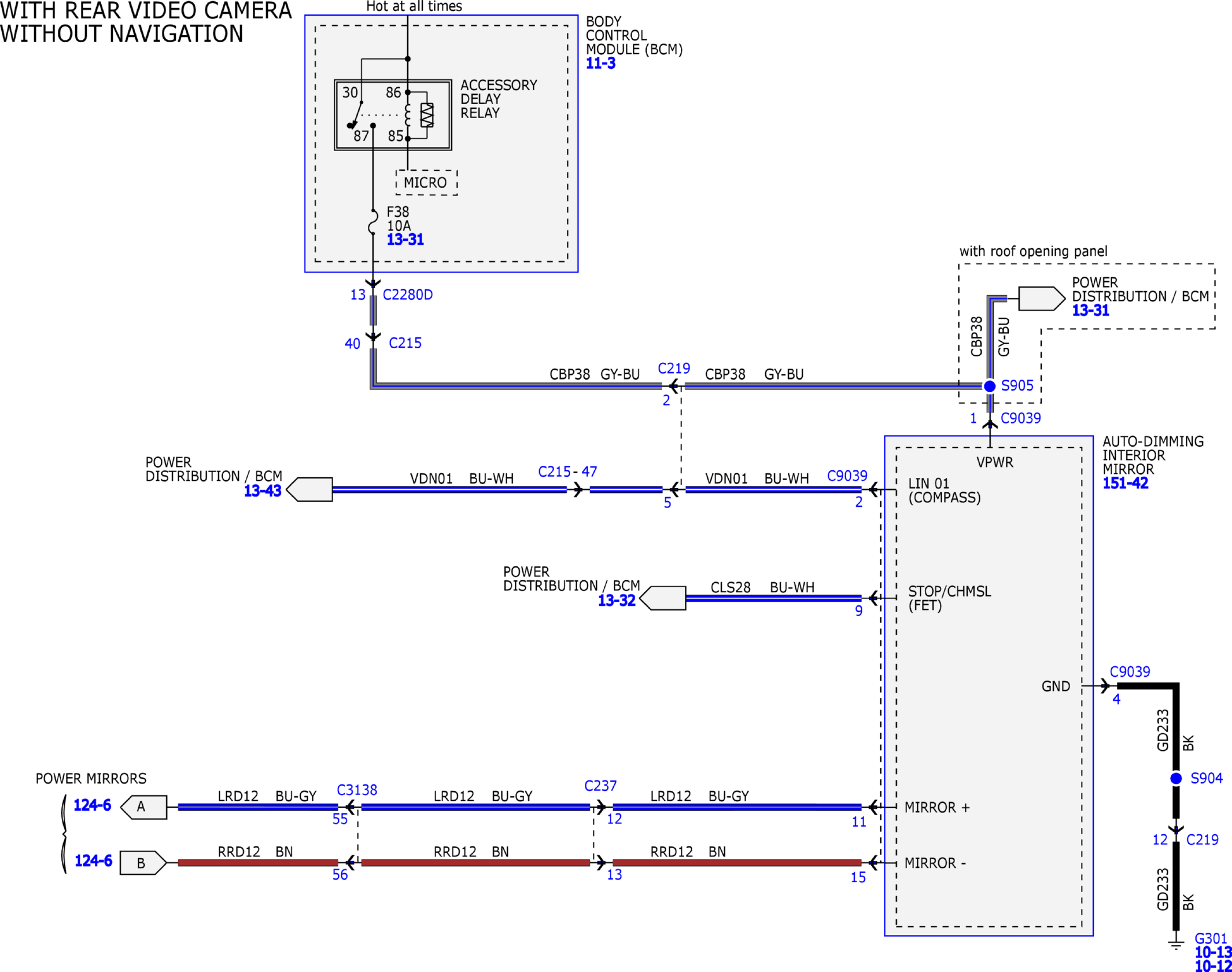

Fig 4: Power Mirrors Wiring Diagram (4 of 10)

Courtesy of FORD MOTOR COMPANY

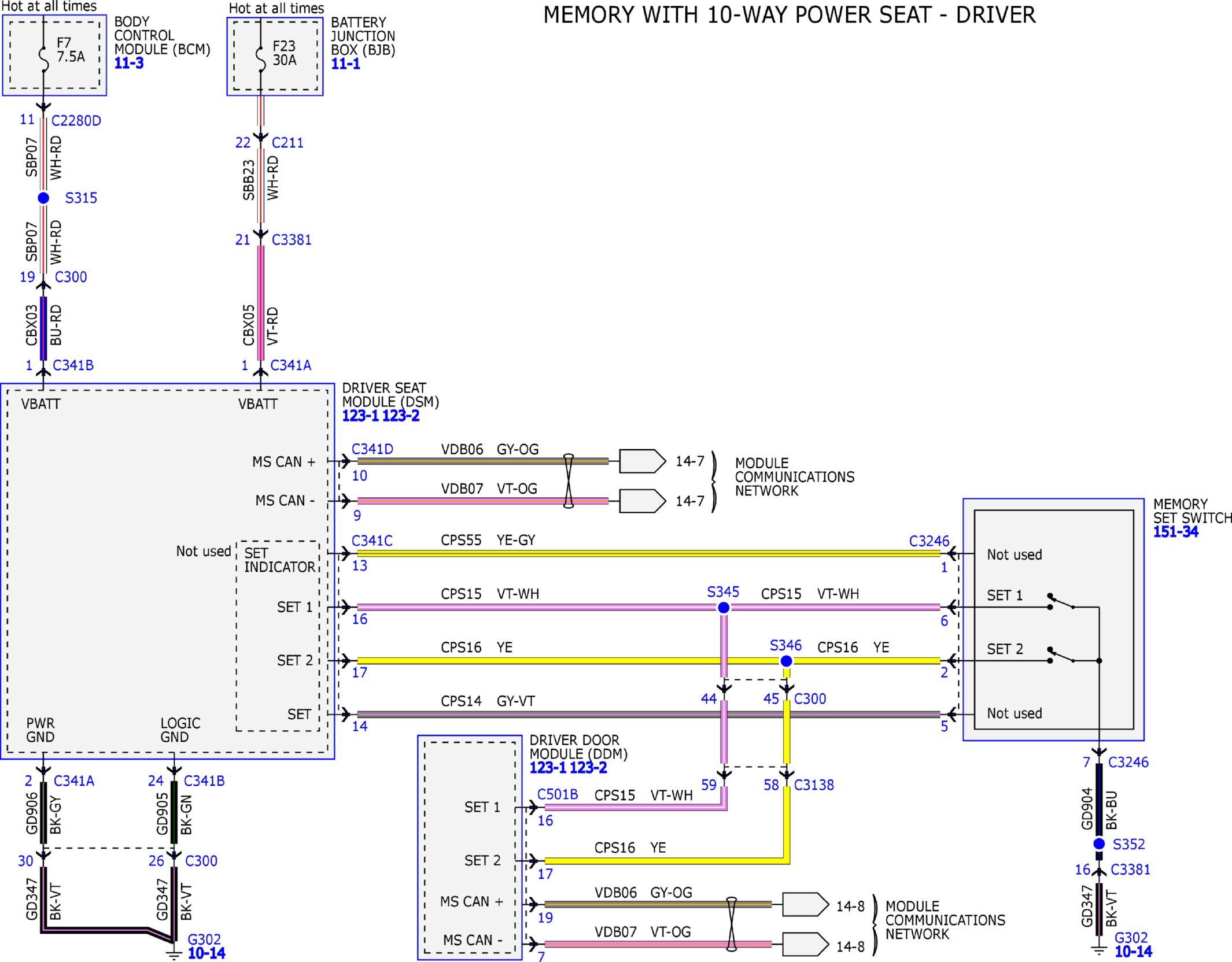

Fig 5: Power Mirrors Wiring Diagram (5 of 10)

Courtesy of FORD MOTOR COMPANY

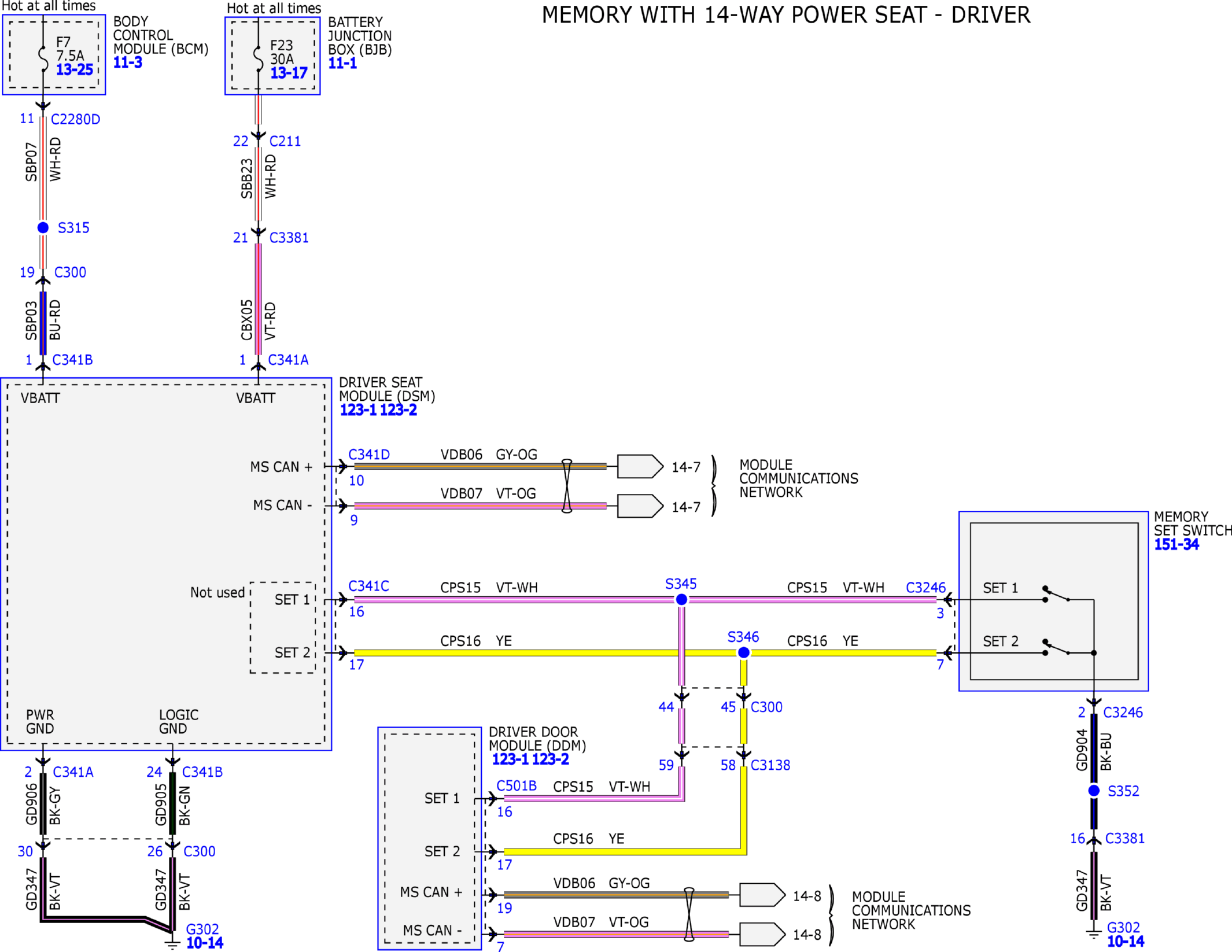

Fig 6: Power Mirrors Wiring Diagram (6 of 10)

Courtesy of FORD MOTOR COMPANY

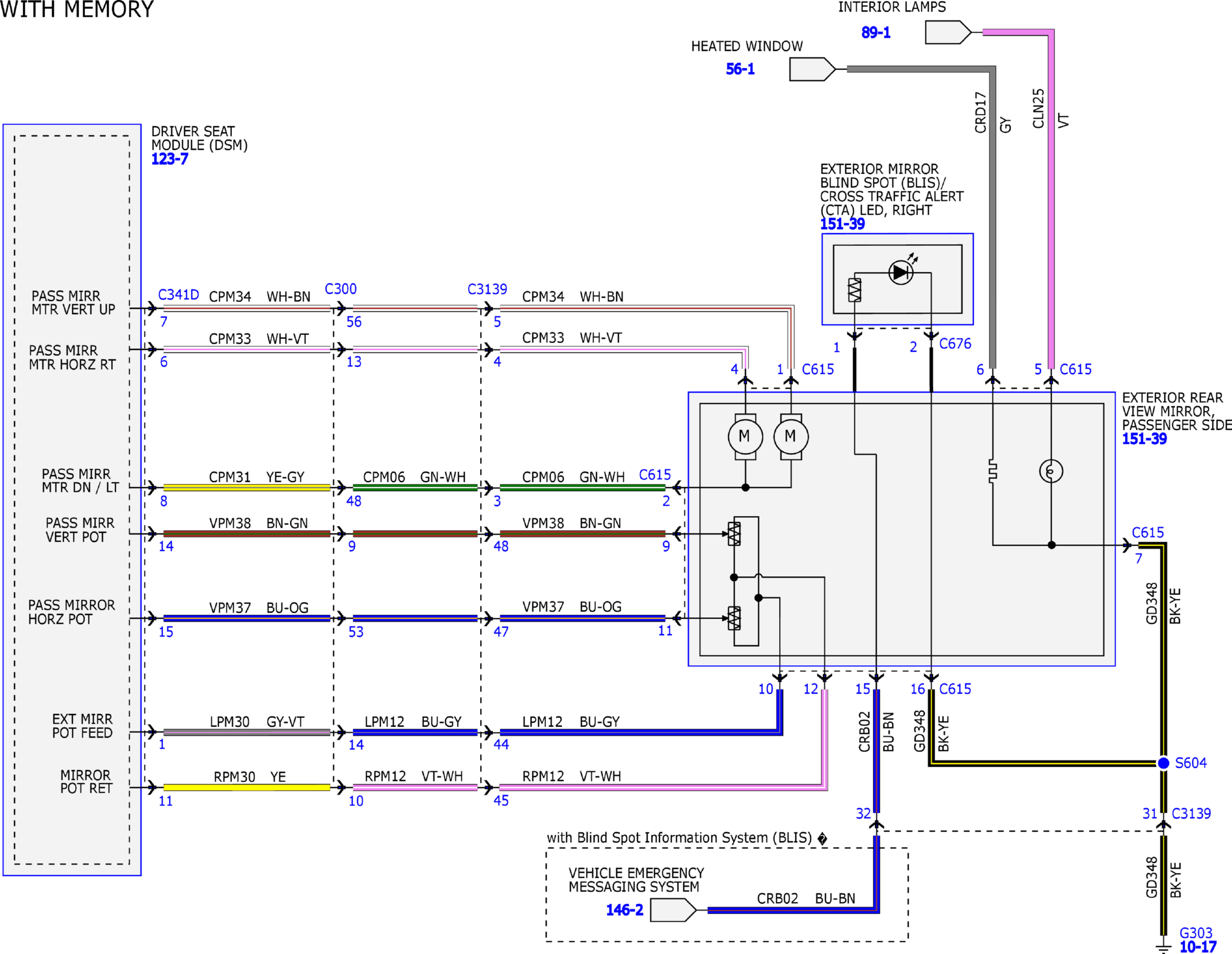

Fig 7: Power Mirrors Wiring Diagram (7 of 10)

Courtesy of FORD MOTOR COMPANY

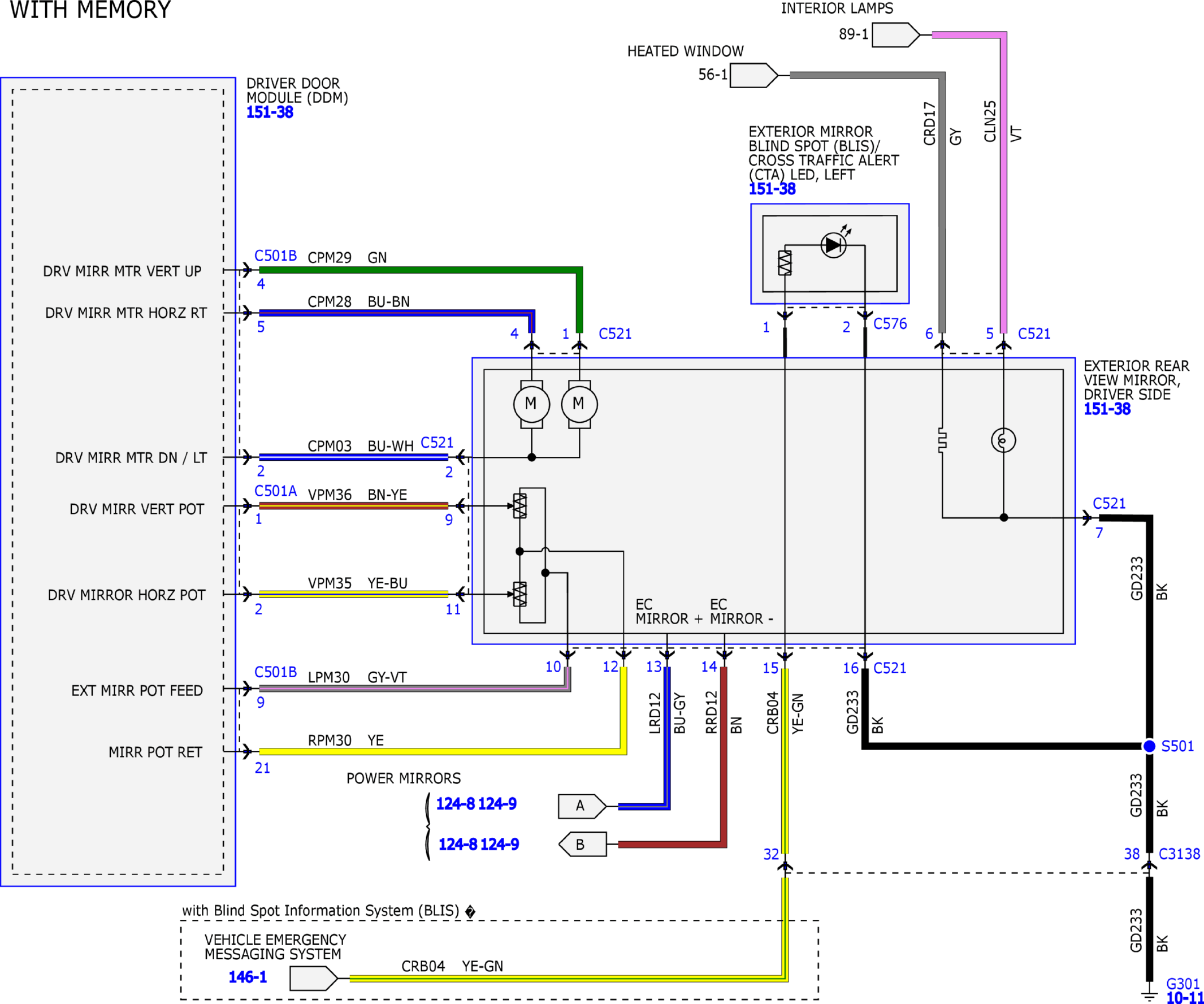

Fig 8: Power Mirrors Wiring Diagram (8 of 10)

Courtesy of FORD MOTOR COMPANY

Fig 9: Power Mirrors Wiring Diagram (9 of 10)

Courtesy of FORD MOTOR COMPANY

Fig 10: Power Mirrors Wiring Diagram (10 of 10)

Courtesy of FORD MOTOR COMPANY
