WARNING: This page is about a different car, the 2015 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

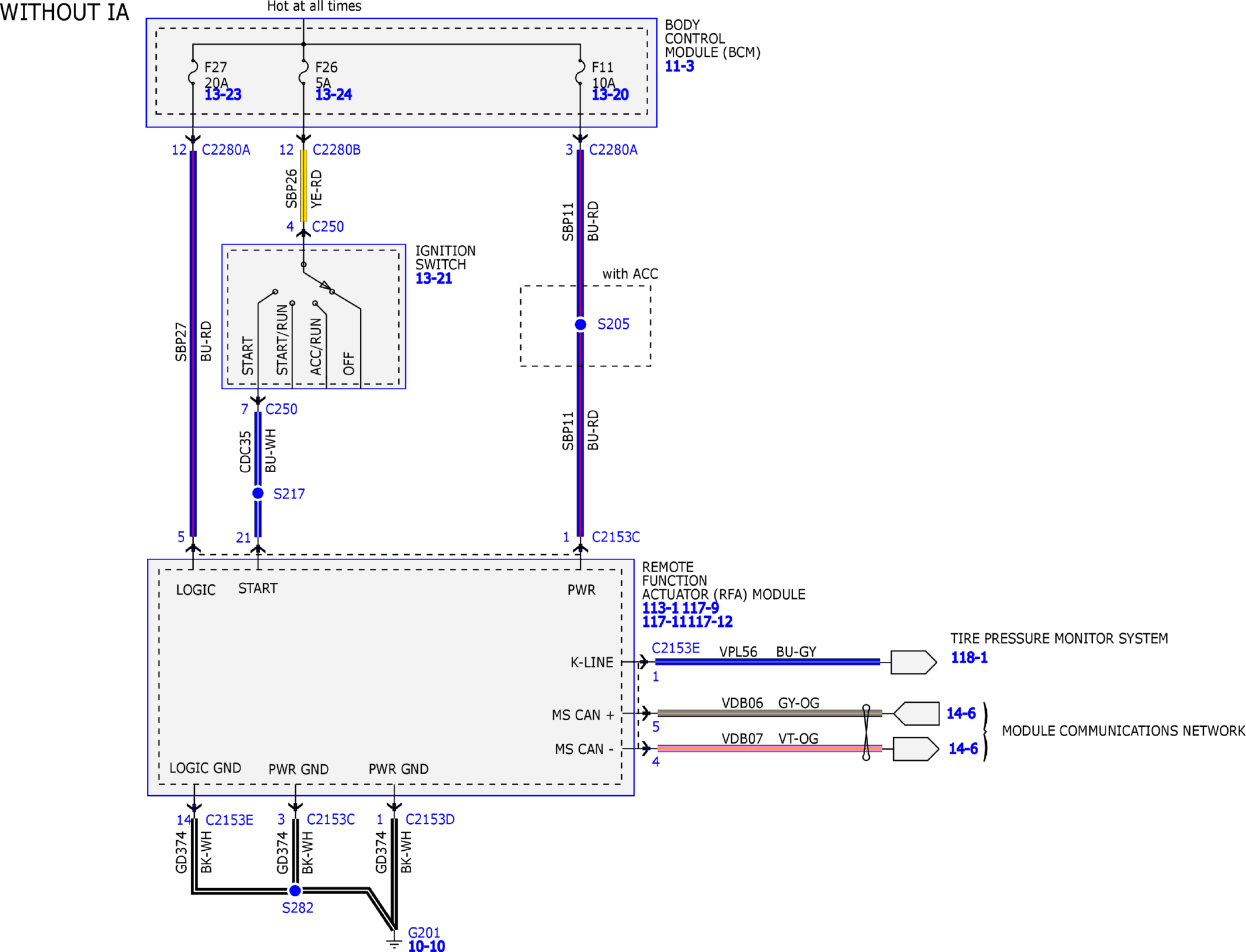

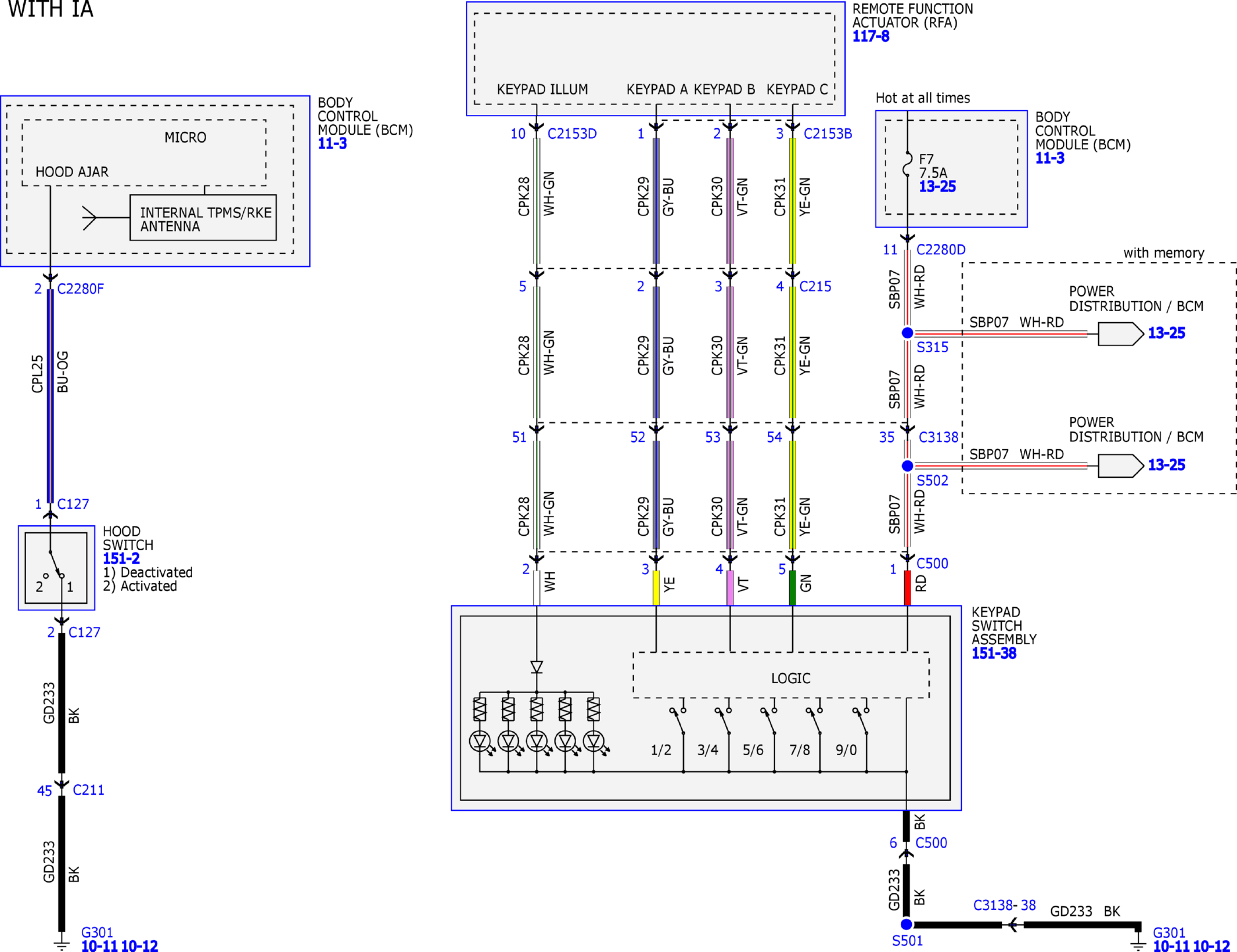

Fig 1: Power Door Locks Wiring Diagram (1 of 11)
Courtesy of FORD MOTOR COMPANY

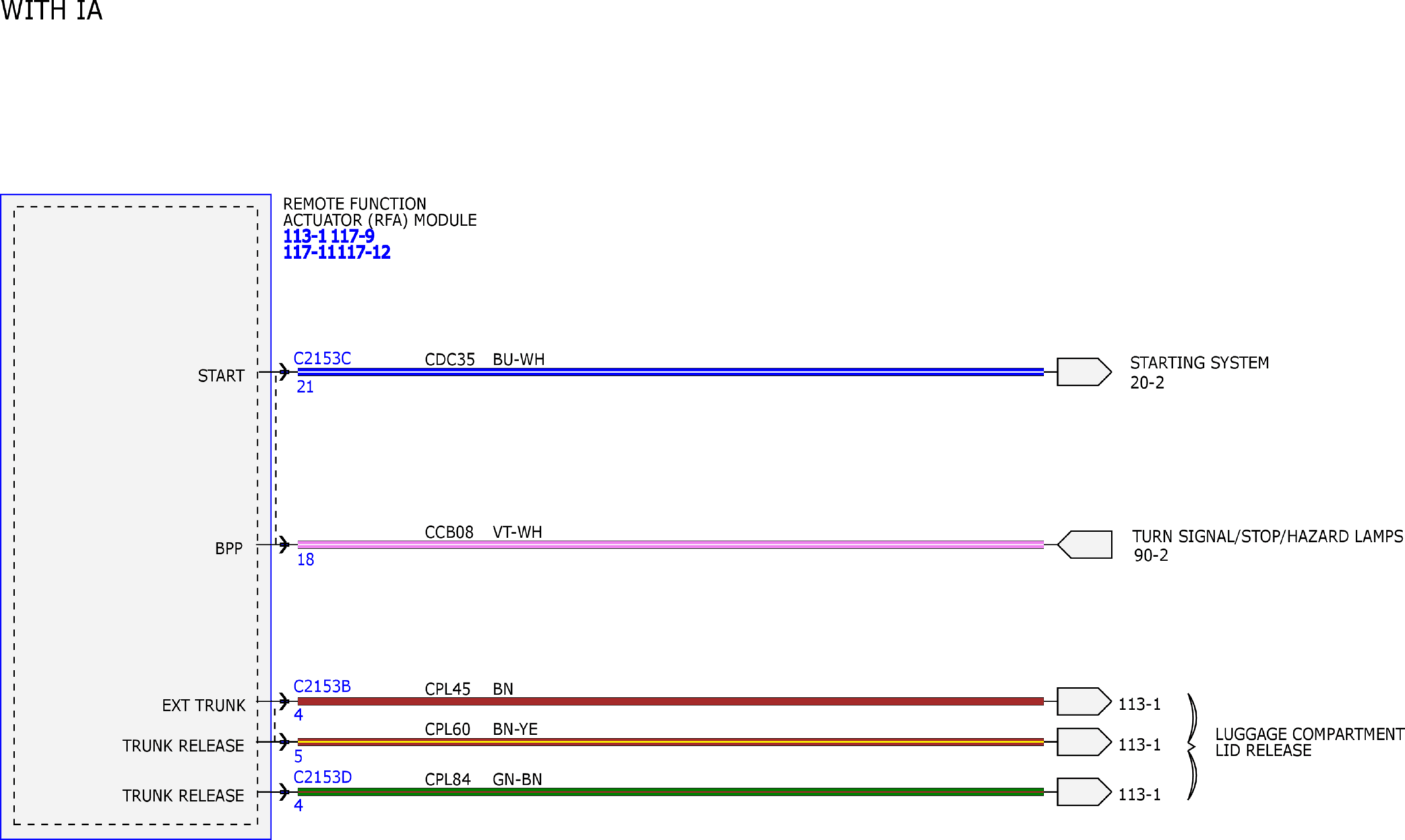

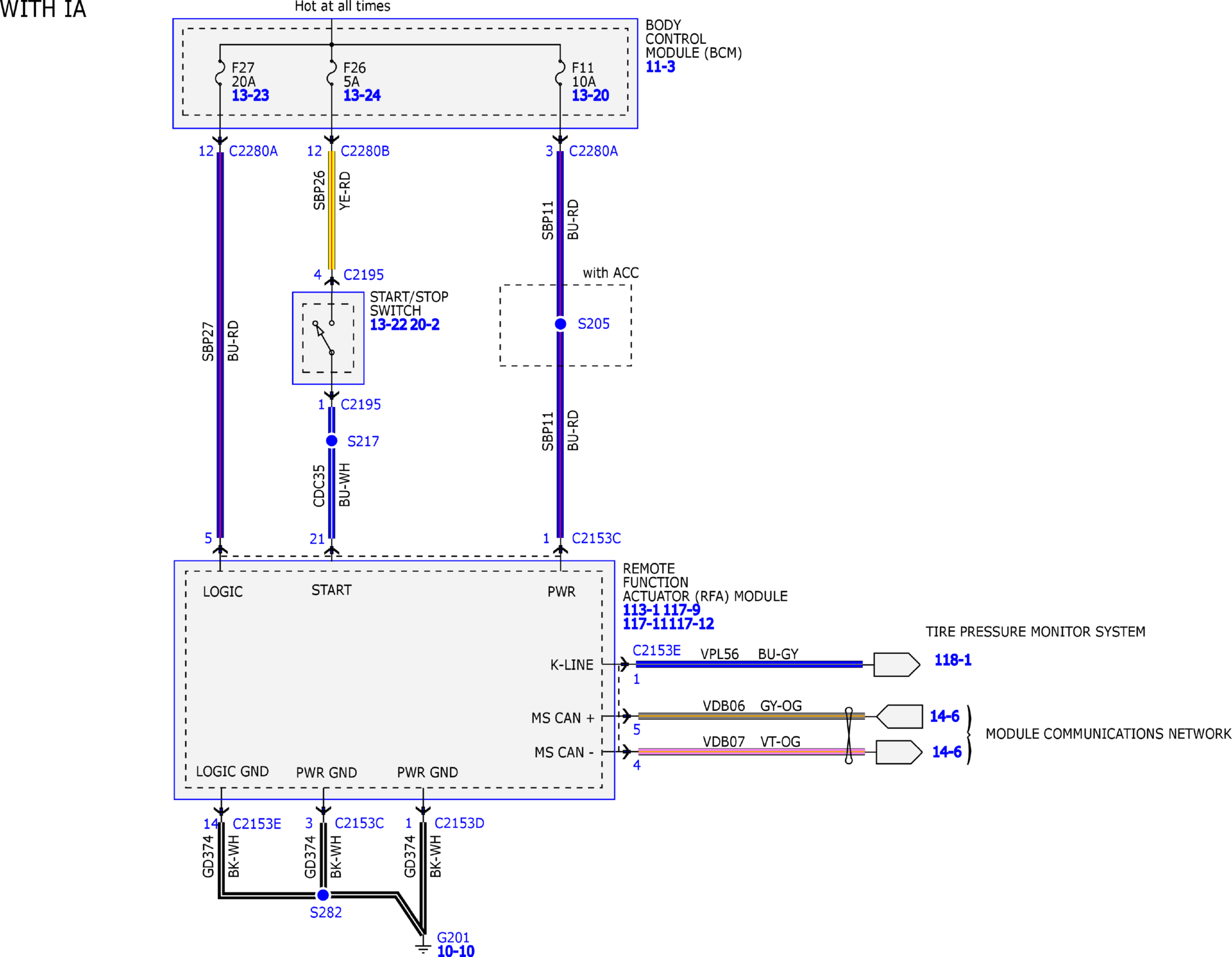

Fig 2: Power Door Locks Wiring Diagram (2 of 11)
Courtesy of FORD MOTOR COMPANY

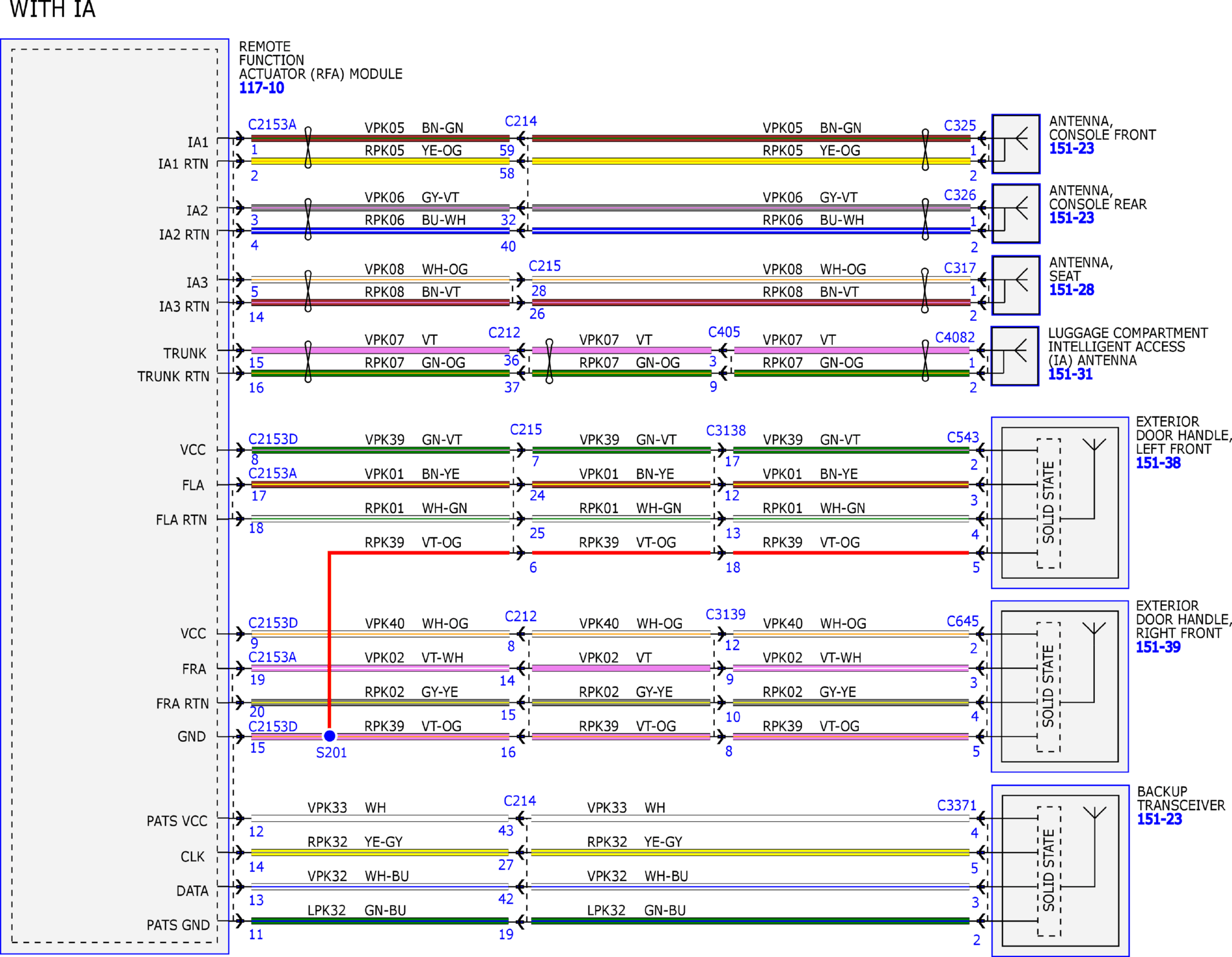

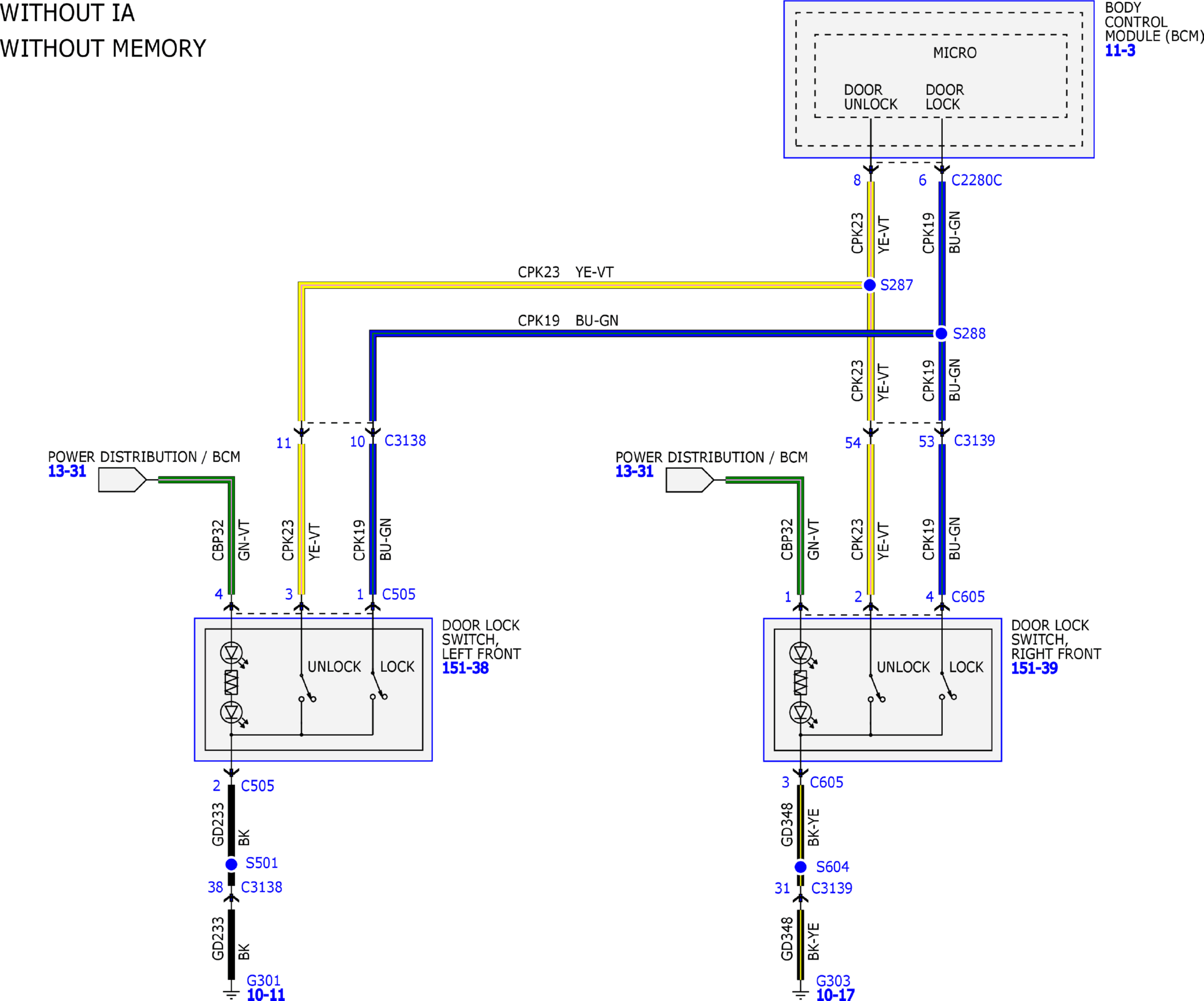

Fig 3: Power Door Locks Wiring Diagram (3 of 11)
Courtesy of FORD MOTOR COMPANY

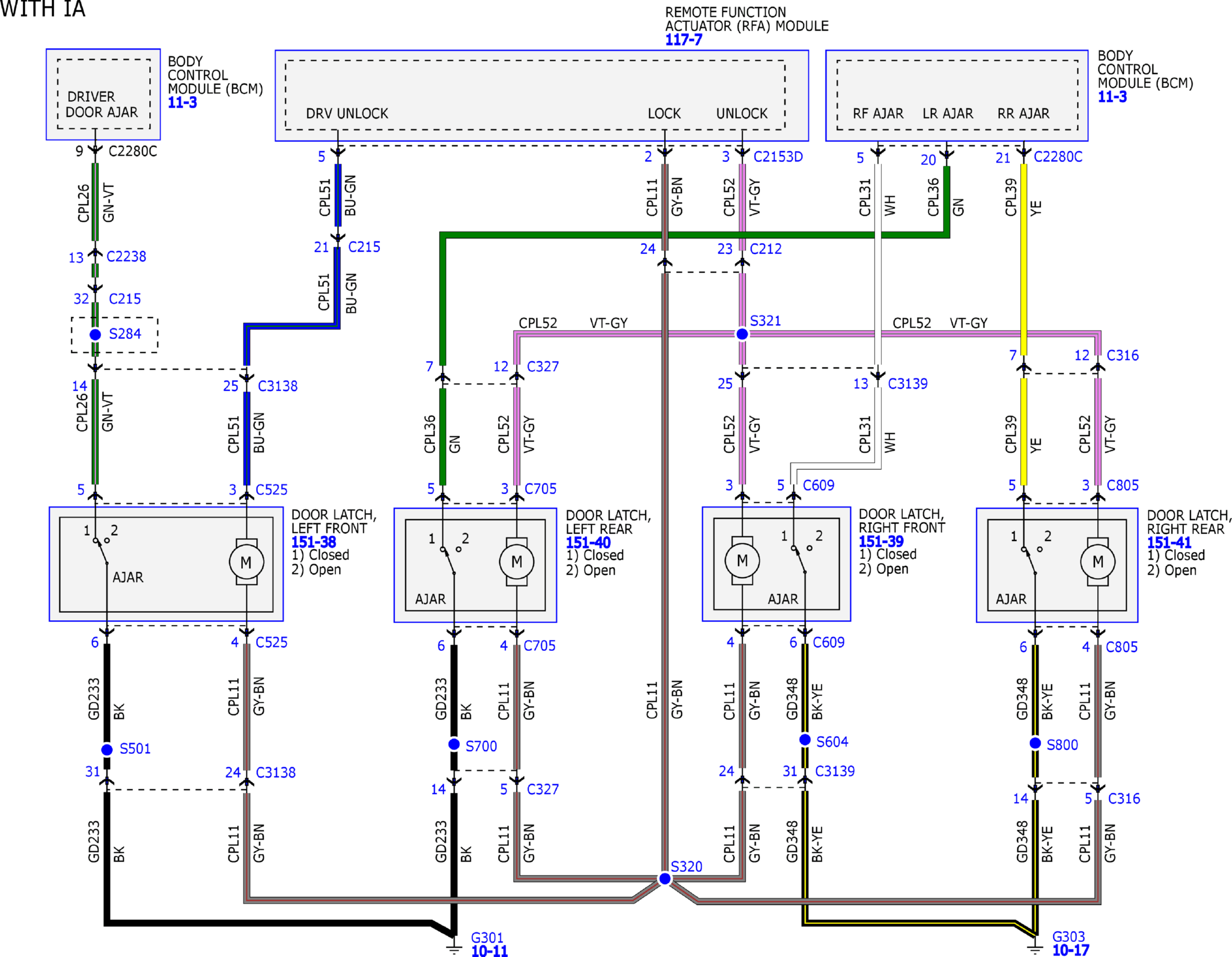

Fig 4: Power Door Locks Wiring Diagram (4 of 11)
Courtesy of FORD MOTOR COMPANY

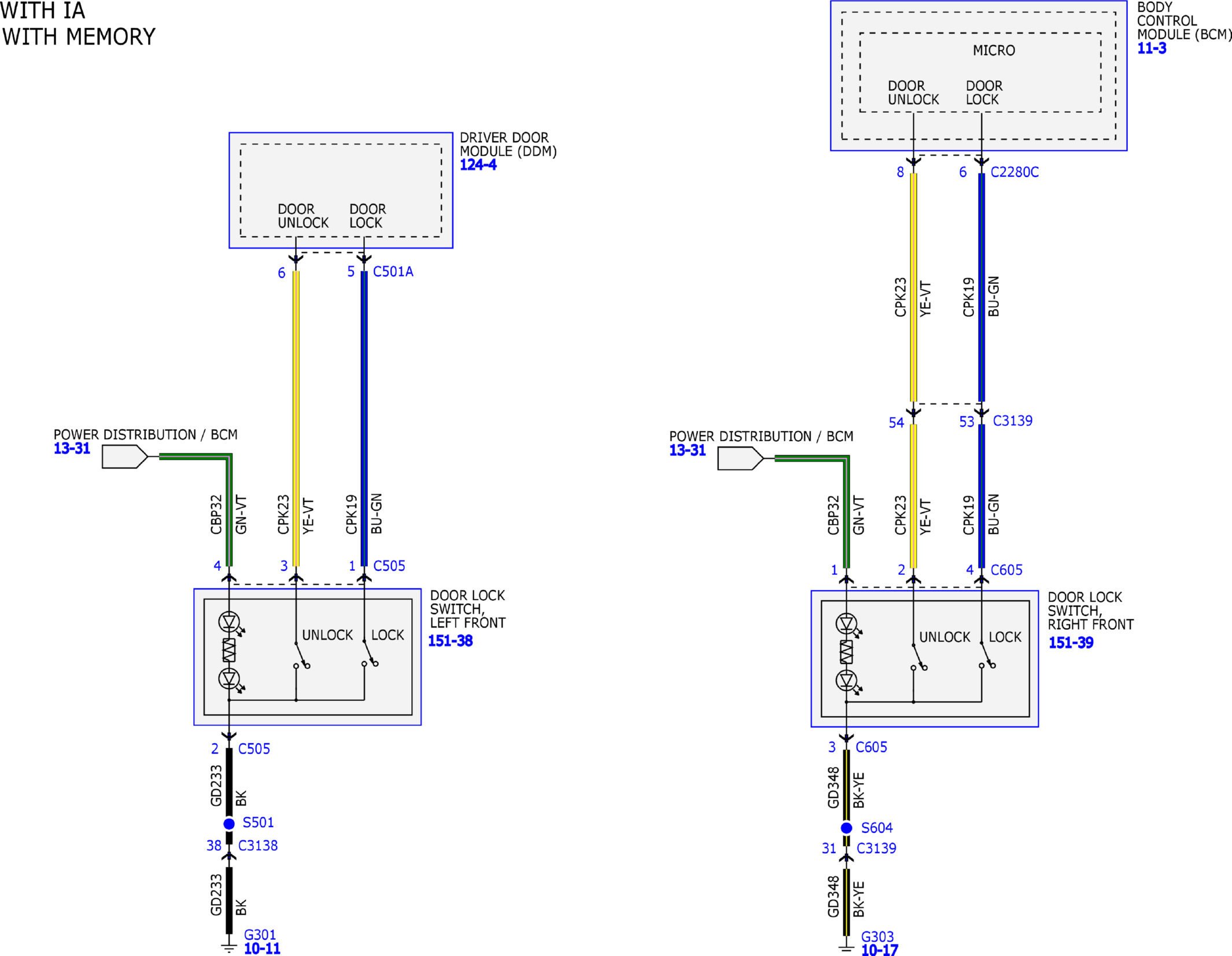

Fig 5: Power Door Locks Wiring Diagram (5 of 11)
Courtesy of FORD MOTOR COMPANY

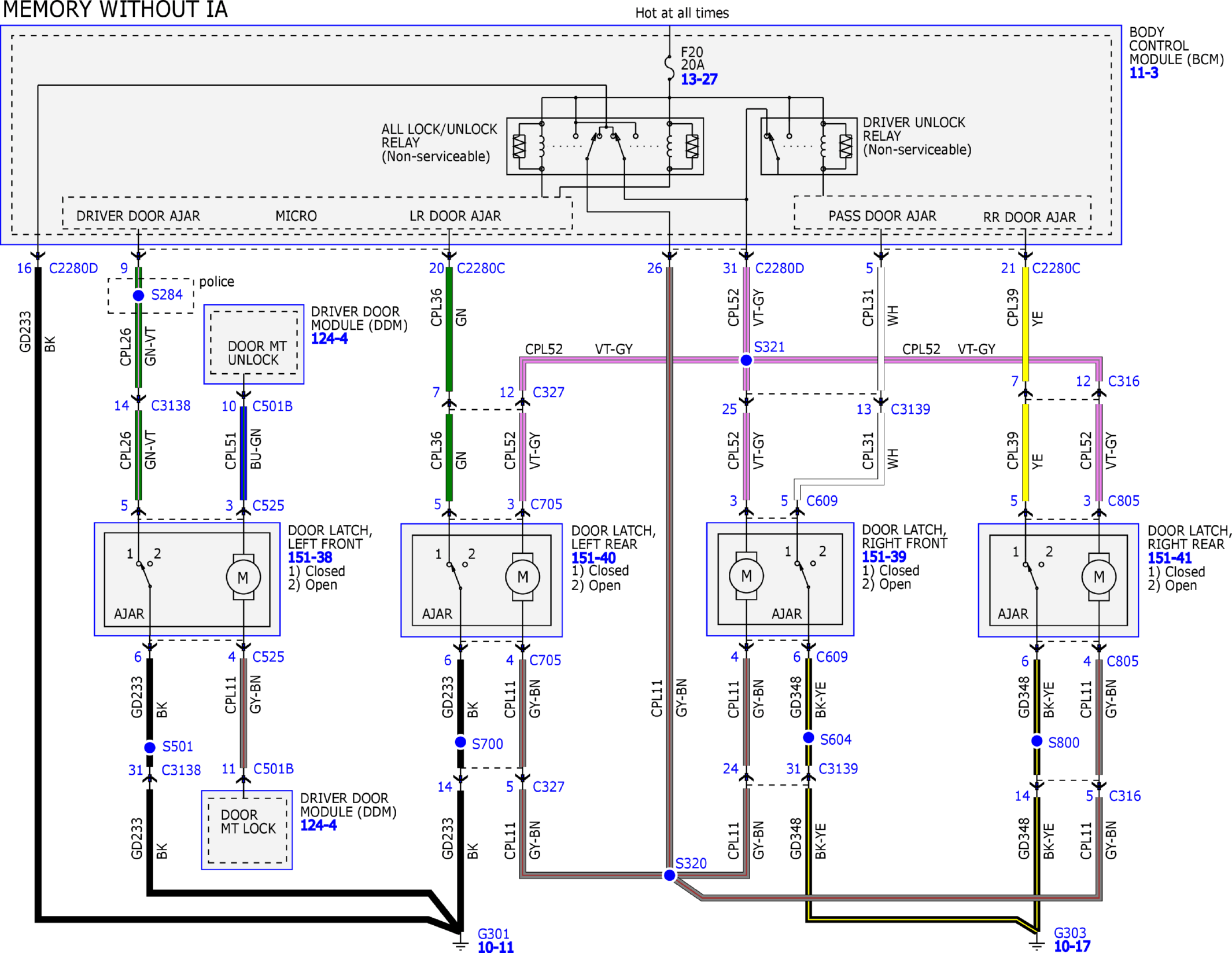

Fig 6: Power Door Locks Wiring Diagram (6 of 11)
Courtesy of FORD MOTOR COMPANY

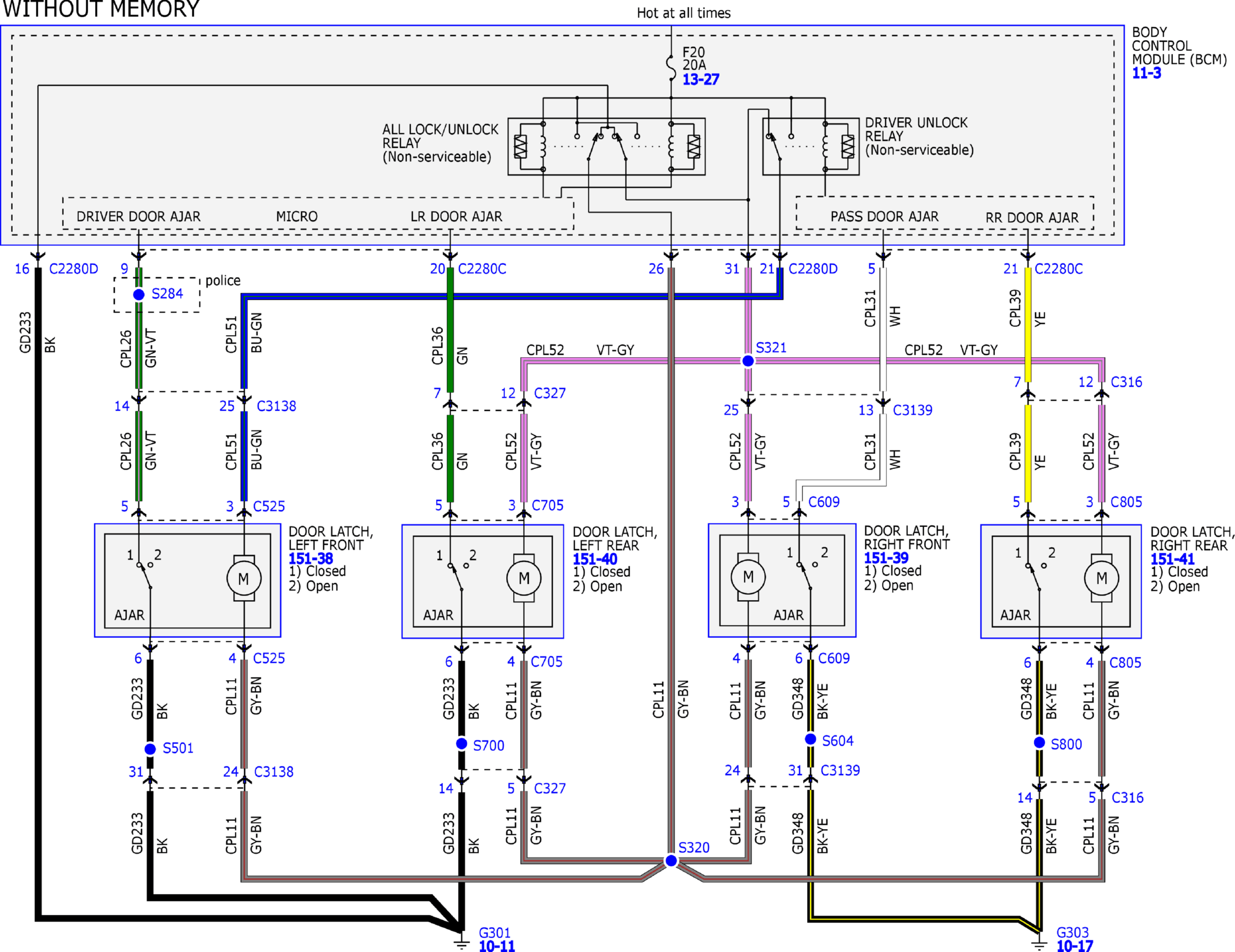

Fig 7: Power Door Locks Wiring Diagram (7 of 11)
Courtesy of FORD MOTOR COMPANY

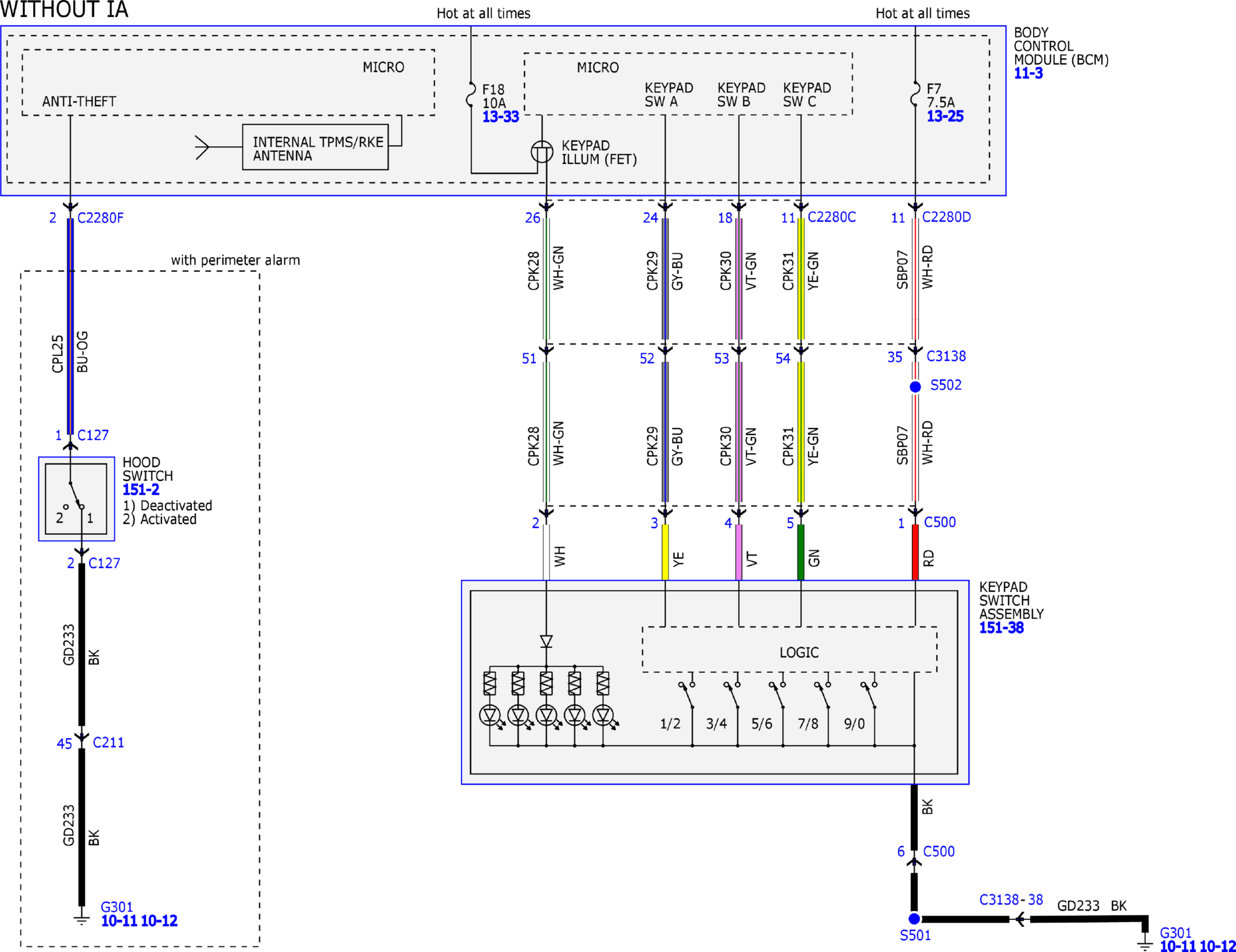

Fig 8: Power Door Locks Wiring Diagram (8 of 11)
Courtesy of FORD MOTOR COMPANY
Fig 9: Power Door Locks Wiring Diagram (9 of 11)
Courtesy of FORD MOTOR COMPANY
Fig 10: Power Door Locks Wiring Diagram (10 of 11)
Courtesy of FORD MOTOR COMPANY
Fig 11: Power Door Locks Wiring Diagram (11 of 11)
