Parking Aid

WARNING: This page is about a different car, the 2015 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

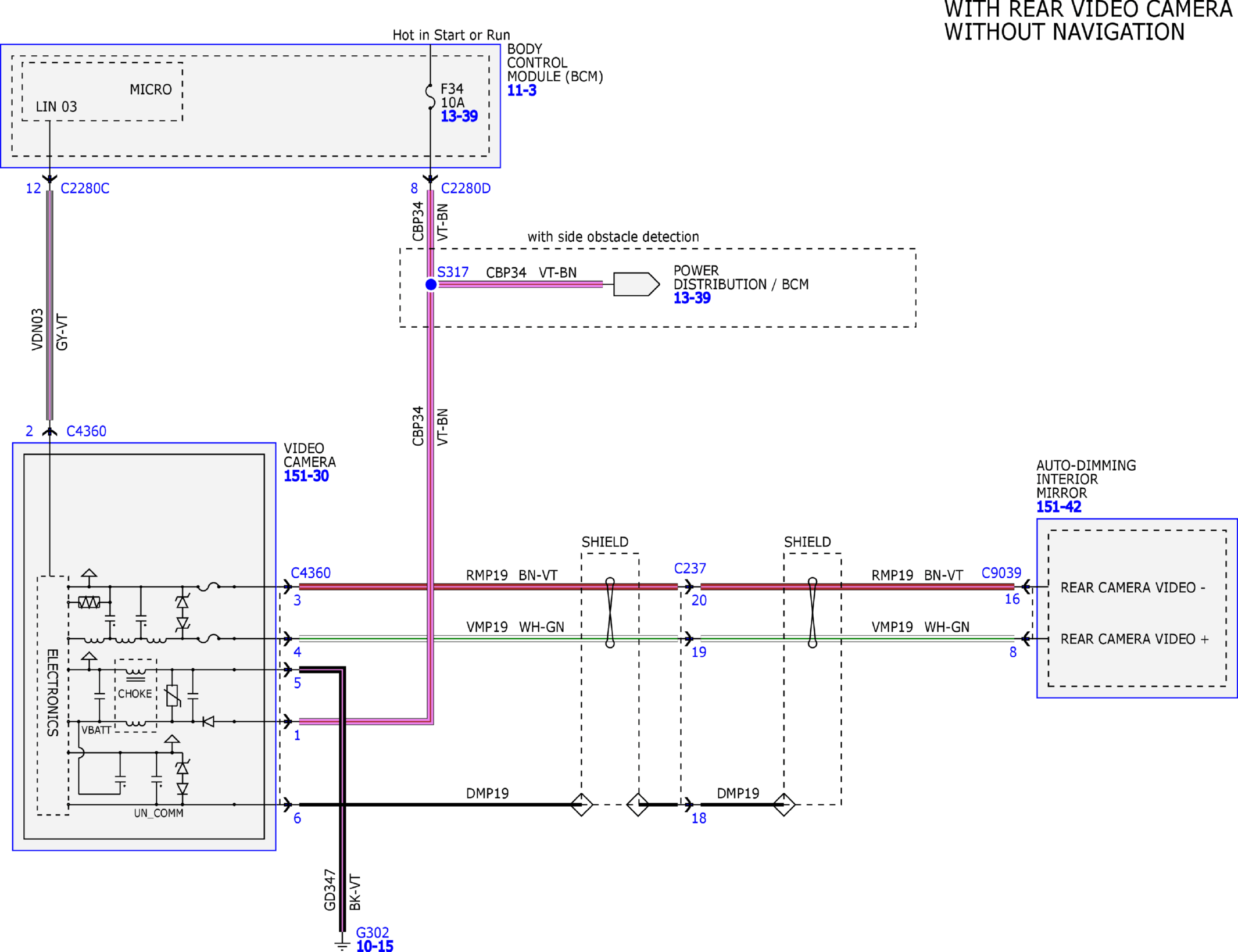

Fig 1: Parking Aid Wiring Diagram (1 of 6)

Courtesy of FORD MOTOR COMPANY

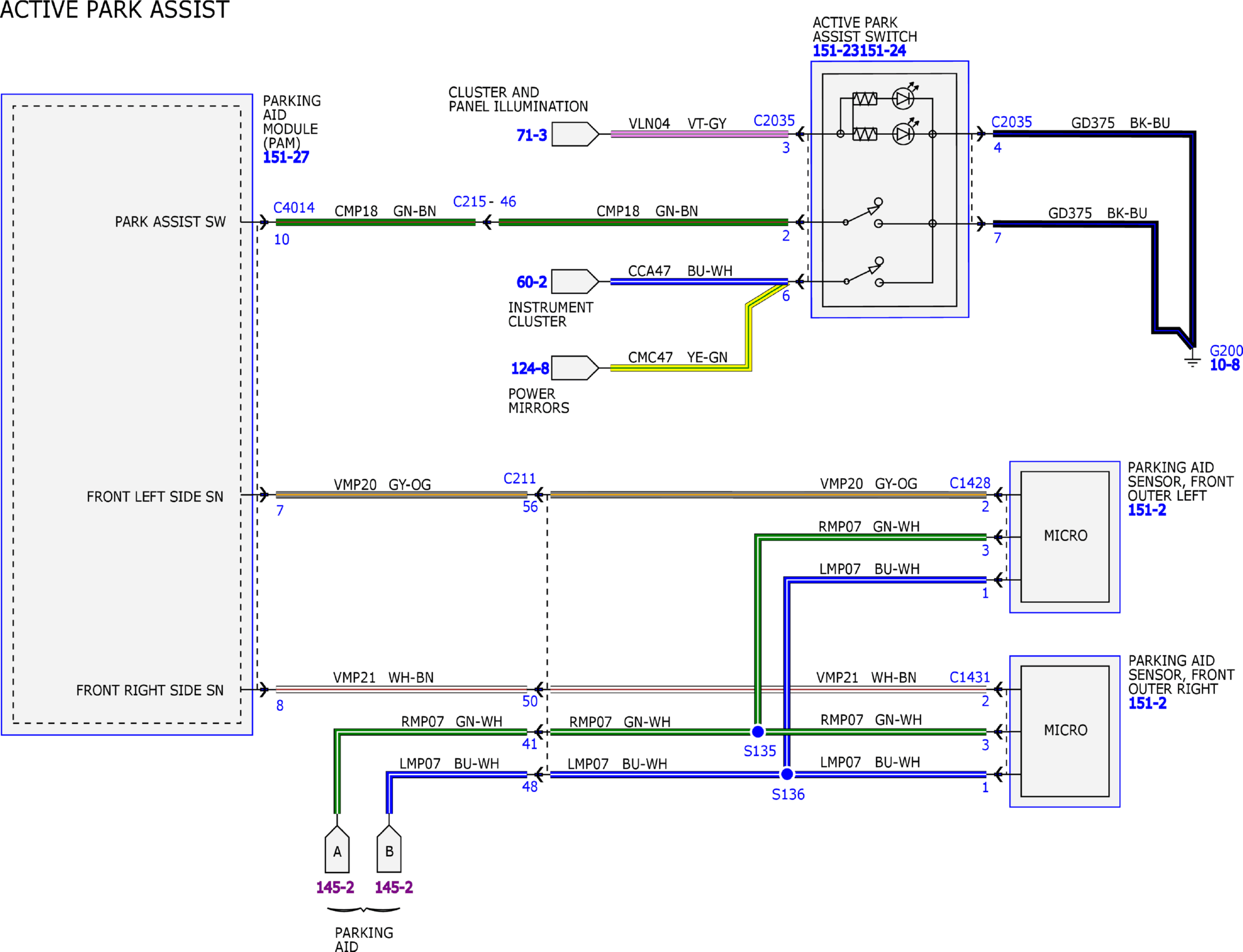

Fig 2: Parking Aid Wiring Diagram (2 of 6)

Courtesy of FORD MOTOR COMPANY

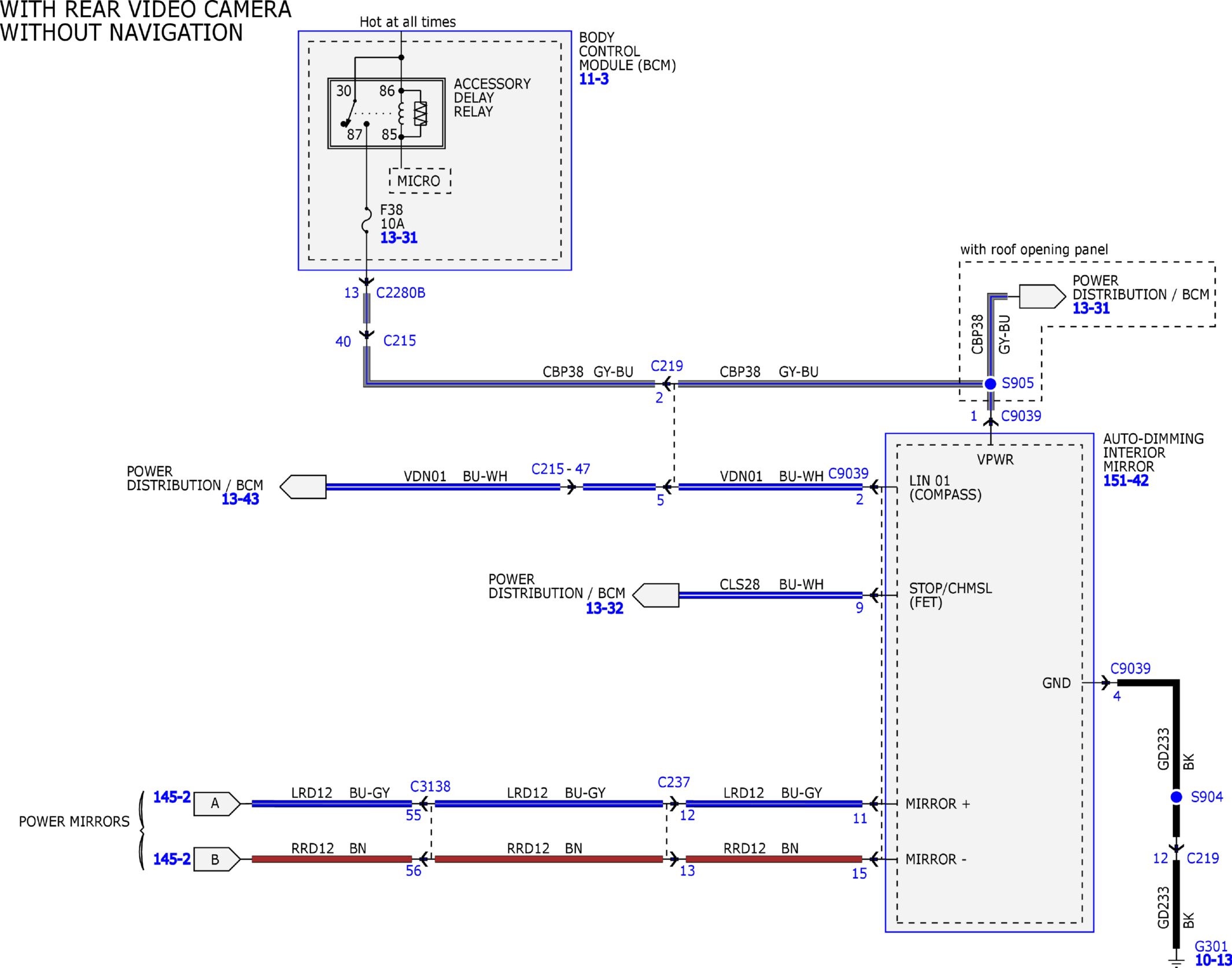

Fig 3: Parking Aid Wiring Diagram (3 of 6)

Courtesy of FORD MOTOR COMPANY

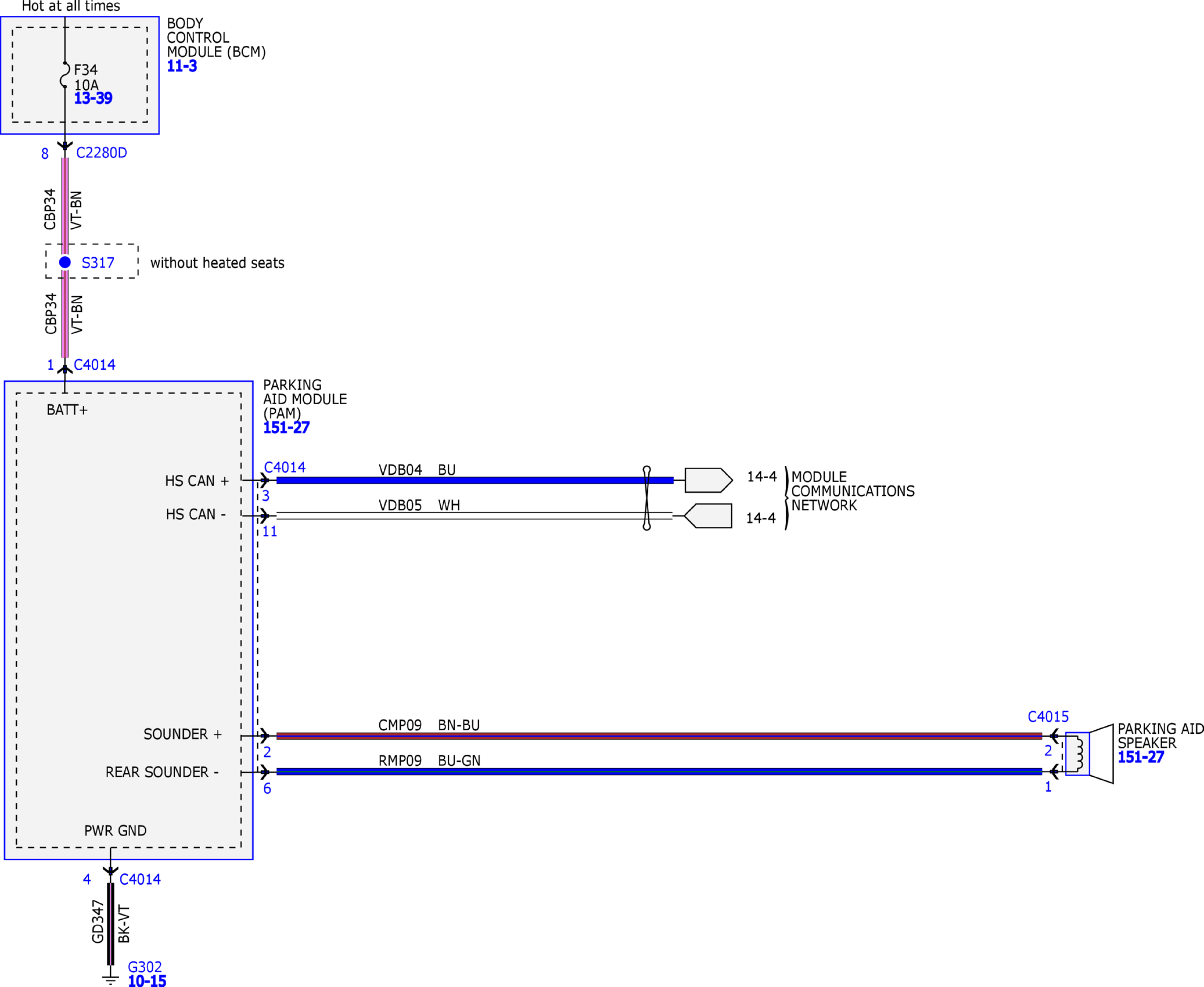

Fig 4: Parking Aid Wiring Diagram (4 of 6)

Courtesy of FORD MOTOR COMPANY

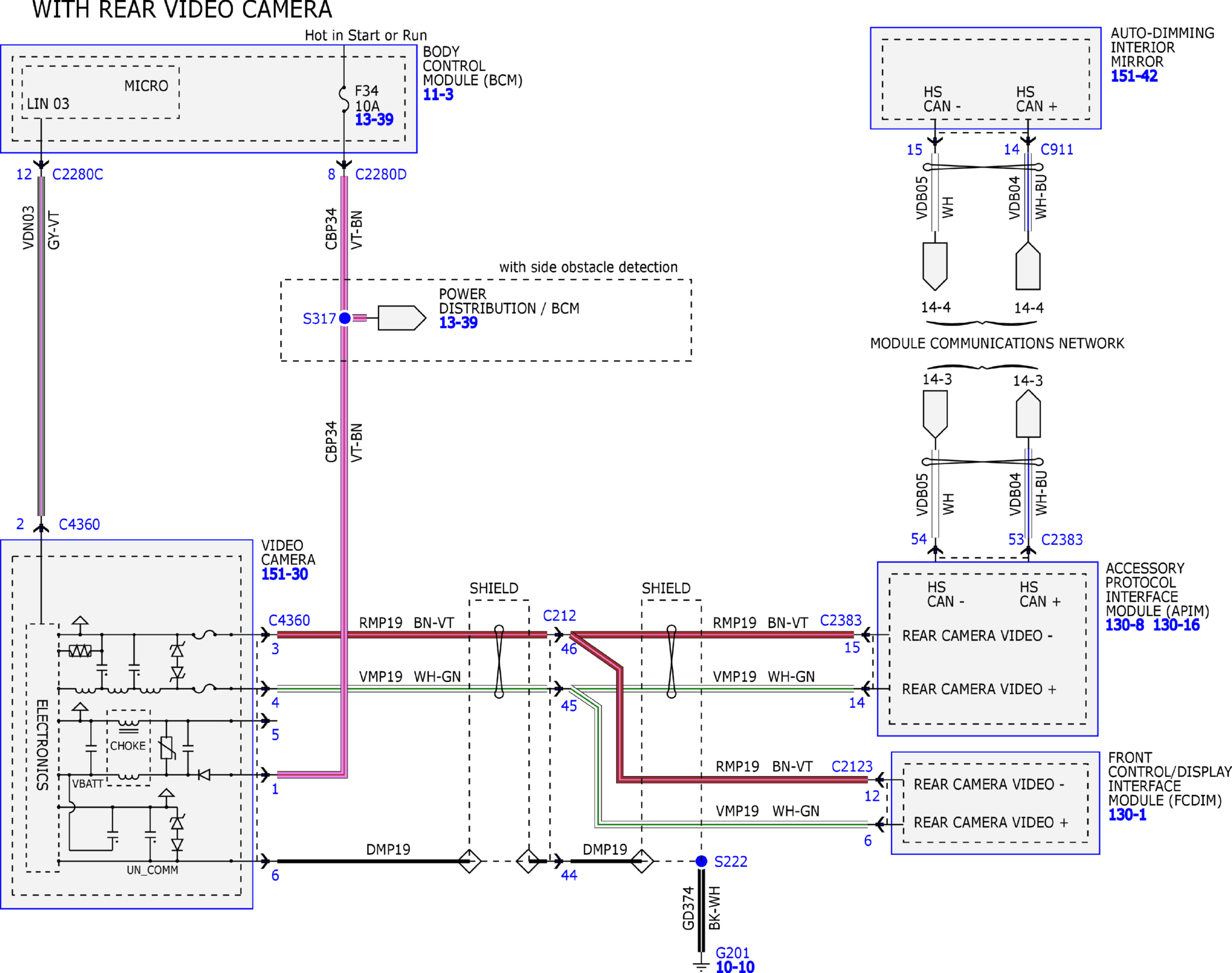

Fig 5: Parking Aid Wiring Diagram (5 of 6)

Courtesy of FORD MOTOR COMPANY

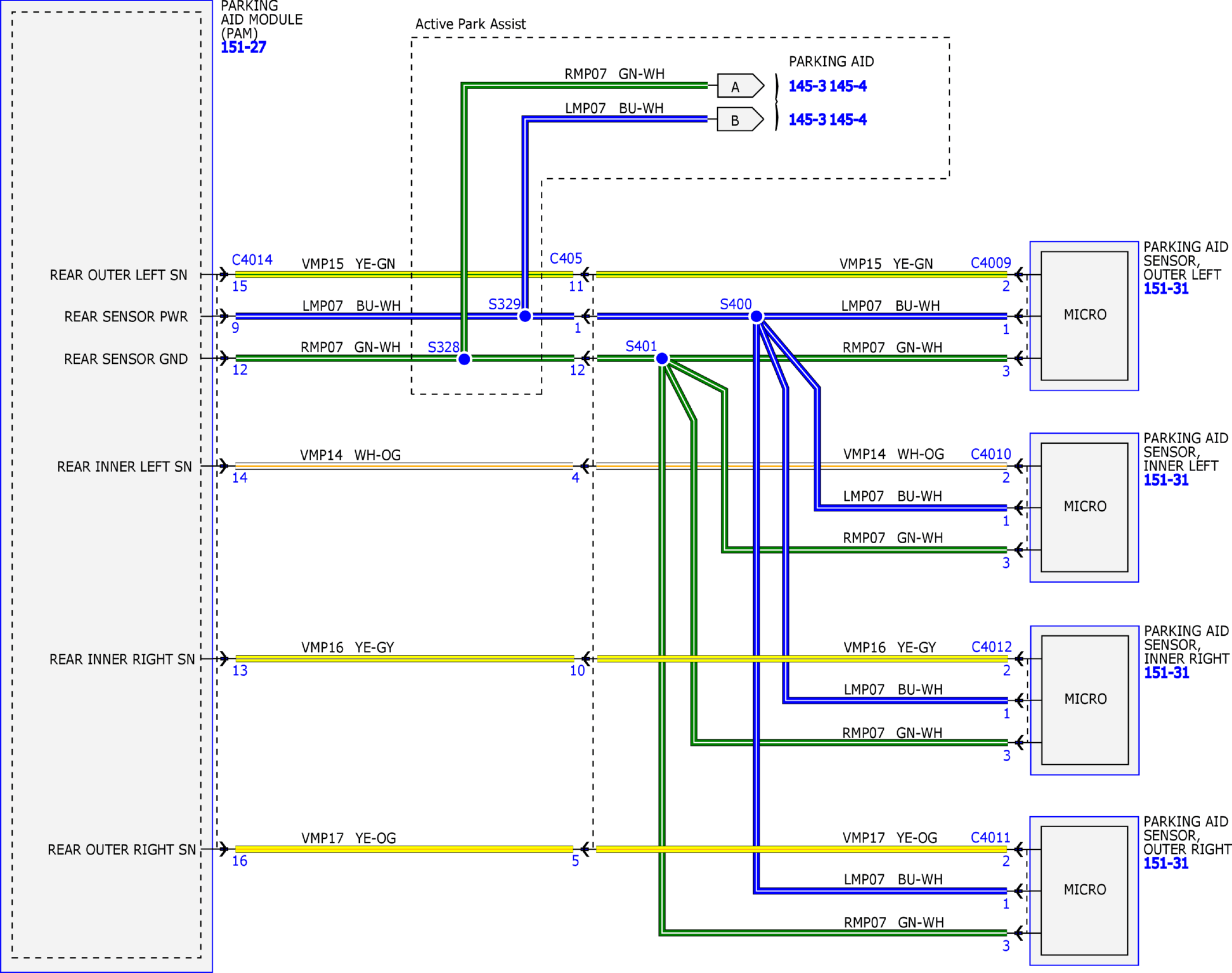

Fig 6: Parking Aid Wiring Diagram (6 of 6)

Courtesy of FORD MOTOR COMPANY
