Heated Window

WARNING: This page is about a different car, the 2015 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

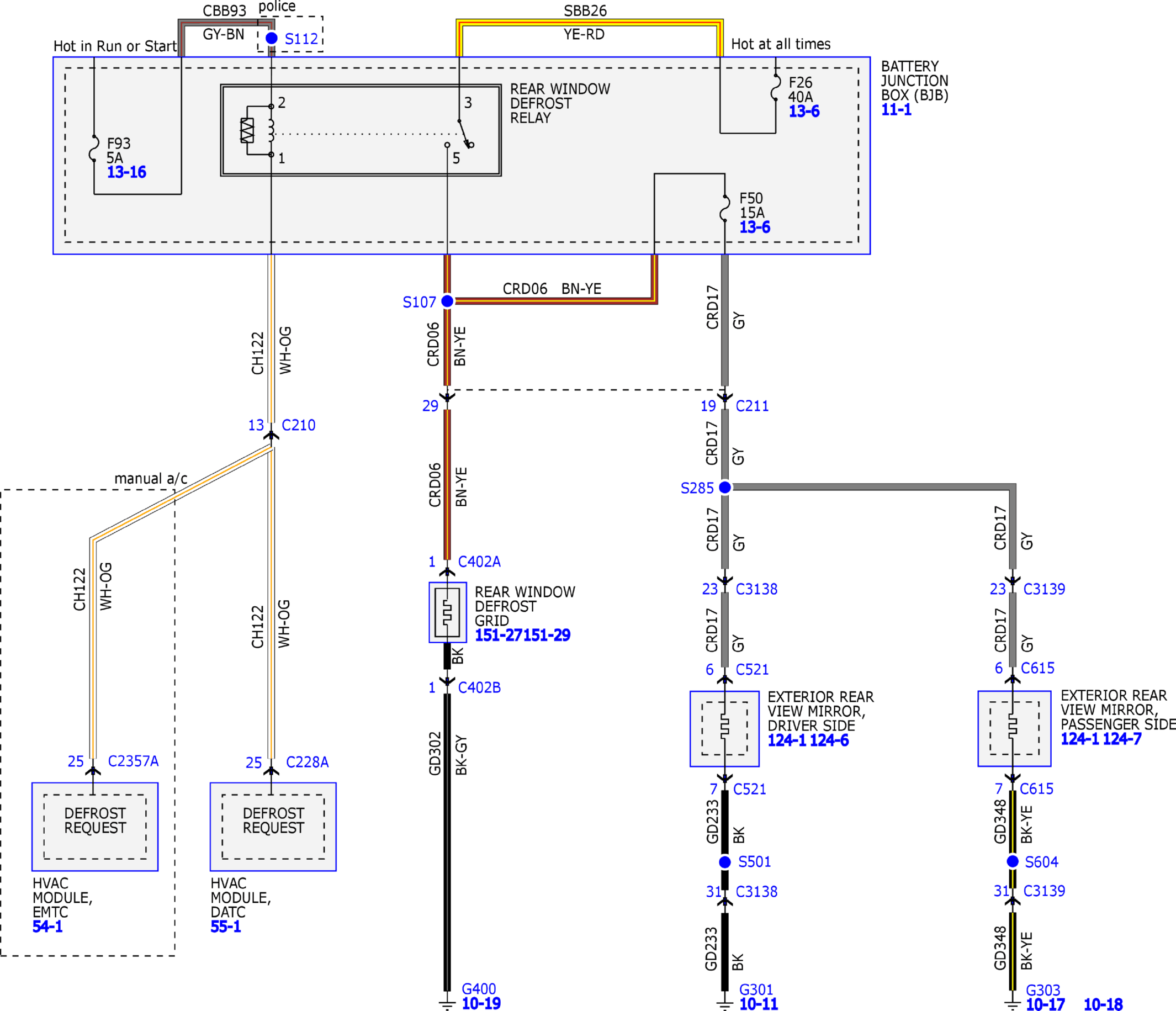

Fig 1: Heated Window Wiring Diagram
GFDW32843Courtesy of FORD MOTOR COMPANY
