Electronic Engine Controls - 2.0L GTDI

WARNING: This page is about a different car, the 2015 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

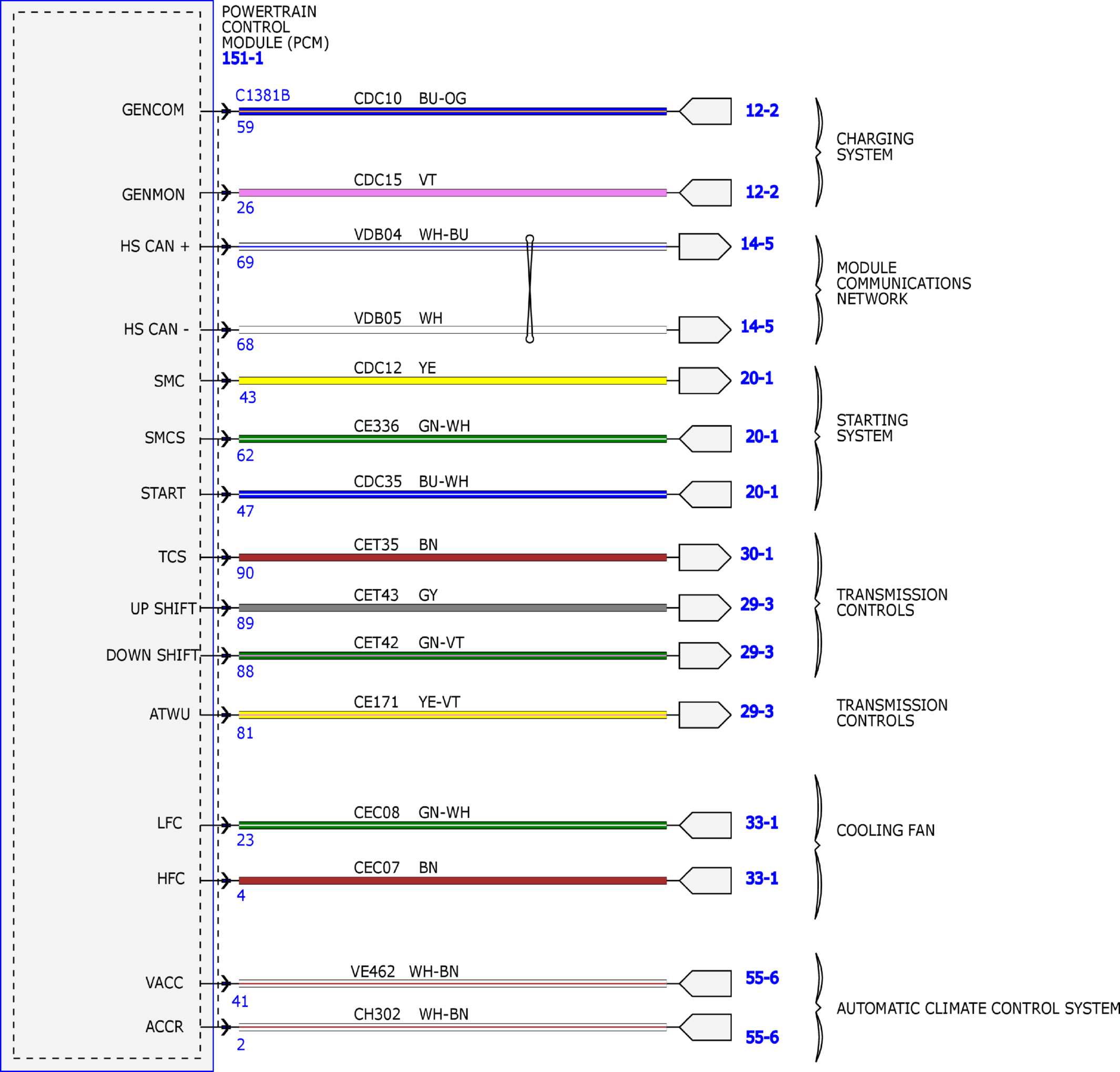

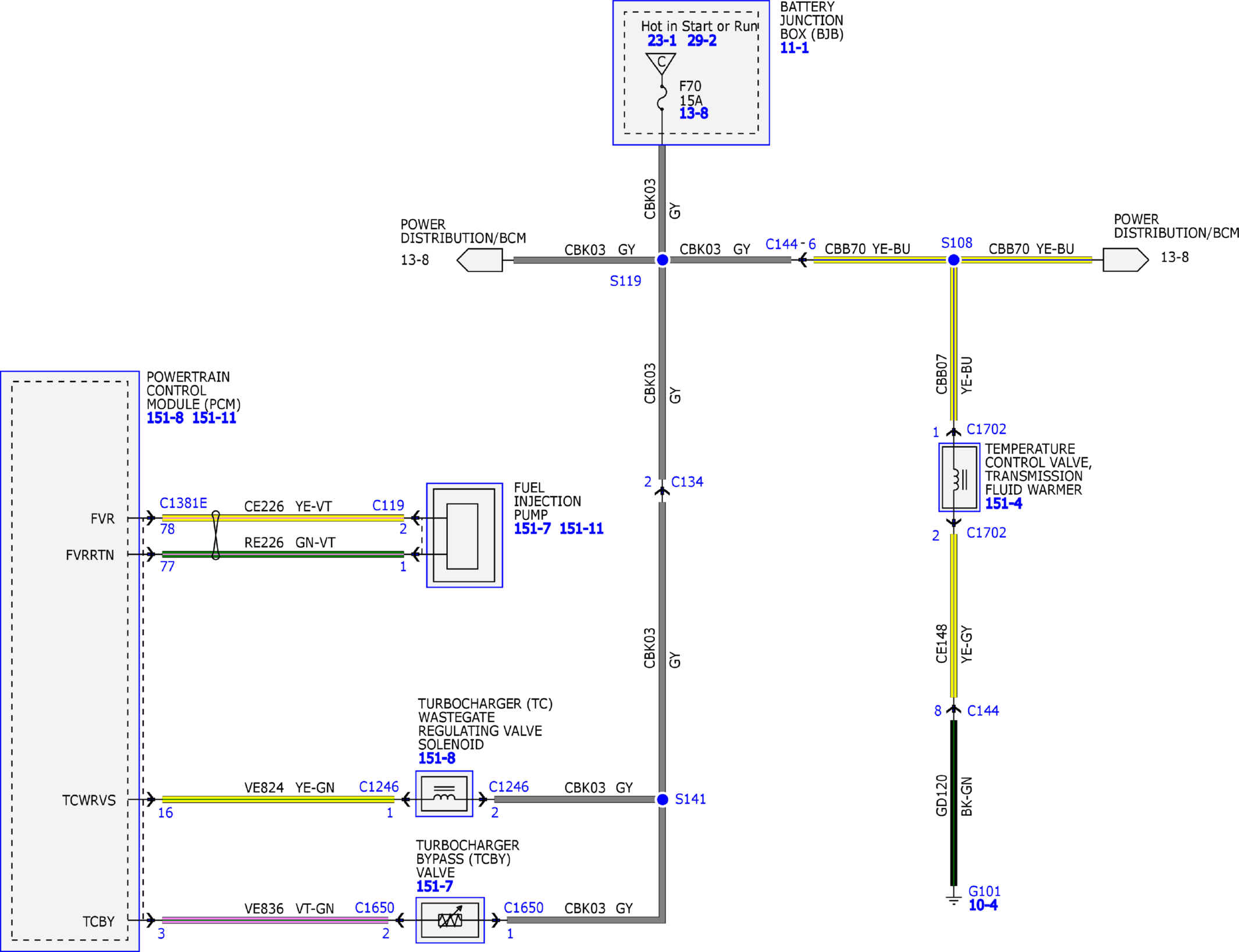

Fig 1: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (1 of 12)

Courtesy of FORD MOTOR COMPANY

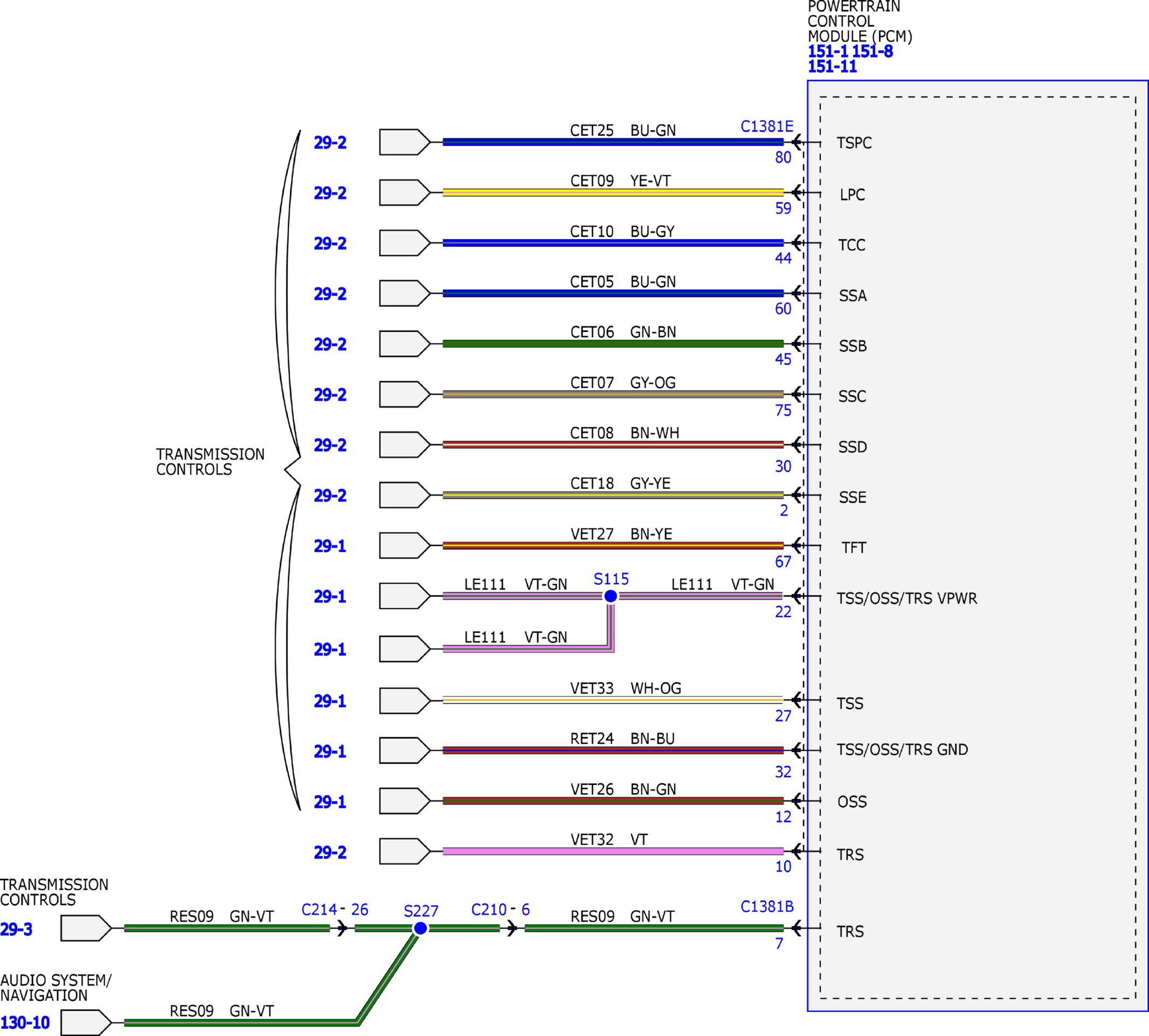

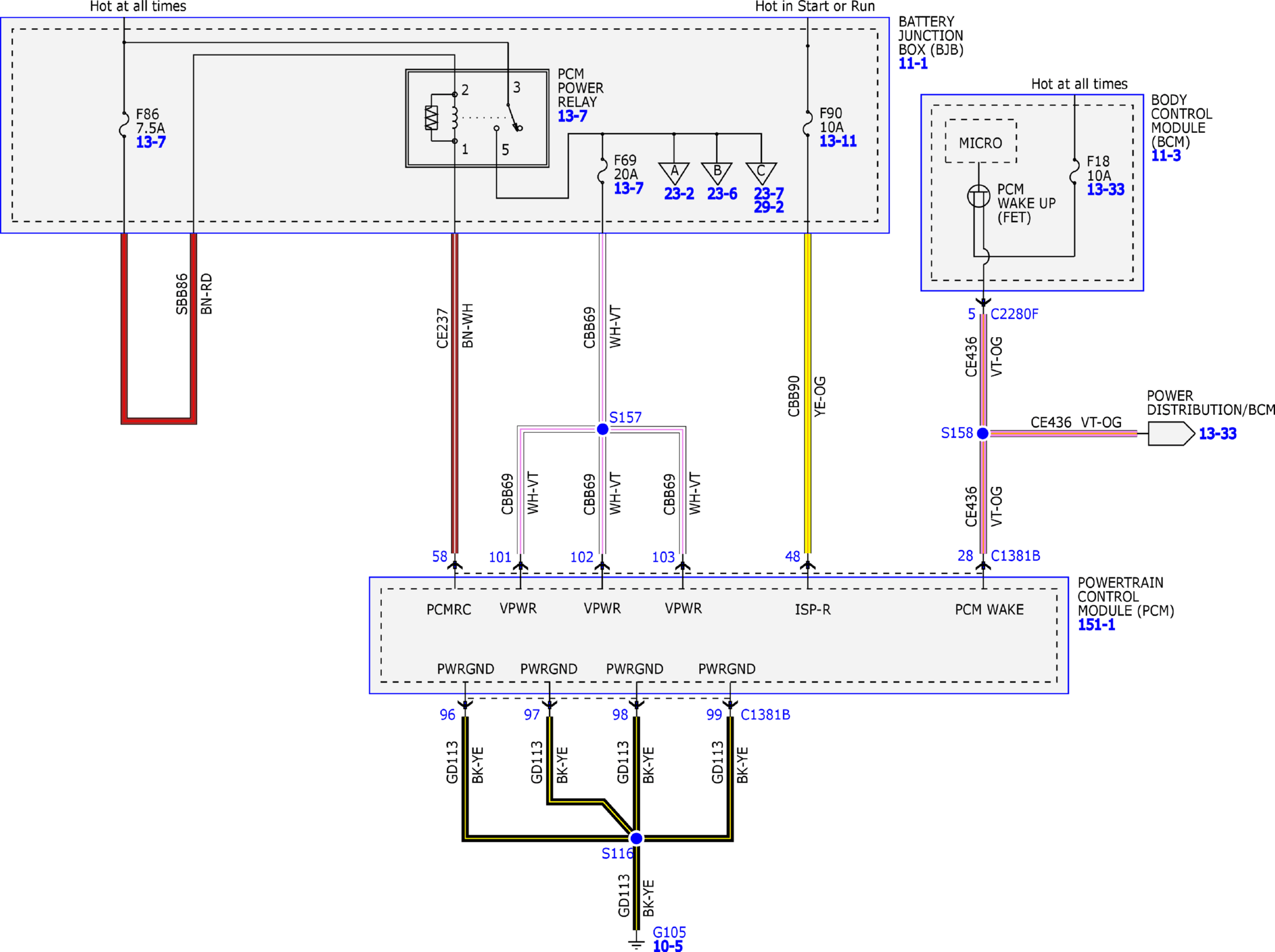

Fig 2: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (2 of 12)

Courtesy of FORD MOTOR COMPANY

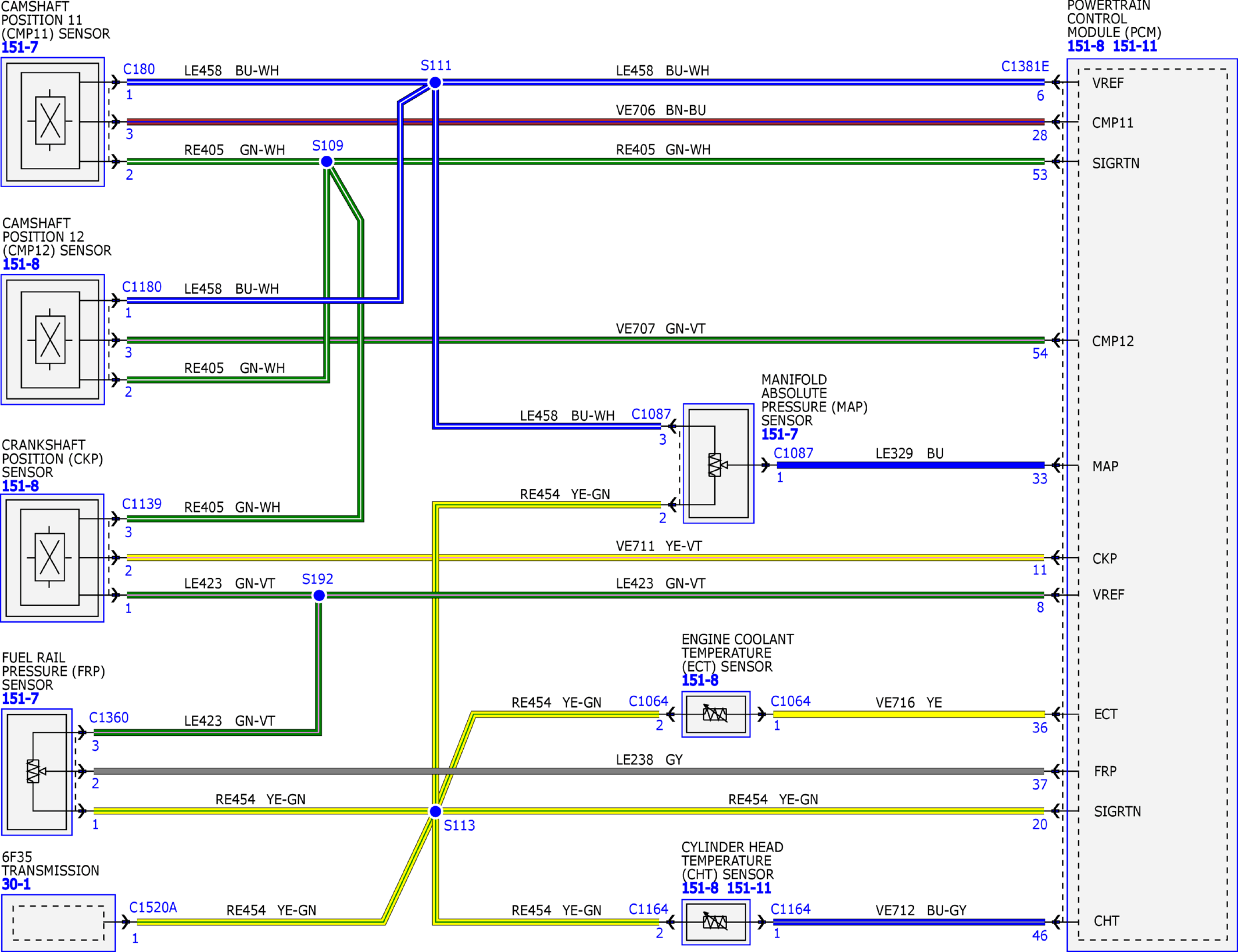

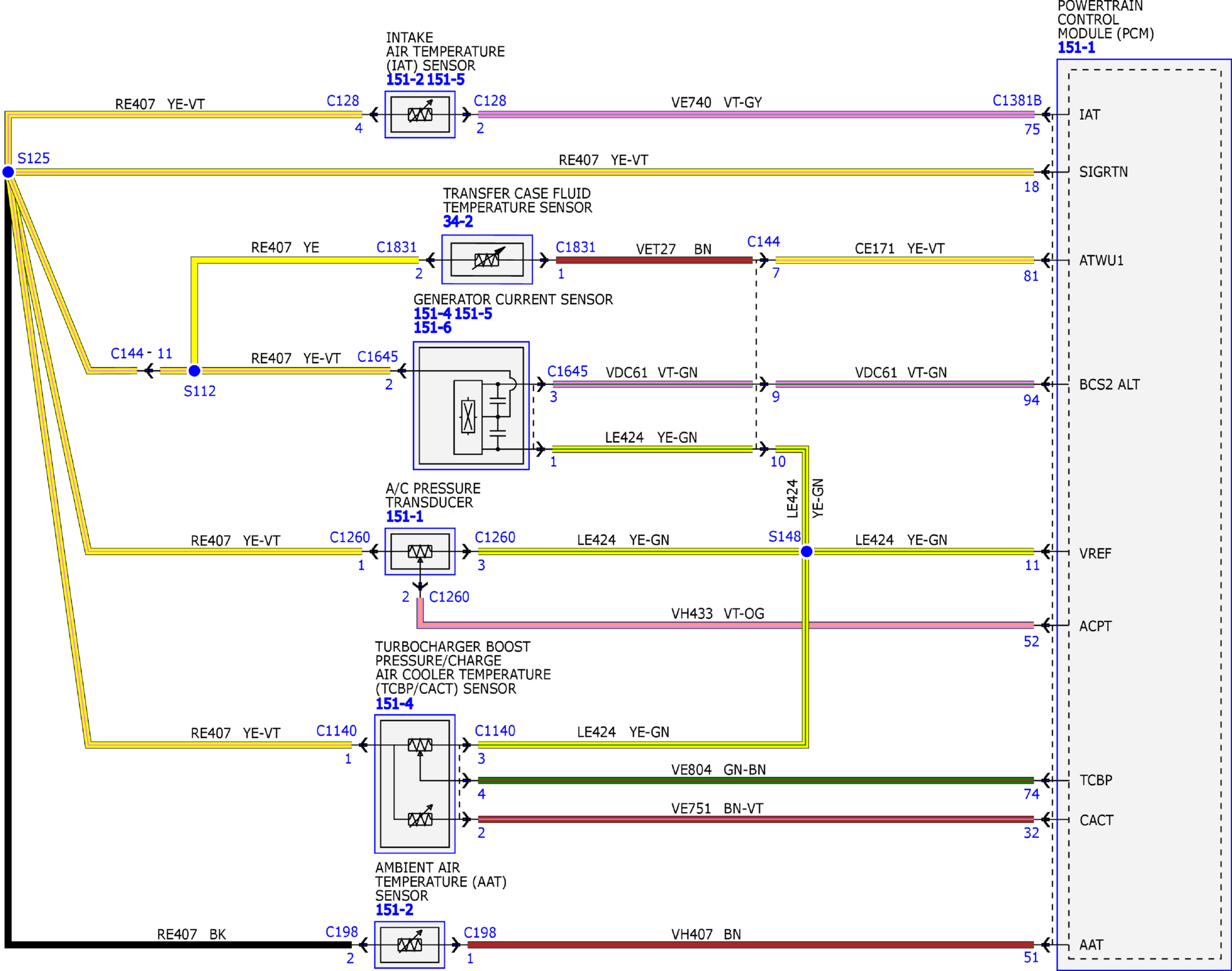

Fig 3: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (3 of 12)

Courtesy of FORD MOTOR COMPANY

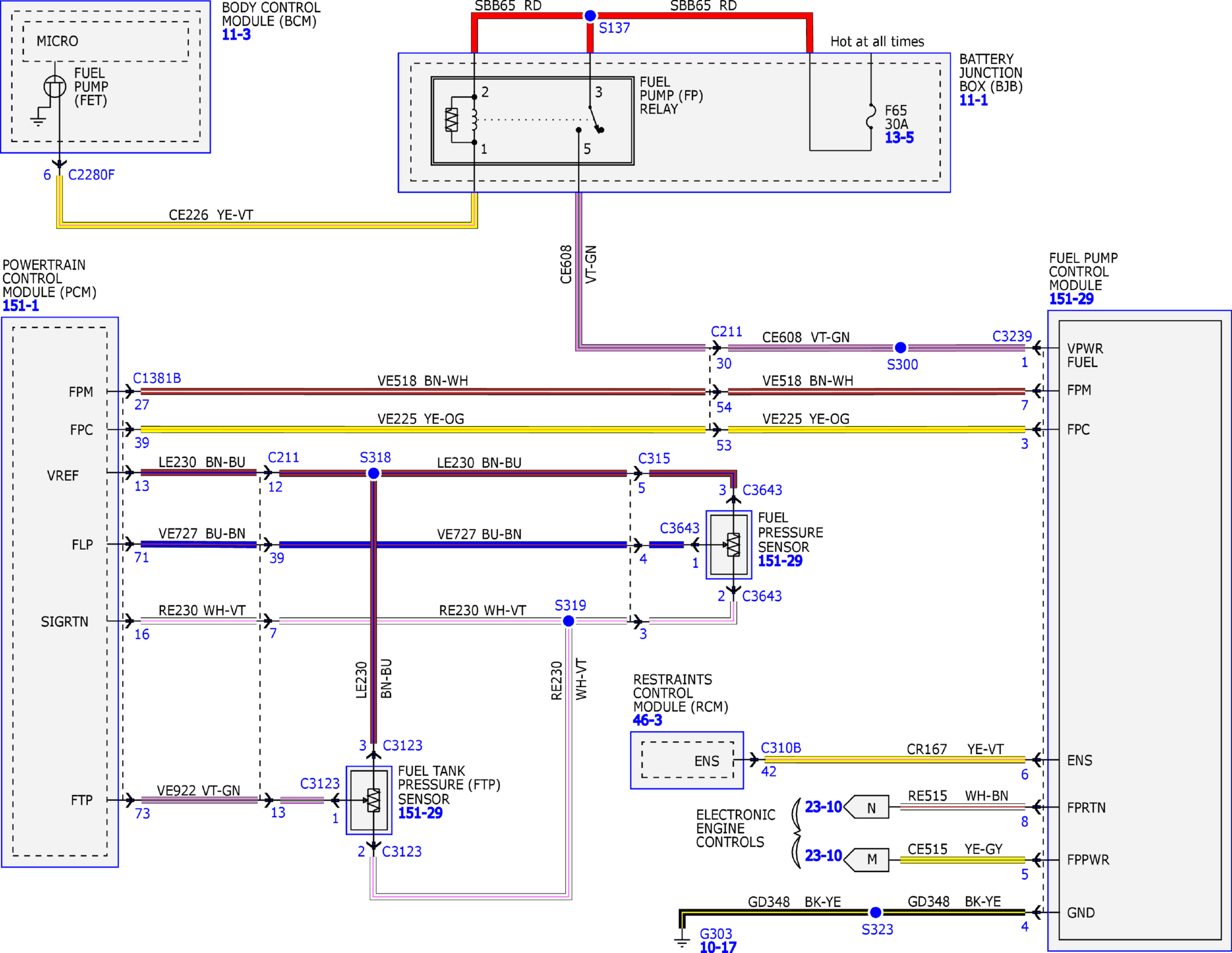

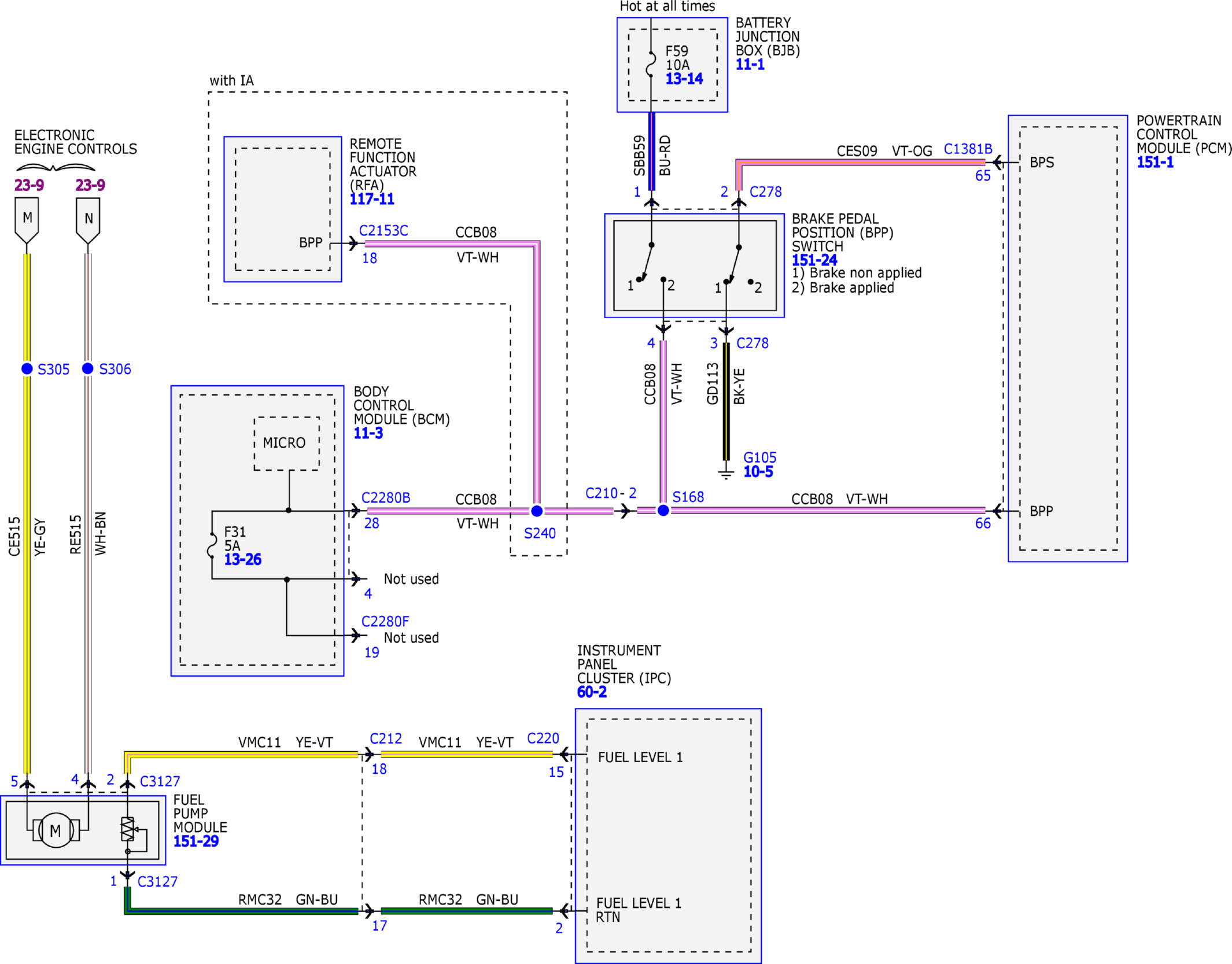

Fig 4: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (4 of 12)

Courtesy of FORD MOTOR COMPANY

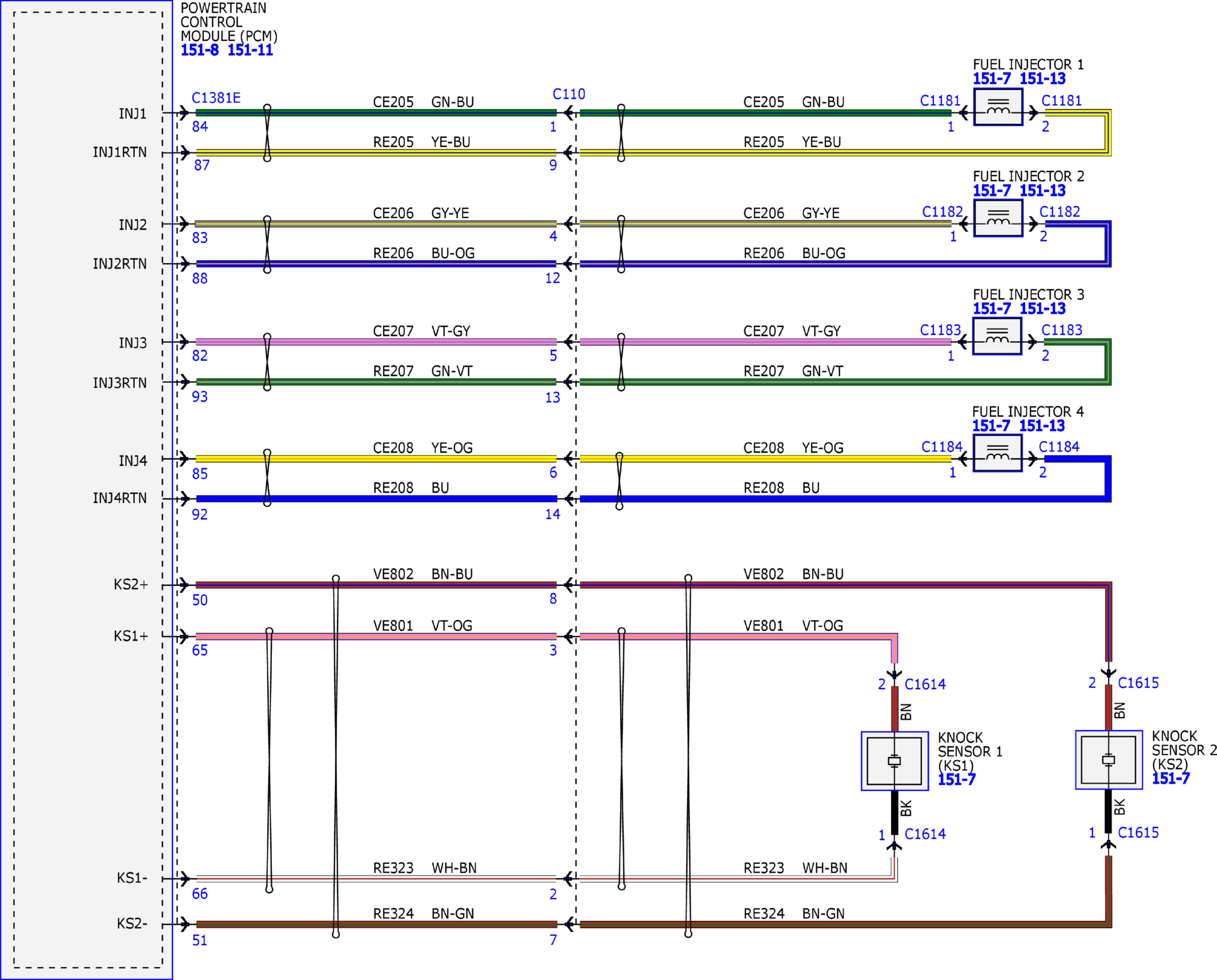

Fig 5: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (5 of 12)

Courtesy of FORD MOTOR COMPANY

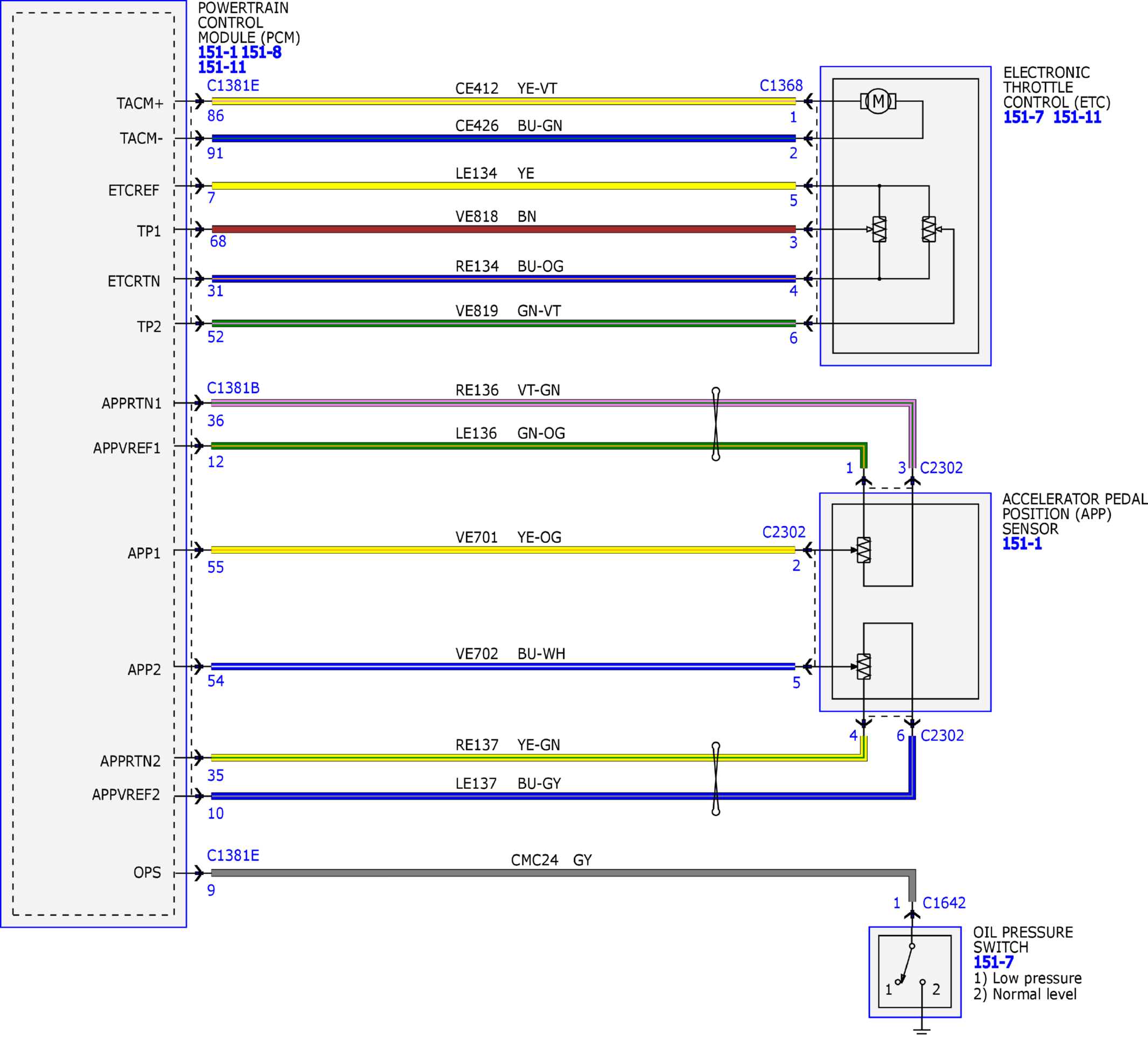

Fig 6: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (6 of 12)

Courtesy of FORD MOTOR COMPANY

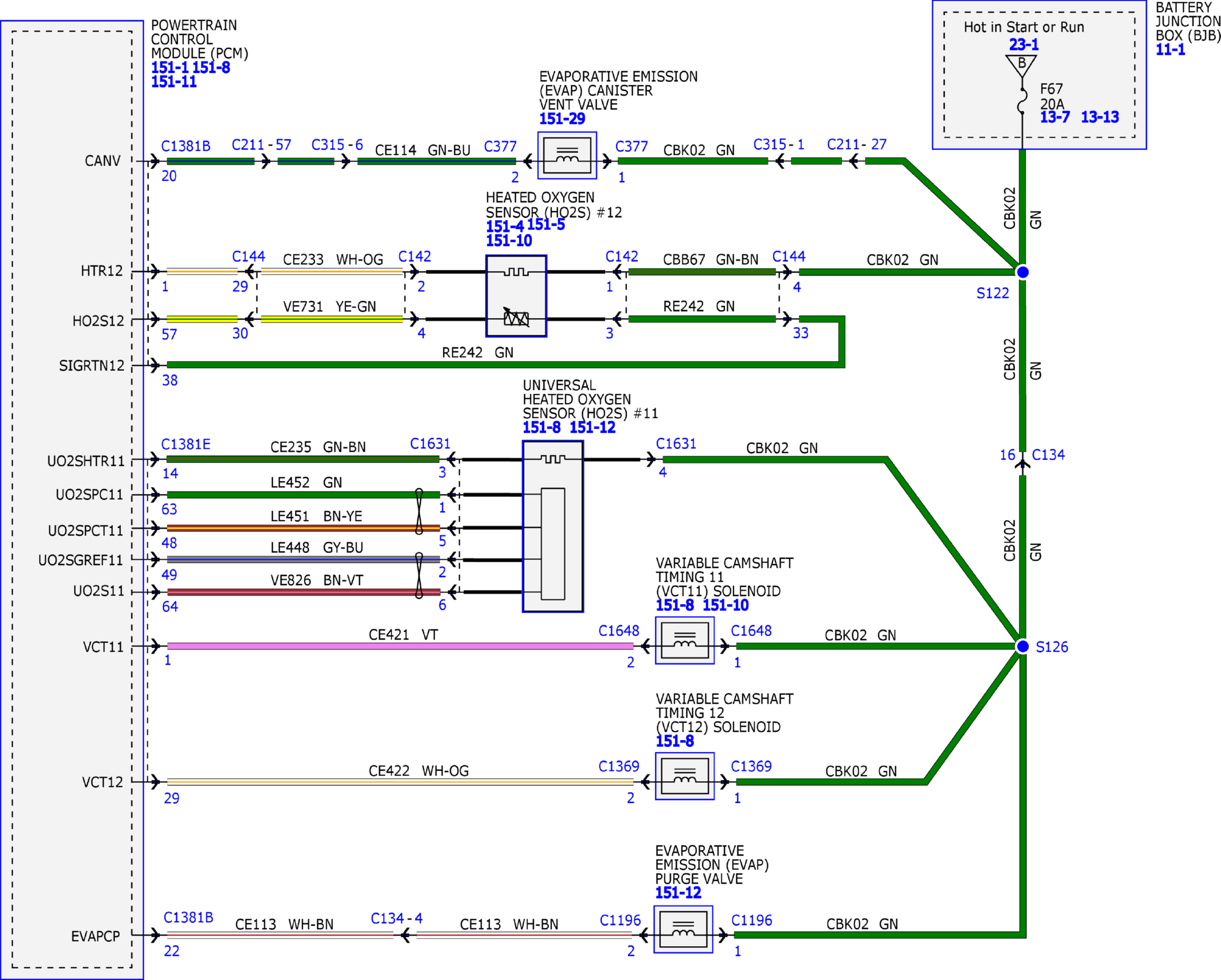

Fig 7: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (7 of 12)

Courtesy of FORD MOTOR COMPANY

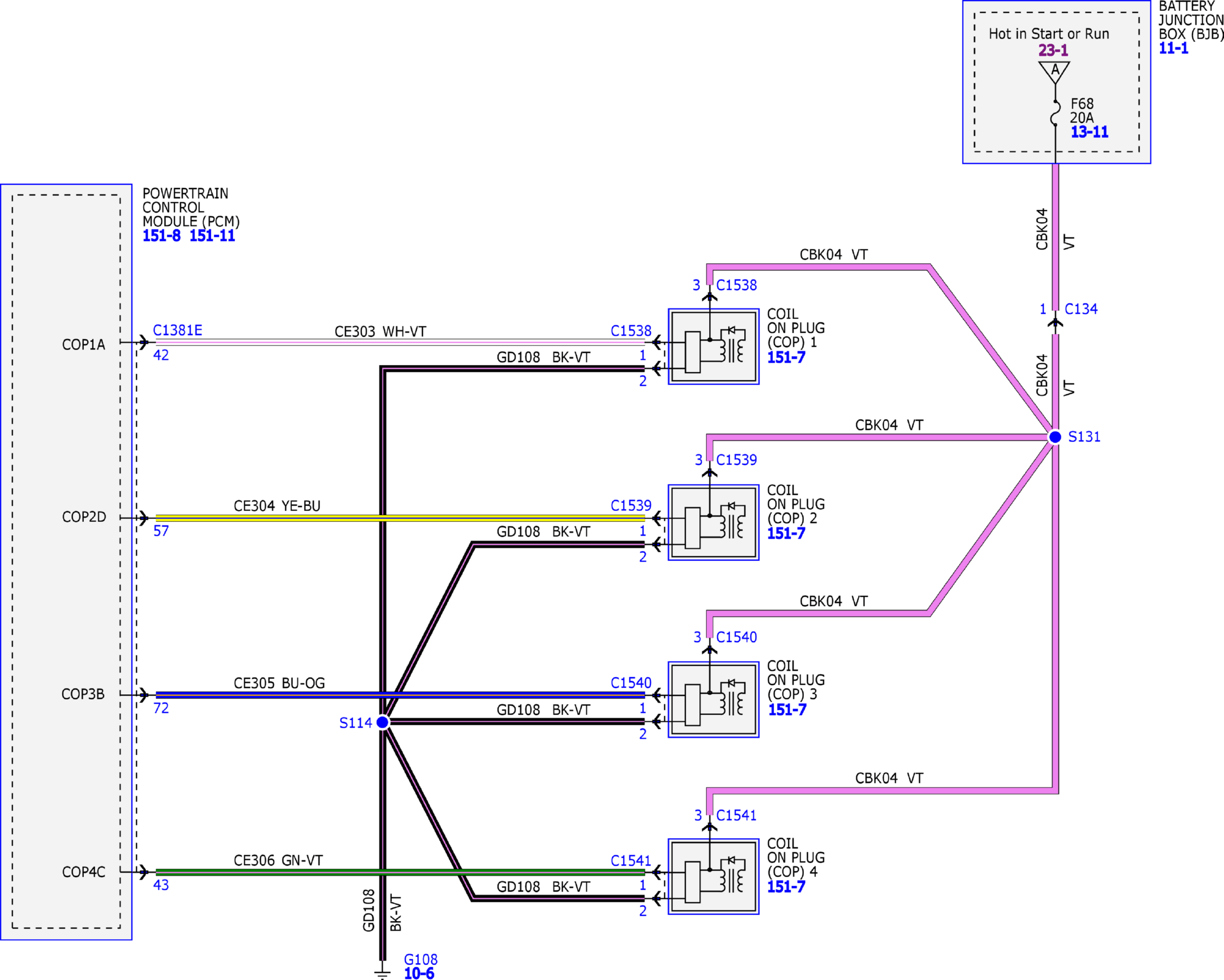

Fig 8: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (8 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 9: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (9 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 10: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (10 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (11 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 12: Electronic Engine Controls - 2.0L GTDI Wiring Diagram (12 of 12)

Courtesy of FORD MOTOR COMPANY
