Cruise Control

WARNING: This page is about a different car, the 2015 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

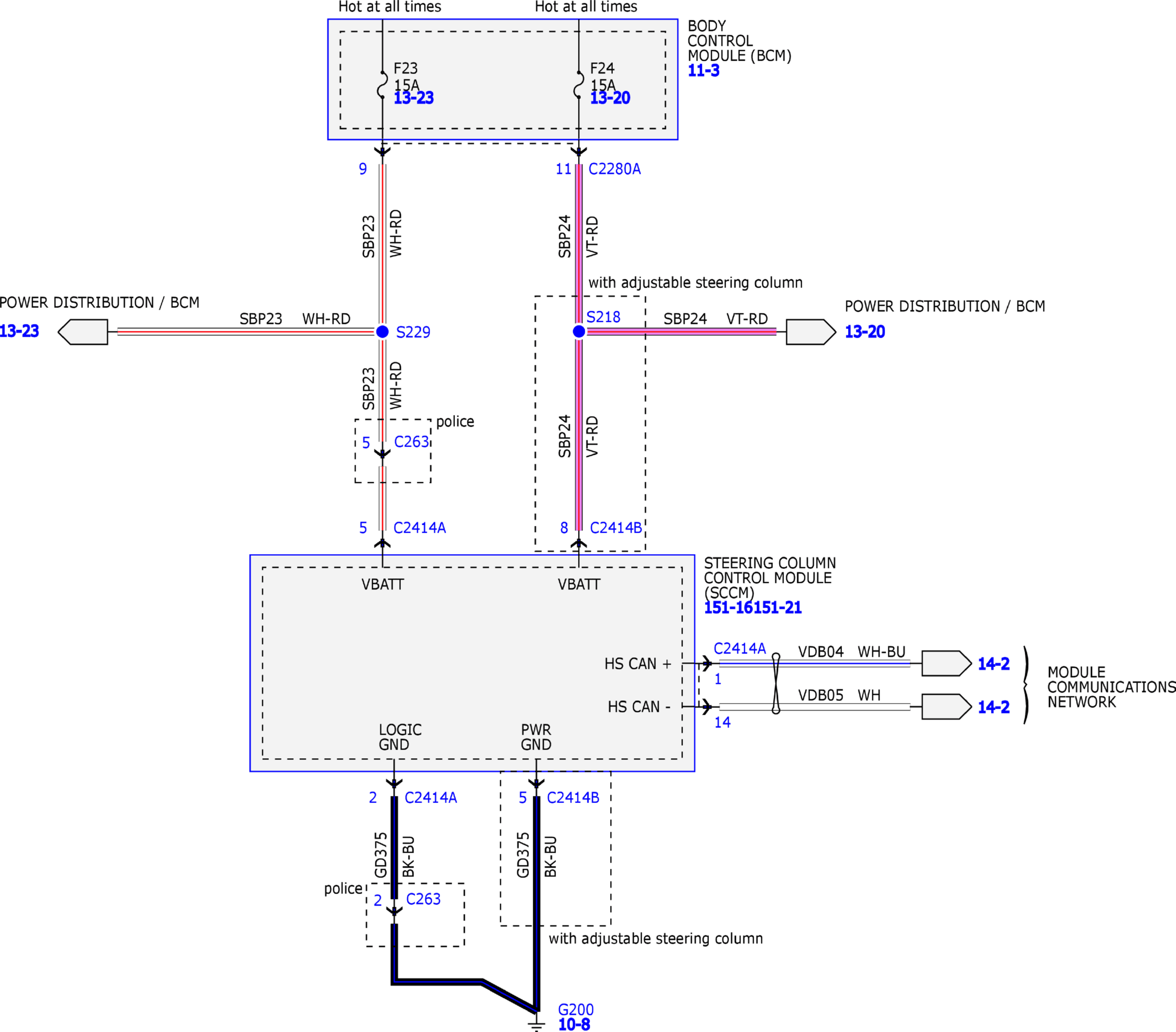

Fig 1: Cruise Control Wiring Diagram (1 of 7)

Courtesy of FORD MOTOR COMPANY

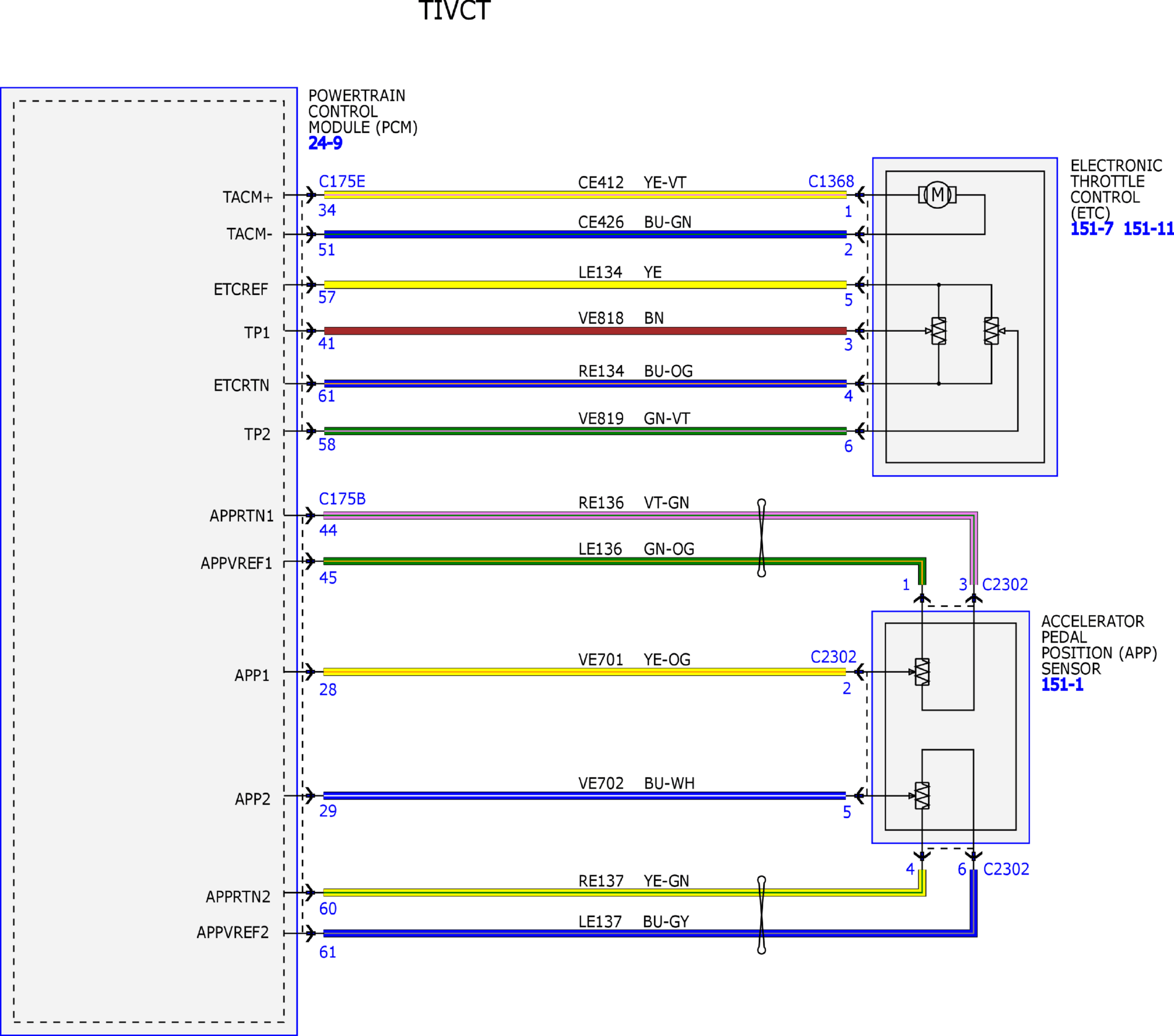

Fig 2: Cruise Control Wiring Diagram (2 of 7)

Courtesy of FORD MOTOR COMPANY

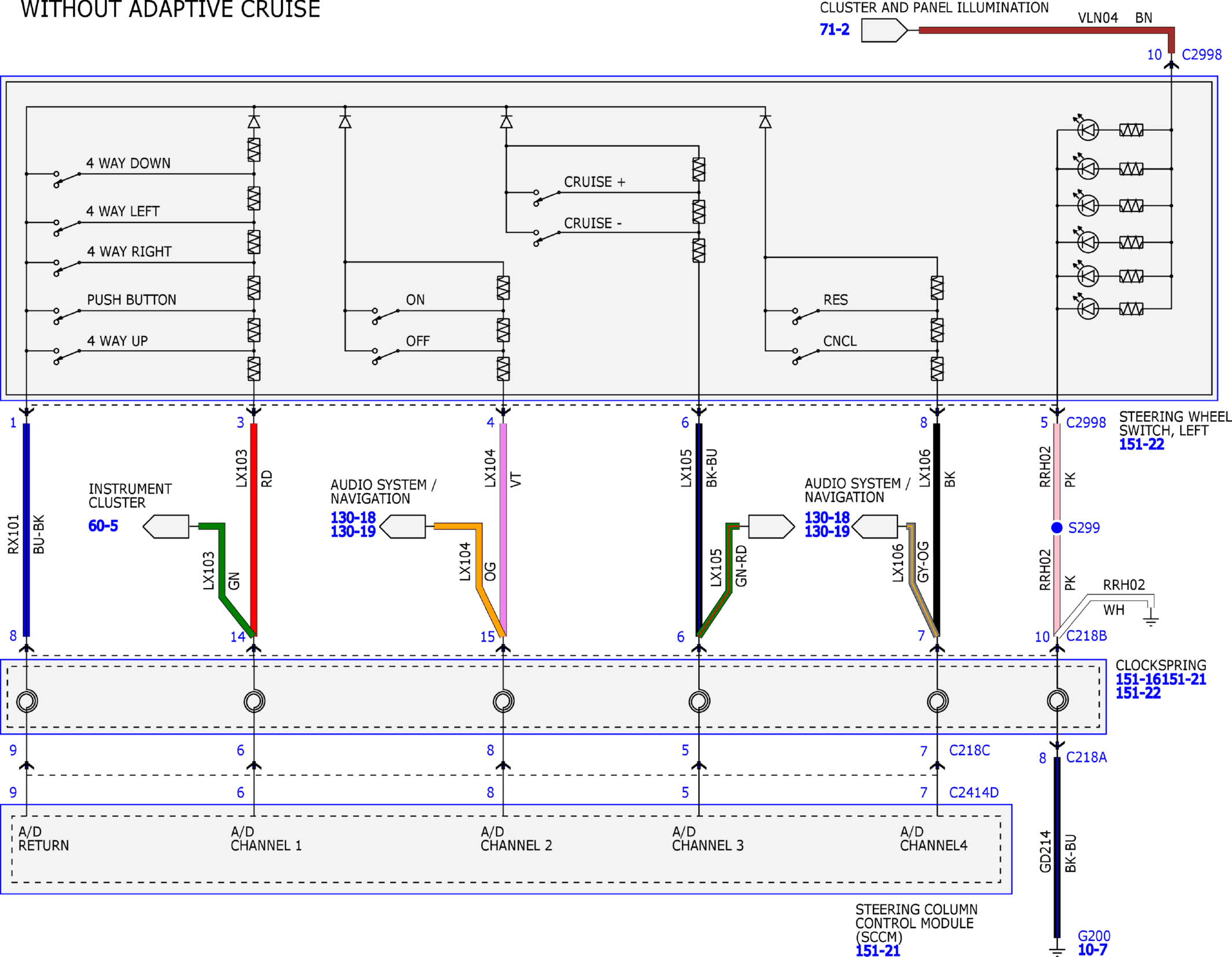

Fig 3: Cruise Control Wiring Diagram (3 of 7)

Courtesy of FORD MOTOR COMPANY

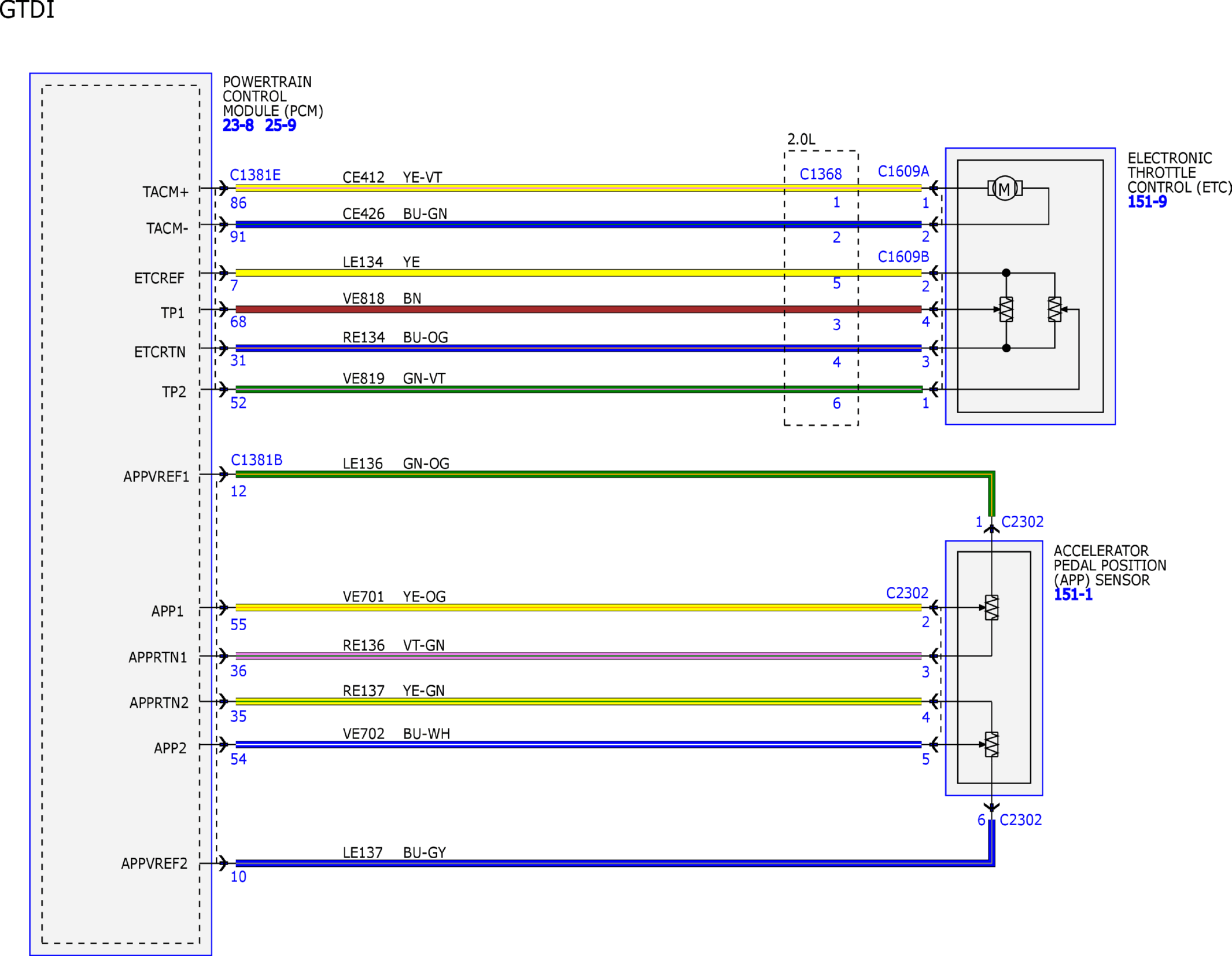

Fig 4: Cruise Control Wiring Diagram (4 of 7)

Courtesy of FORD MOTOR COMPANY

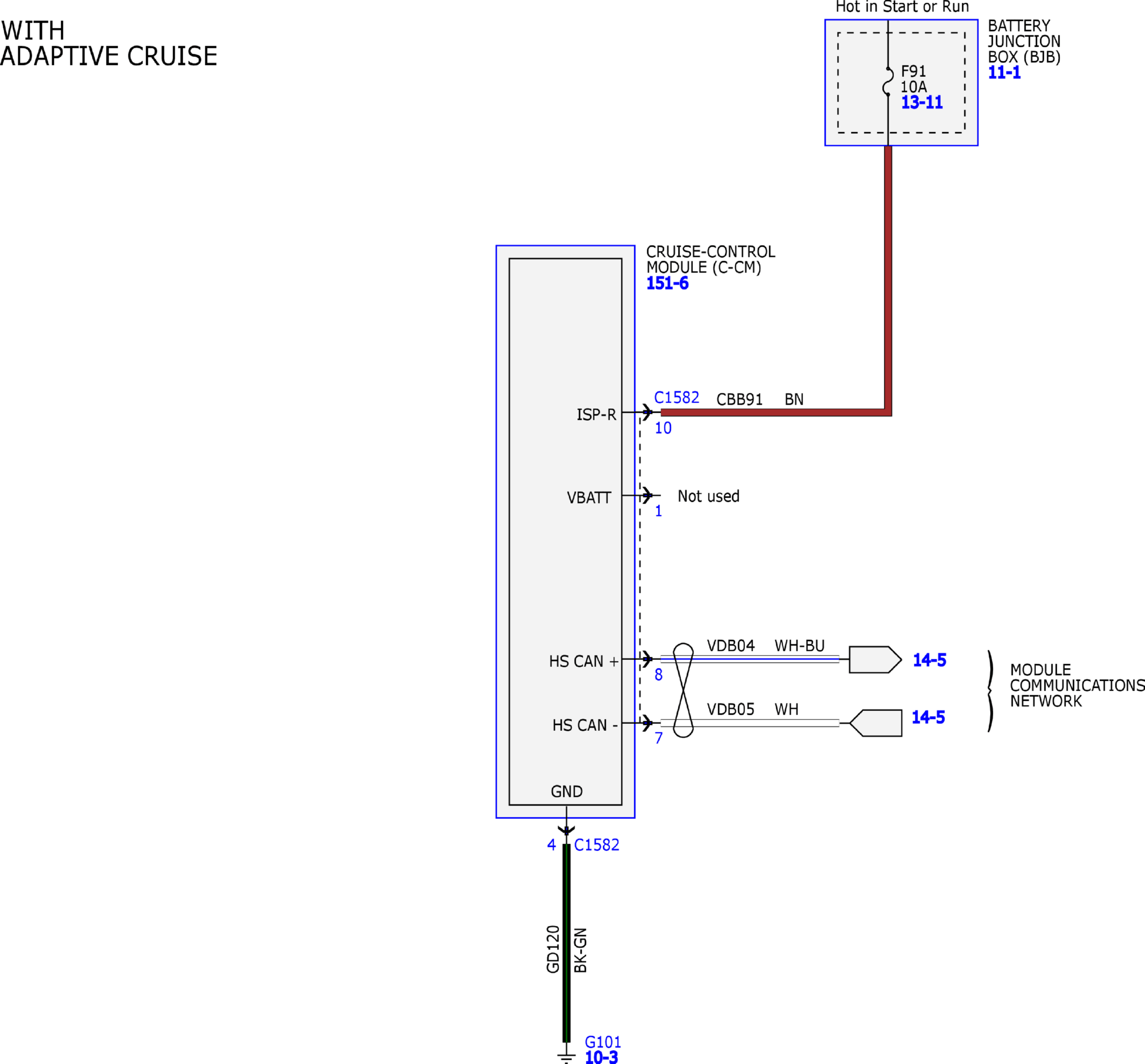

Fig 5: Cruise Control Wiring Diagram (5 of 7)

Courtesy of FORD MOTOR COMPANY

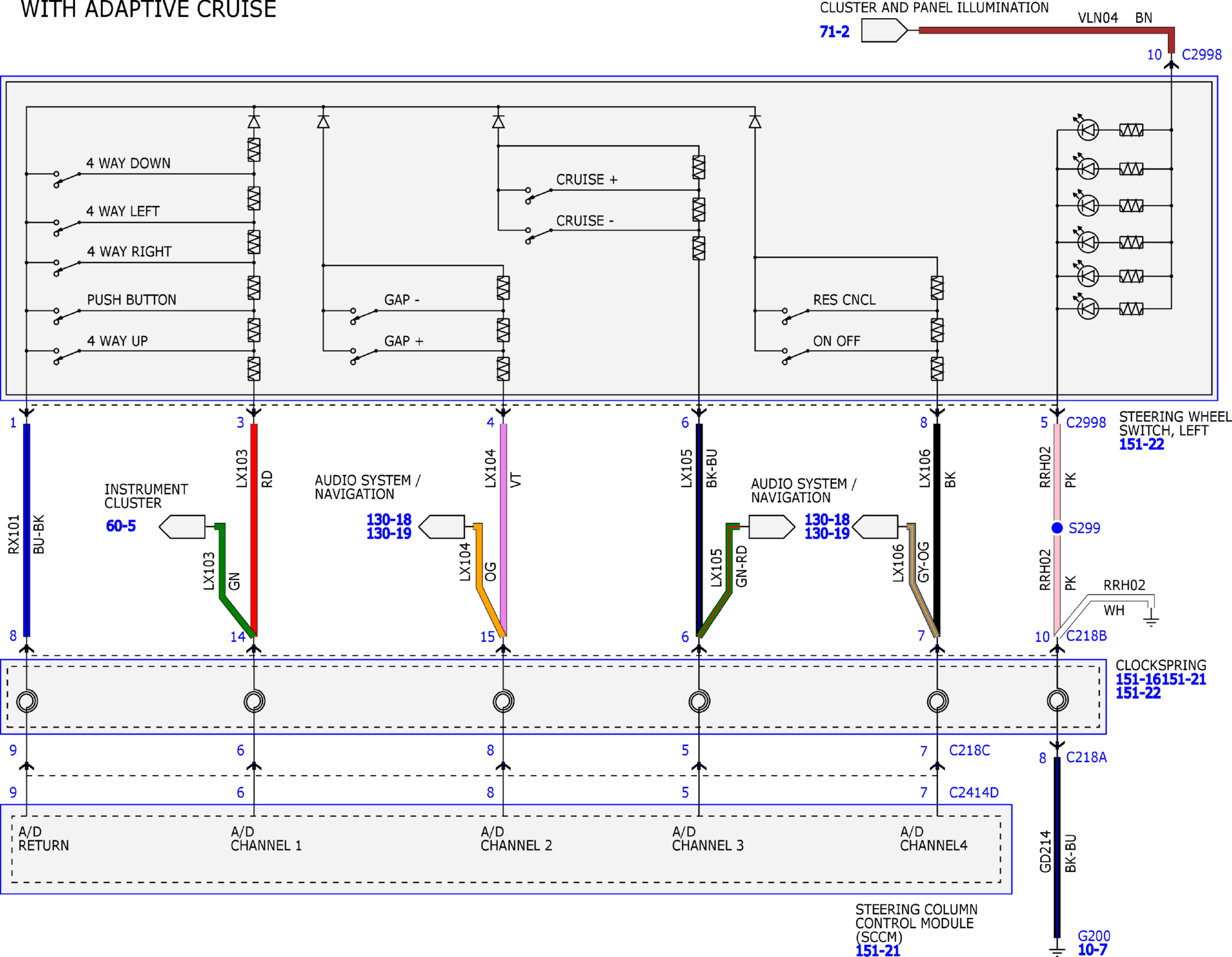

Fig 6: Cruise Control Wiring Diagram (6 of 7)

Courtesy of FORD MOTOR COMPANY

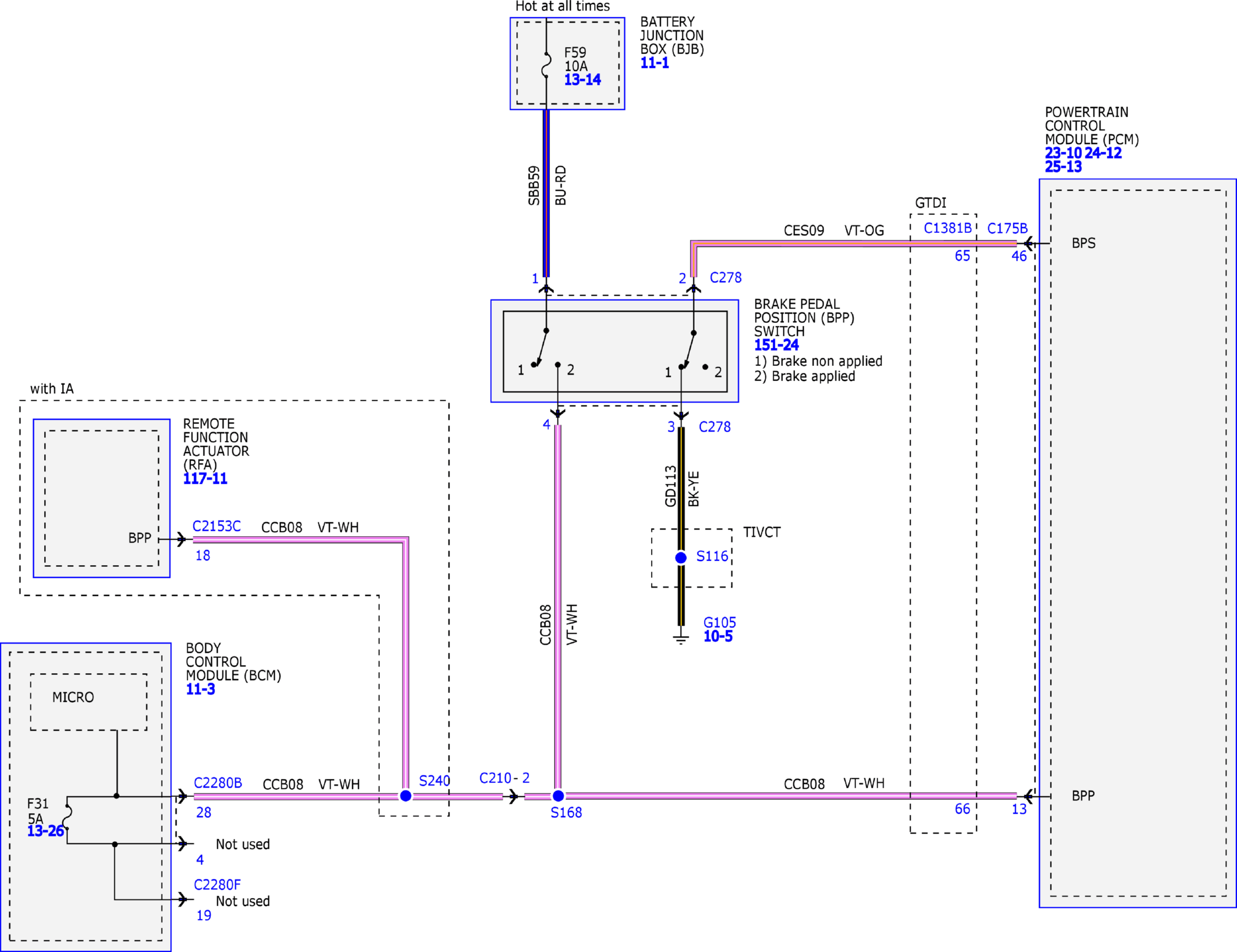

Fig 7: Cruise Control Wiring Diagram (7 of 7)

Courtesy of FORD MOTOR COMPANY
