Section 757 (OEM Wiring Diagrams)
>>
Adjustable Pedal
Adjustable Pedal
WARNING:
This page is about a different car, the 2015 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Adjustable Pedal Wiring Diagram (1 of 3)
Courtesy of FORD MOTOR COMPANY

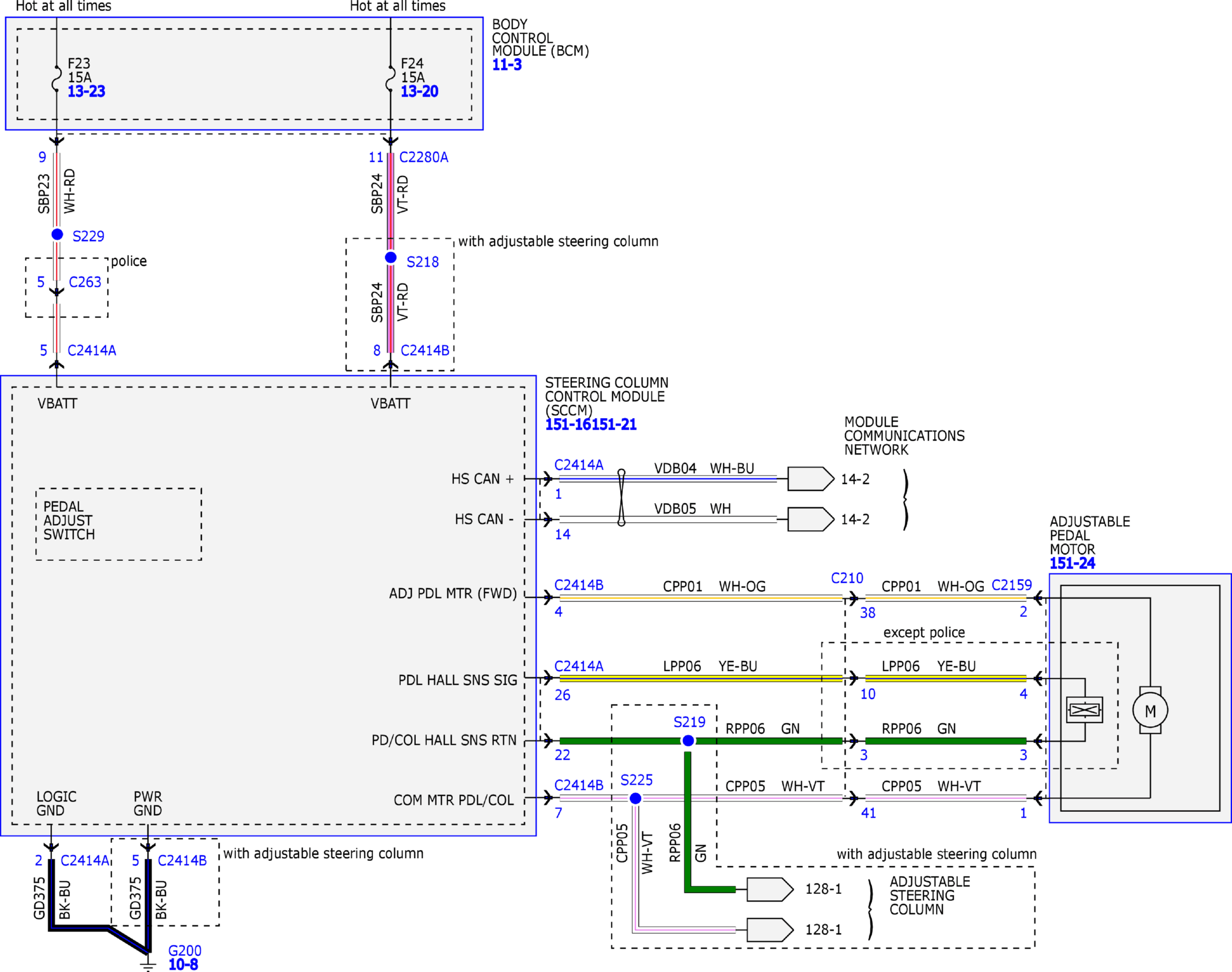

Fig 2: Adjustable Pedal Wiring Diagram (2 of 3)
Courtesy of FORD MOTOR COMPANY
Fig 3: Adjustable Pedal Wiring Diagram (3 of 3)
Courtesy of FORD MOTOR COMPANY
