Tailgate Damper: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: Removal steps in this procedure may contain installation details.

Remove the RH rear lamp assembly. Refer to: Rear Lamp Assembly .

2.

NOTE: Note the position of the component before removal.

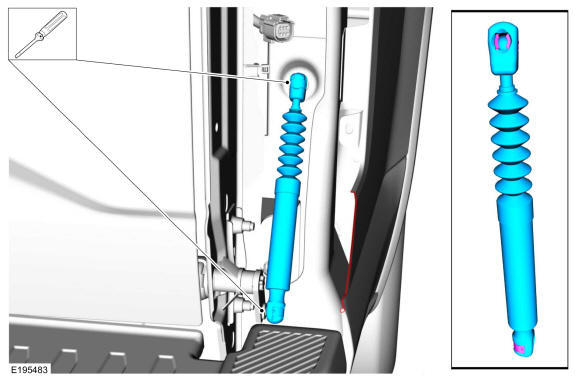

Disconnect and remove the tailgate damper.

Courtesy of FORD MOTOR COMPANY
