Trough Assembly: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the roof opening panel glass. REFER to: Roof Opening Panel Glass .

2.

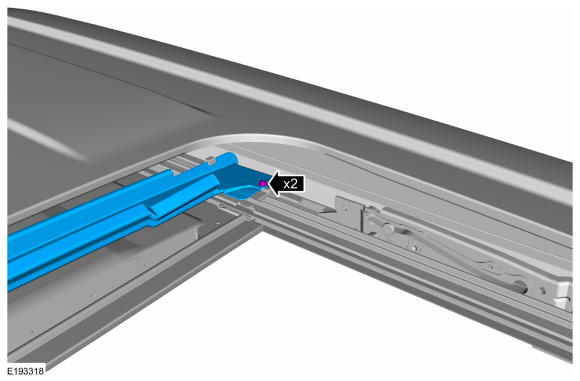

NOTE: LH side shown in illustration, RH side similar.

On both sides, remove the retainers.

Torque

: 9 lb.in (1 Nm)

Courtesy of FORD MOTOR COMPANY

3.

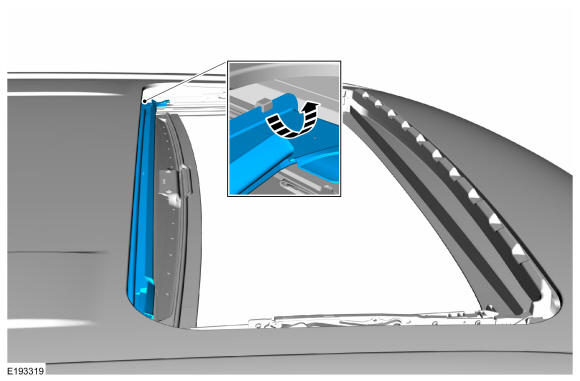

NOTE: Inset is LH side shown in illustration, RH side similar.

On both sides, roll the trough assembly out of the guide clips to remove.

Courtesy of FORD MOTOR COMPANY
