Roof Opening Panel Motor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

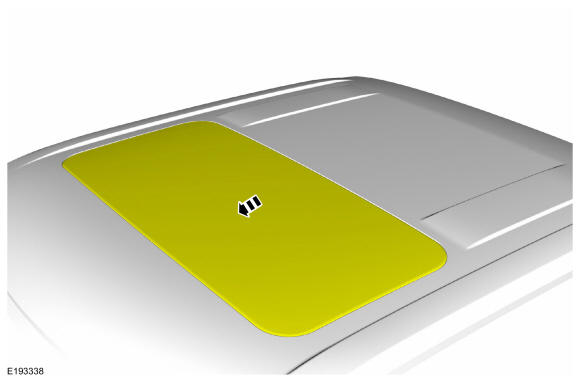

    Place the roof opening panel glass to the fully CLOSE position.
GFD43378Courtesy of FORD MOTOR COMPANY

  1. 2.

    Place the roof opening panel shield to the fully OPEN position.
GFD43368Courtesy of FORD MOTOR COMPANY

  1. 3.

    Lower the headliner. REFER to: Headliner - Lowering - SuperCab .

  1. 4.

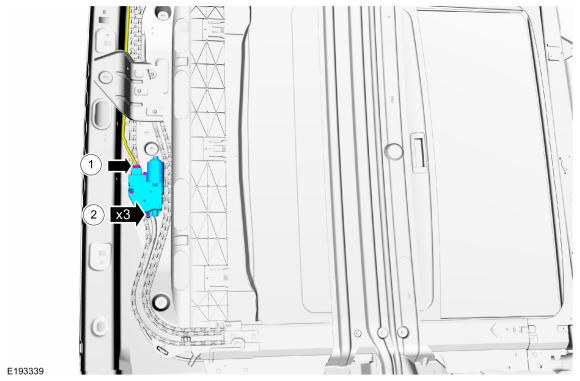

    Remove the roof opening panel motor.

    1. 1.

      Disconnect the roof opening panel motor electrical connector.

    1. 2.

      Remove the roof opening panel motor to the roof opening panel frame retainers and remove the roof opening panel motor.

      Torque

      : 31 lb.in (3.5 Nm)

GFD43379Courtesy of FORD MOTOR COMPANY
