Roof Opening Panel Glass: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Place the roof opening panel shield to the fully OPEN position.
GFD43368Courtesy of FORD MOTOR COMPANY

  1. 2.

    Place the roof opening panel glass to the VENT position.
GFD43369Courtesy of FORD MOTOR COMPANY

  1. 3.

    NOTE: LH side shown in illustration, RH side similar.

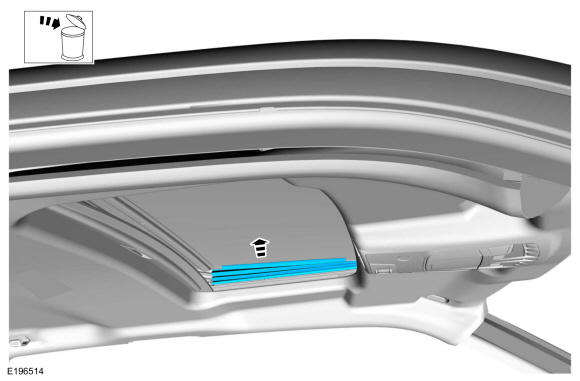

    Remove both roof opening panel blinds by pulling inward on the top and bottom of the roof opening panel blind. Discard the blinds.

GFD43376Courtesy of FORD MOTOR COMPANY

  1. 4.

    NOTE: LH side shown in illustration, RH side similar.

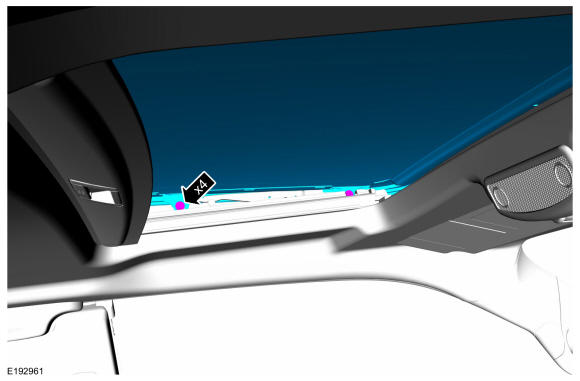

    Remove the bolts and with the aid of an assistant, remove the roof opening panel glass

    Torque

    : 35 lb.in (4 Nm)

GFD43377Courtesy of FORD MOTOR COMPANY
