Roof Opening Panel Blind: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Place the roof opening panel shield to the fully OPEN position.

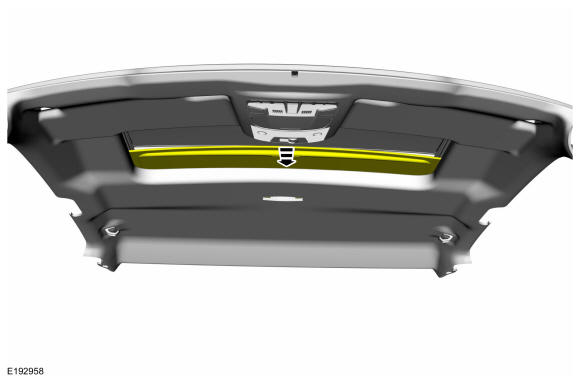

GFD43368Courtesy of FORD MOTOR COMPANY

  1. 2.

    Place the roof opening panel glass to the VENT position.

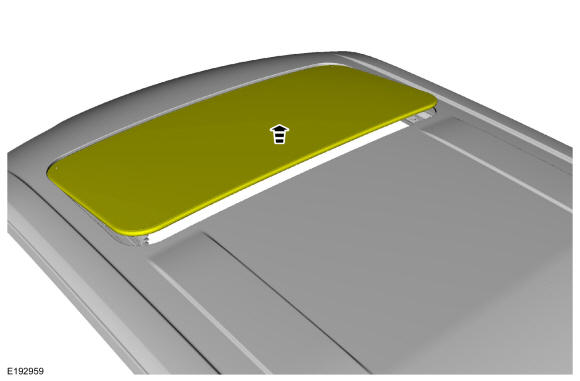

GFD43369Courtesy of FORD MOTOR COMPANY

  1. 3.

    NOTE: LH side shown in illustration, RH side similar.

    On both sides, detach the top portion of the roof opening panel blind from the roof opening panel glass frame.

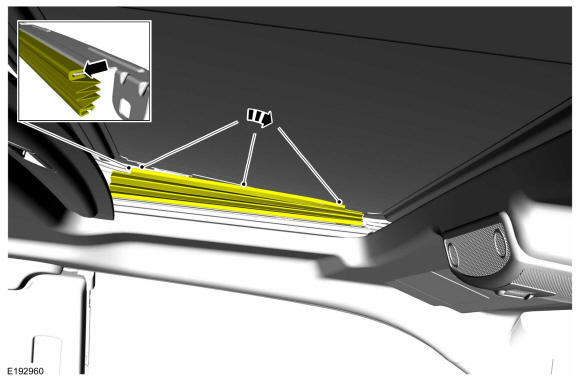

GFD43370Courtesy of FORD MOTOR COMPANY

  1. 4.

    NOTE: LH side shown in illustration, RH side similar.

    On both sides, remove and discard the roof opening panel blinds.

    1. 1.

      Detach the bottom of the roof opening panel blind from the drip link.

    1. 2.

      Pull forward to remove the roof opening panel blind. Discard the blind.

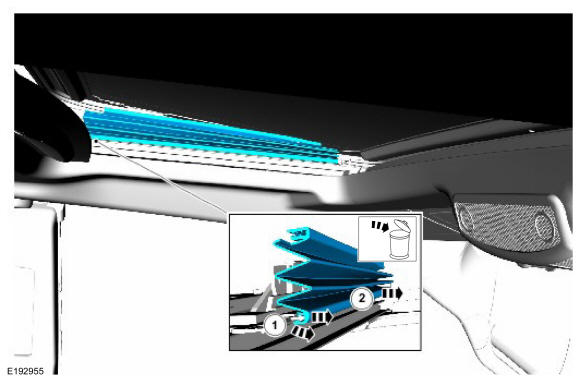

GFD43371Courtesy of FORD MOTOR COMPANY
