Rear Door Check Arm - SuperCrew: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown in illustration, RH similar.

1.

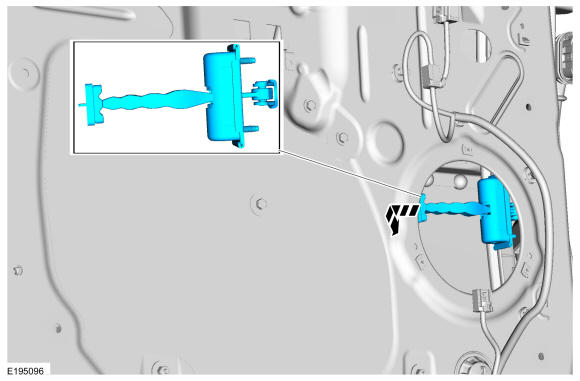

Remove the check arm bolt.
Torque

: 17 lb.ft (22.5 Nm)

Courtesy of FORD MOTOR COMPANY

2.

Remove the rear door trim panel. Refer to: Rear Door Trim Panel - SuperCrew .

3.

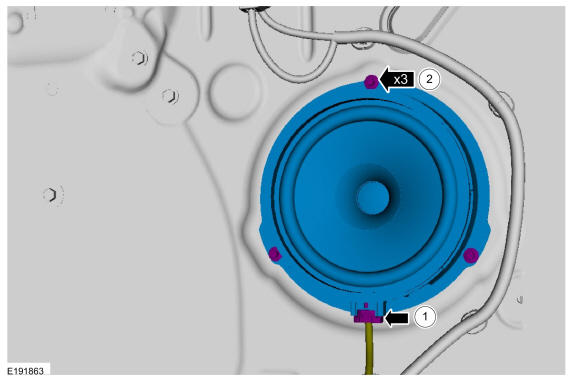

Remove the speaker.
- 1.

  Disconnect the electrical connector.
- 2.

  Remove the bolts and the speaker.

Courtesy of FORD MOTOR COMPANY

4.

Remove the nuts.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

5.

Remove the check arm assembly.

Courtesy of FORD MOTOR COMPANY
