Rear Door - SuperCab: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The rear door should only be removed and installed to the vehicle at 90° door open position. Detaching and reattaching the rear door at full open (170°) could possibly release an internal spring in the hinge mechanism and therefore disable the hinge function completely.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown in illustration, RH side similar.

1.

Remove the rear body access trim panel.

Courtesy of FORD MOTOR COMPANY

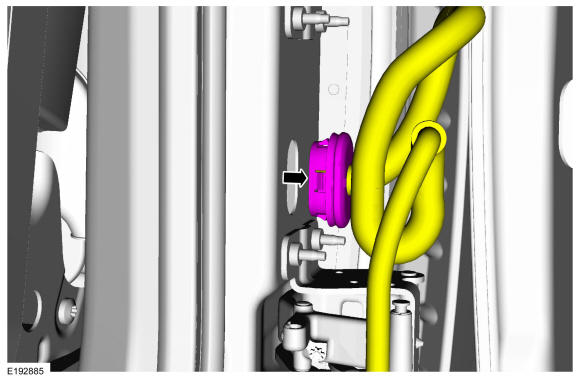

2.

Disconnect the rear door electrical connector.

Courtesy of FORD MOTOR COMPANY

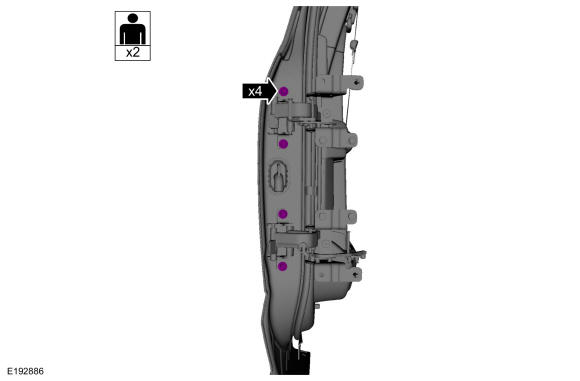

3.

NOTE: This step requires the aid of another technician.

Remove the bolts.

Torque

: 20 lb.ft (27.5 Nm)

Courtesy of FORD MOTOR COMPANY

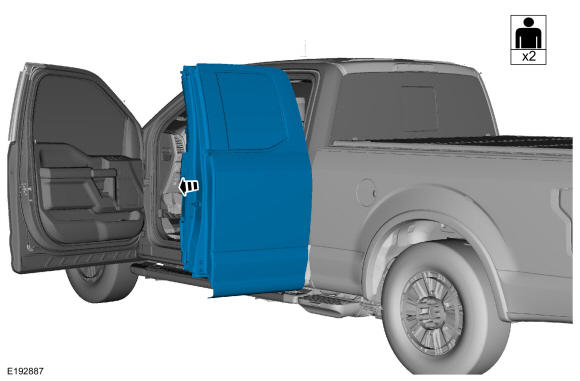

4.

NOTE: This step requires the aid of another technician.

Remove the door.

Courtesy of FORD MOTOR COMPANY
