Fuel Filler Door Assembly: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

3.

Remove the fuel filler door. Refer to: Fuel Filler Door .

4.

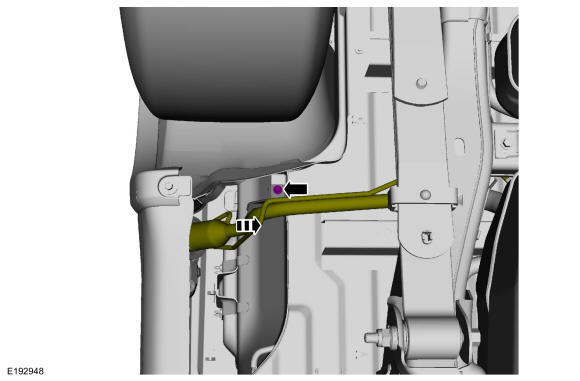

Remove the bolt and pull the fuel tank filler pipe from the fuel filler door assembly.
Torque

: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

5.

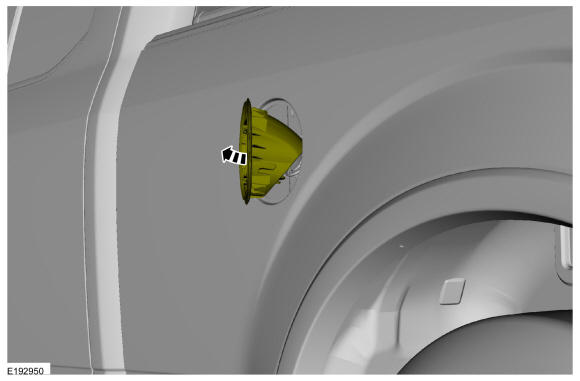

Unseat the fuel filler door assembly boot from inside the wheel opening.

Courtesy of FORD MOTOR COMPANY

6.

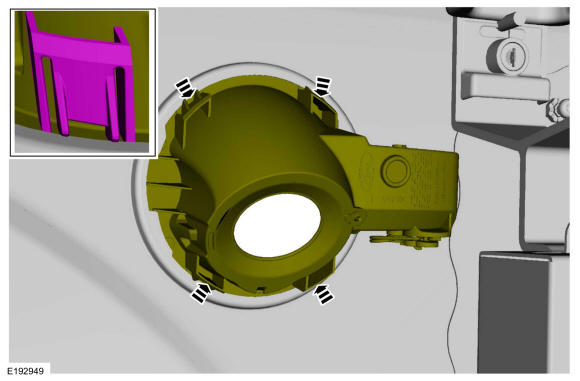

NOTE: Clearance is limited. When all four clips release, the housing can be rotated.

Rotate the housing.

Courtesy of FORD MOTOR COMPANY

7.

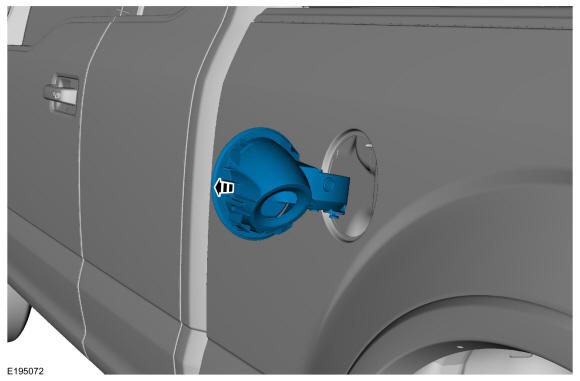

Pull the housing away from the vehicle and remove.

Courtesy of FORD MOTOR COMPANY
