Front Door - Regular Cab/SuperCrew: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown in illustration, RH side similar.

1.

Remove the check arm bolt.
Torque

: 17 lb.ft (22.5 Nm)

Courtesy of FORD MOTOR COMPANY

2.

Disconnect the front door electrical connector.

Courtesy of FORD MOTOR COMPANY

3.

NOTE: This step requires the aid of another technician.

Remove the door hinge pivot bolts.

Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

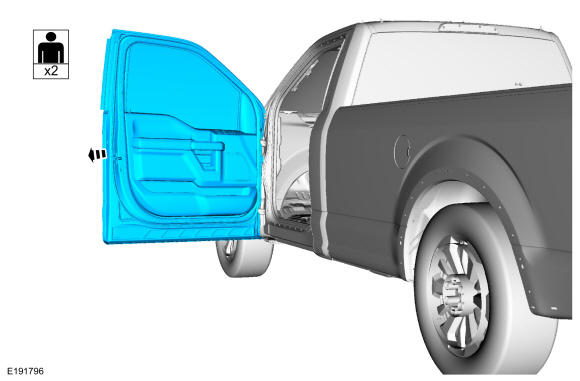

4.

NOTE: This step requires the aid of another technician.

NOTE: Regular cab shown in illustration, SuperCrew similar.

Remove the door.

Courtesy of FORD MOTOR COMPANY
