Rear Door Alignment - SuperCrew
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Inspection
NOTE:
Removal steps in this procedure may contain installation details.
LH side shown in illustration, RH side similar.
- 1.

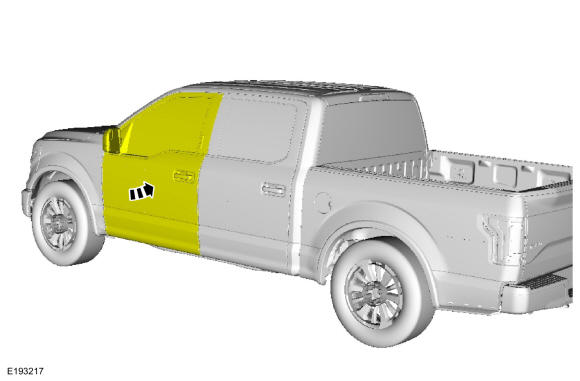

Inspect the rear door-to-body dimensions. Refer to: Body and Frame
.
Adjustment
All alignments
 Courtesy of FORD MOTOR COMPANY
|
- 2.

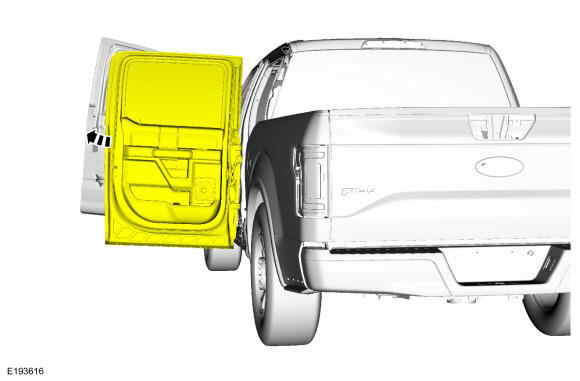

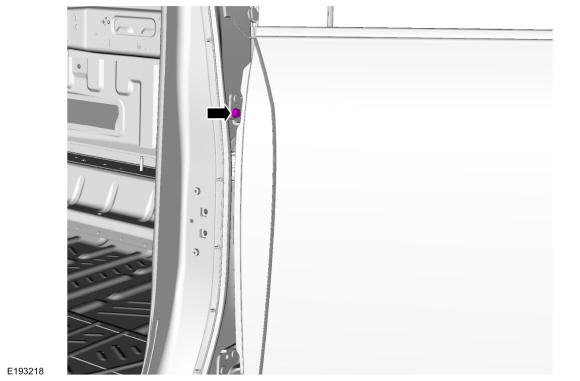

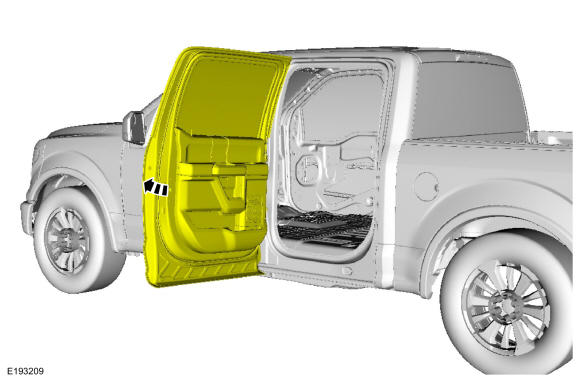

Remove the bolts and the striker assembly.
 Courtesy of FORD MOTOR COMPANY
|

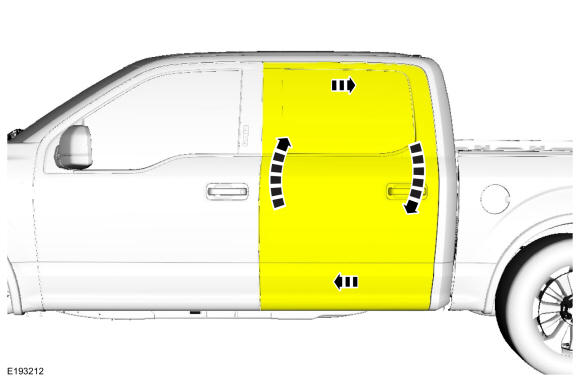

Rear door in and out, up and down alignment
Courtesy of FORD MOTOR COMPANY
|
- 4.

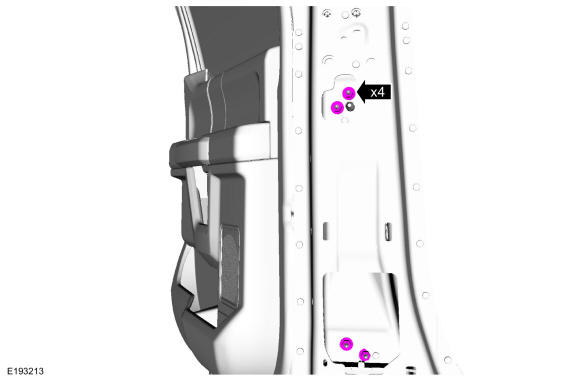

Loosen the bolts to permit movement of the door.Loosen: 2 turn(s)
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
- 6.
Tighten the bolts.Torque
: 35 lb.ft (47.5 Nm)
 Courtesy of FORD MOTOR COMPANY
|
Rear door fore, aft and tilt alignment
- 8.

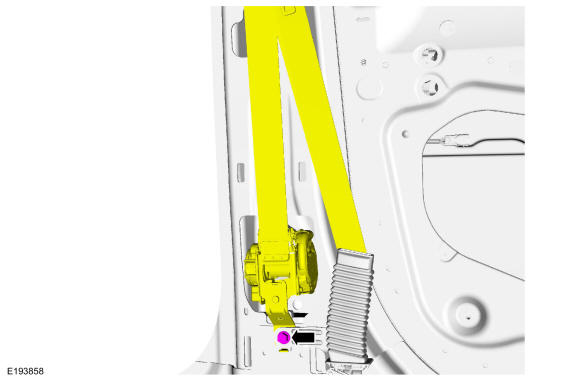

Remove the bolt and position aside the safety belt retractor.Torque
: 30 lb.ft (40 Nm)
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
- 11.
Loosen the nuts to permit movement of the door.Loosen: 2 turn(s)
 Courtesy of FORD MOTOR COMPANY
|
- 12.
Loosen the bolt to permit movement of the door.Loosen: 2 turn(s)
 Courtesy of FORD MOTOR COMPANY
|
- 13.
Carefully close the rear door.
 Courtesy of FORD MOTOR COMPANY
|
- 14.
Carefully close the front door.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
- 16.
Carefully open the front door.
Courtesy of FORD MOTOR COMPANY
|
- 17.
Carefully open the rear door.
Courtesy of FORD MOTOR COMPANY
|
- 18.
Tighten the nuts.Torque
: 22 lb.ft (30 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 19.
Tighten the bolt.Torque
: 89 lb.in (10 Nm)
 Courtesy of FORD MOTOR COMPANY
|
All alignments
- 20.
Install the striker assembly.Torque
: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY
|
- 21.

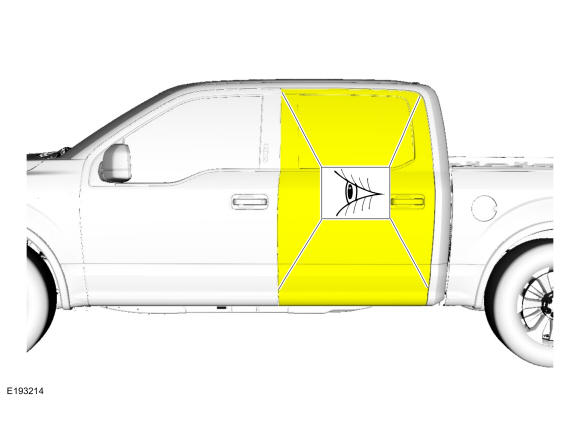

Inspect the body-to-rear door dimensions. Refer to: Body and Frame
.
 Courtesy of FORD MOTOR COMPANY
|
- 22.
Install the removed components.
- During installation, make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants.
