Front Door Alignment - Regular Cab SuperCrew

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Inspection

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown in illustration, RH side similar.

NOTE: Regular Cab shown in illustration, SuperCrew similar.

1.

Inspect the front door-to-body dimensions. Refer to: Body and Frame .

Adjustment

All alignments

1.

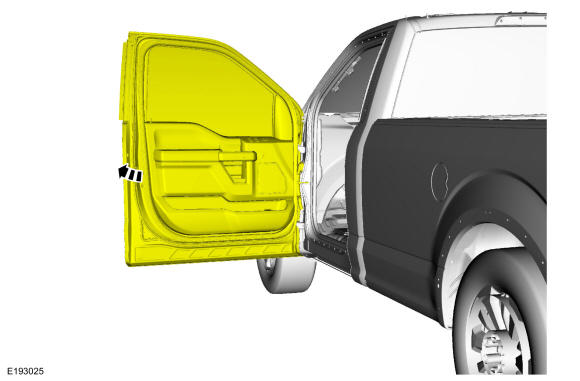

Open the door.

GFD42611

Courtesy of FORD MOTOR COMPANY

2.

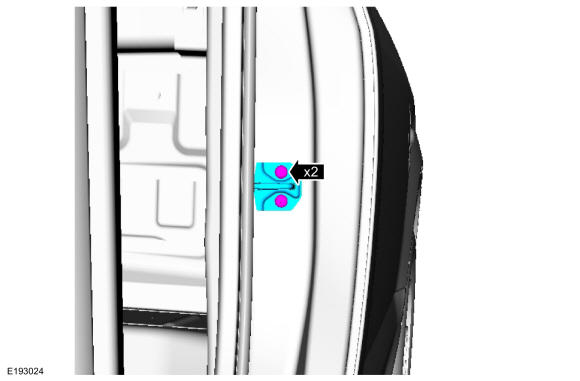

Remove the bolts and the striker assembly.

GFD42612

Courtesy of FORD MOTOR COMPANY

Front door in and out, up and down alignment

3.

Open the door.

GFD42611

Courtesy of FORD MOTOR COMPANY

4.

Loosen the bolts enough to permit movement of the door.

GFD42613

Courtesy of FORD MOTOR COMPANY

5.

Adjust the door to specification. Refer to: Body and Frame .

GFD42614

Courtesy of FORD MOTOR COMPANY

6.

Tighten the bolts.
Torque

: 35 lb.ft (47.5 Nm)

GFD42615

Courtesy of FORD MOTOR COMPANY

Front door fore, aft and tilt alignment

7.

Open the door.

GFD42611

Courtesy of FORD MOTOR COMPANY

8.

Loosen the bolts enough to permit movement of the door.

GFD42616

Courtesy of FORD MOTOR COMPANY

9.

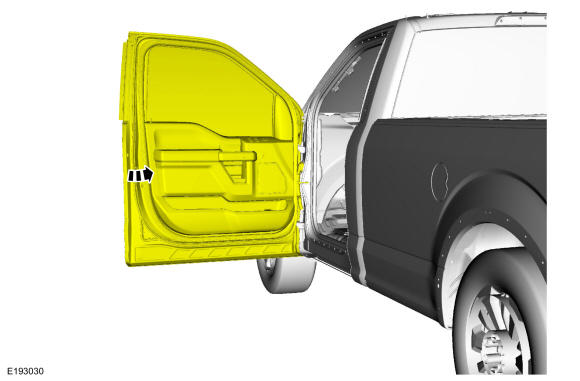

Carefully close the door.

GFD42617

Courtesy of FORD MOTOR COMPANY

10.

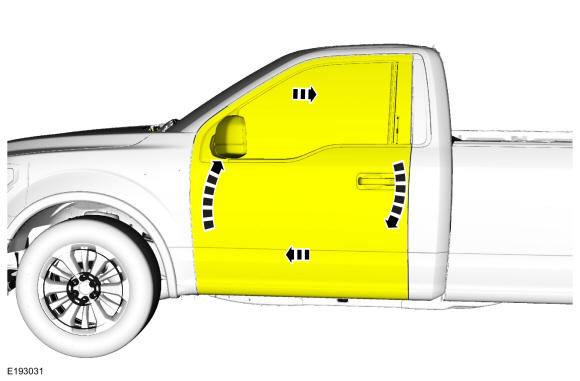

Adjust the door to specification. Refer to: Body and Frame .

GFD42618

Courtesy of FORD MOTOR COMPANY

11.

Carefully open the door.

GFD42611

Courtesy of FORD MOTOR COMPANY

12.

NOTE: Calculate the correct torque wrench setting for the following torque. Refer to the Torque Wrench Adapter Formulas in Fig 1.

Tighten the bolts.

Torque:

1.: 20 lb.ft (27.5 Nm)

2.: 89 lb.in (10 Nm)

Fig 1: Torque Wrench Adapter Formulas

G00468730

Courtesy of FORD MOTOR CO.

GFD42619

Courtesy of FORD MOTOR COMPANY

All alignments

13.

Install the striker assembly.
Torque

: 18 lb.ft (25 Nm)

GFD42612

Courtesy of FORD MOTOR COMPANY

14.

Inspect the body-to-front door dimensions. Refer to: Body and Frame .

GFD42620

Courtesy of FORD MOTOR COMPANY
