Rear Seat RH - SuperCrew: Removal

All vehicles

1. 1.

   Remove the seat front fasteners.

   1. 1.

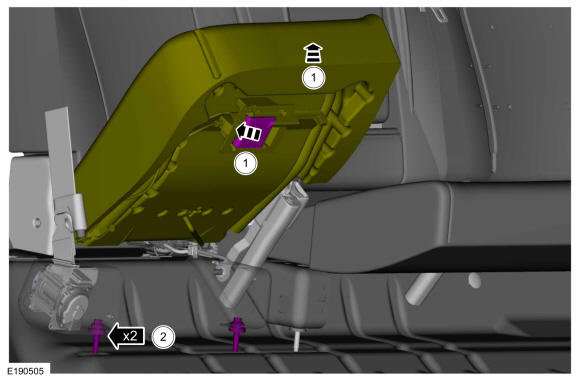

      Using the seat cushion latch handle, raise the cushion.

   1. 2.

      Remove the fasteners.

      Torque

      : 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

1. 2.

   Pull the backrest release strap and fold the seat backrest forward.

Courtesy of FORD MOTOR COMPANY

1. 3.

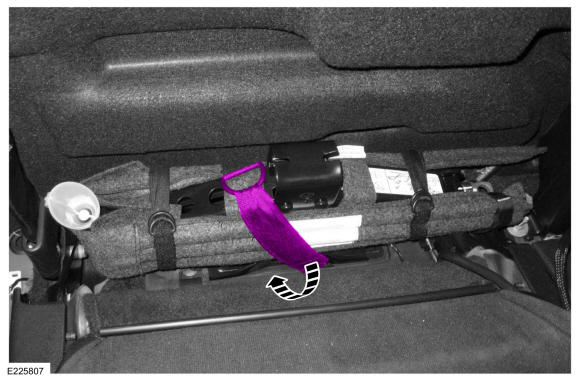

   Release the hook-and-loop strap and remove the vehicle jack.

Courtesy of FORD MOTOR COMPANY

Vehicles with inflatable safety belts

1. 4.

   Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

1. 5.

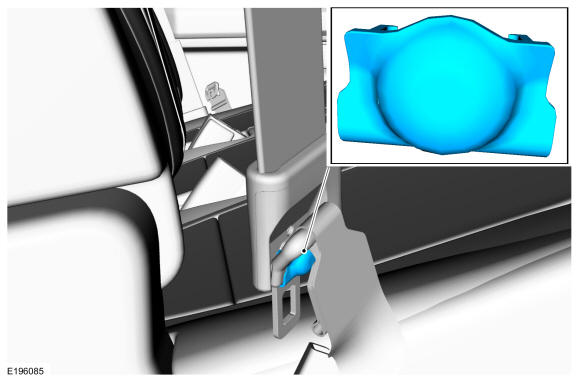

   Remove the lower safety belt anchor bolt cover.

Courtesy of FORD MOTOR COMPANY

1. 6.

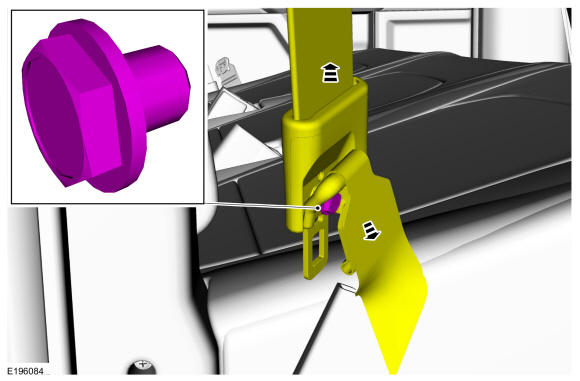

   Remove the anchor bolt and separate the upper safety belt from the lower safety belt.

   Torque

   : 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles without inflatable safety belts

1. 7.

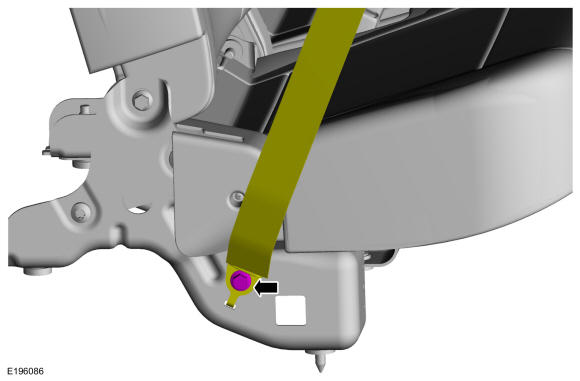

   Remover the outboard safety belt retractor-to-seat fastener.

   Torque

   : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles with heated seats or inflatable safety belts

1. 8.

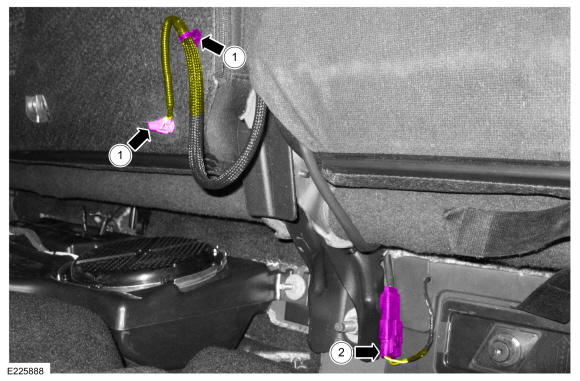

   Disconnect the electrical connector(s).

   1. 1.

      If equipped, disconnect the heated seat electrical connector and detach the wire harness retainer.

   1. 2.

      If equipped, disconnect the inflatable safety belt safety belt buckle switch electrical connector.

Courtesy of FORD MOTOR COMPANY

All vehicles

1. 9.

   Remove the seat rear nuts. Remove the seat.

   Torque

   : 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY
