Rear Seat RH - SuperCab: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

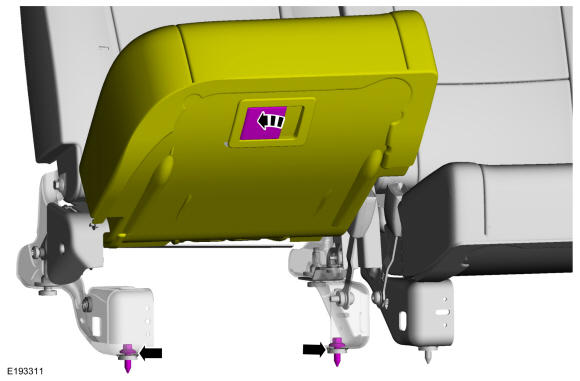

Remove the seat front fasteners.
1. 1.

  Using the seat cushion latch handle, raise the cushion.
1. 2.

  Remove the fasteners.
  Torque

  : 19 lb.ft (26 Nm)

Courtesy of FORD MOTOR COMPANY

2.

Pull the backrest release strap and fold the seat backrest forward.

Courtesy of FORD MOTOR COMPANY

3.

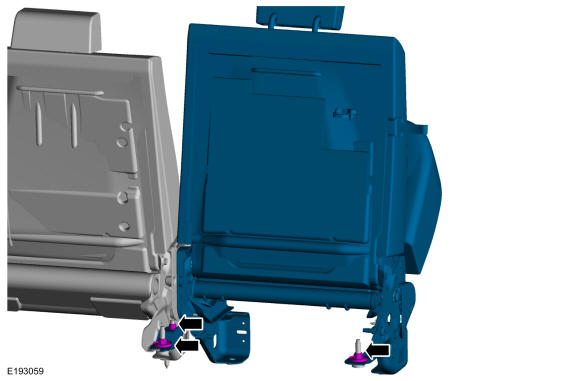

Remove the seat rear nuts. Remove the seat.
Torque

: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY
