Rear Seat LH - SuperCrew: Removal

1. 1.

   Remove the RH seat. Refer to: Rear Seat RH - SuperCrew .

1. 2.

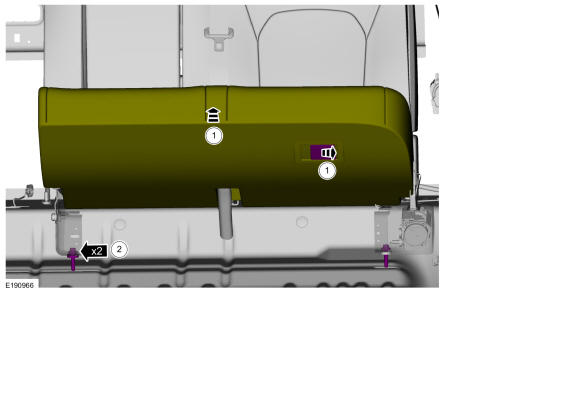

   Remove the seat front fasteners.

   1. 1.

      Using the seat cushion latch handle, raise the seat cushion.

   1. 2.

      Remove the fasteners.

      Torque

      : 35 lb.ft (47 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles with inflatable safety belts

1. 3.

   Remove the lower safety belt anchor bolt cover.

Courtesy of FORD MOTOR COMPANY

1. 4.

   Remove the anchor bolt and separate the upper safety belt from the lower safety belt.

   Torque

   : 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles without inflatable safety belts

1. 5.

   Remove the outboard safety belt retractor-to-seat fastener.

   Torque

   : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

1. 6.


   NOTE: The seat backrest latch is only accessible when the seat cushion is raised.
   NOTE: The striker should be in its lowest position for the latch to engage.

   Fold the LH rear seat backrest down.

   1. 1.

      Raise the seat cushion.

   1. 2.

      Release the backrest latch.

   1. 3.

      Fold the backrest down.

Courtesy of FORD MOTOR COMPANY

1. 7.

   If equipped with a subwoofer, disconnect the electrical connector, remove the fasteners and remove the subwoofer.

   Torque

   : 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

1. 8.

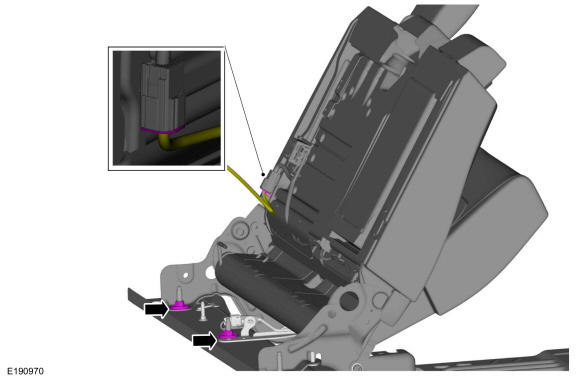

   Disconnect the heated seat electrical connector and remove the seat rear fasteners.

   Torque

   : 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

1. 9.

   Remove the seat.

   1. 1.

      Route the center safety belt through the cushion opening.

   1. 2.

      Remove the seat.

Courtesy of FORD MOTOR COMPANY
