Rear Seat LH - SuperCab: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the RH seat. Refer to: Rear Seat RH - SuperCab .

2.

Remove the outboard safety belt retractor-to-seat fastener.
Torque

: 30 lb.ft (40 Nm)

GFD43091

Courtesy of FORD MOTOR COMPANY

3.

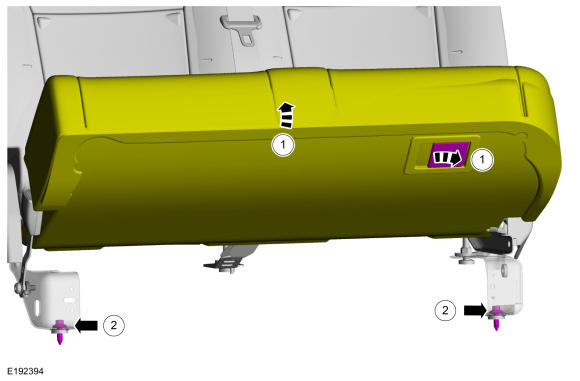

Remove the seat front fasteners.
1. 1.

  Using the cushion latch handle, raise the seat cushion.
1. 2.

  Remove the fasteners.
  Torque

  : 26 lb.ft (35 Nm)

GFD43098

Courtesy of FORD MOTOR COMPANY

4.

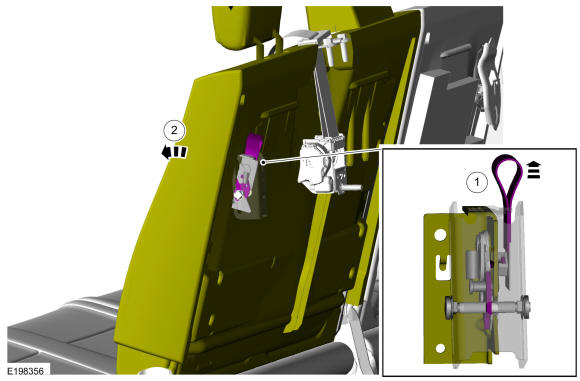

NOTE: The striker should be in its lowest position for the latch to engage.

Lower the LH backrest.
1. 1.

  Pull the backrest release strap and release the latch from the striker.
1. 2.

  Lower the backrest.

GFD42780

Courtesy of FORD MOTOR COMPANY

5.

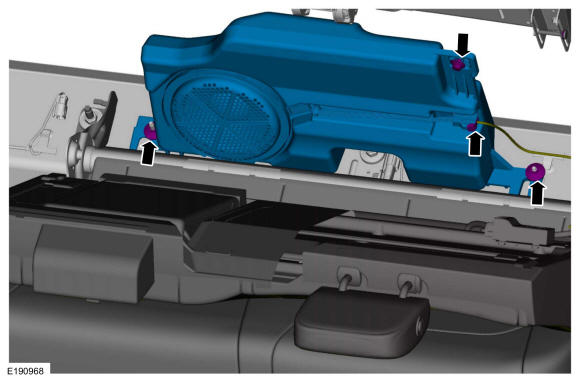

If equipped with a subwoofer, disconnect the electrical connector, remove the fasteners and remove the subwoofer.
Torque

: 62 lb.in (7 Nm)

GFD43099

Courtesy of FORD MOTOR COMPANY

6.

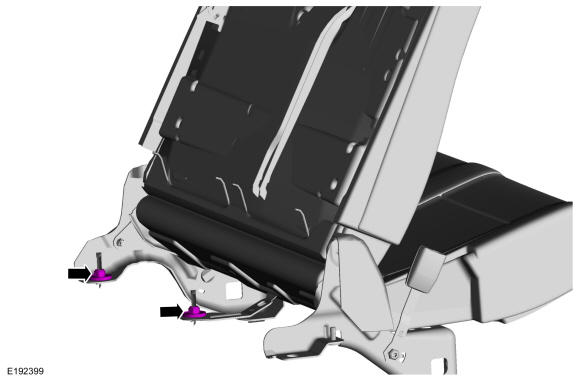

Remove the seat rear fasteners.
Torque

: 59 lb.ft (80 Nm)

GFD43100

Courtesy of FORD MOTOR COMPANY

7.

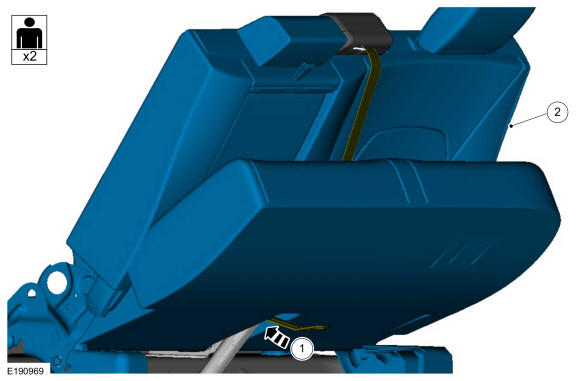

Remove the seat.
1. 1.

  Route center safety belt through the cushion opening.
1. 2.

  Remove the seat.

GFD43101

Courtesy of FORD MOTOR COMPANY
