Rear Seat Cushion Cover - SuperCrew: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown, RH similar.

1.

Remove the rear seat. Refer to: Rear Seat RH - SuperCrew . Refer to: Rear Seat LH - SuperCrew .

2.

Using an interior trim tool, remove the latch bezel from the seat cushion. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

3.

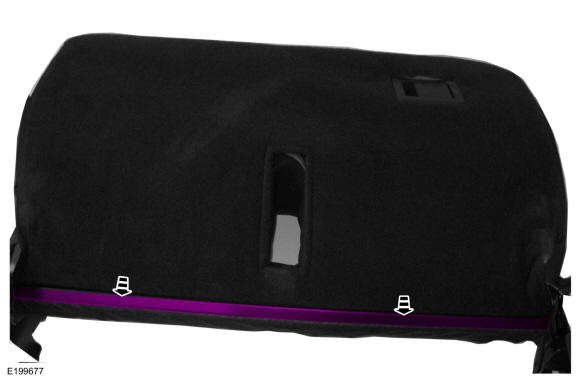

Release the seat cushion cover lower J-clip.

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Use care when separating the seat cushion cover from the hook-and-loop strip or the hook-and-loop strip can be torn from the foam pad.

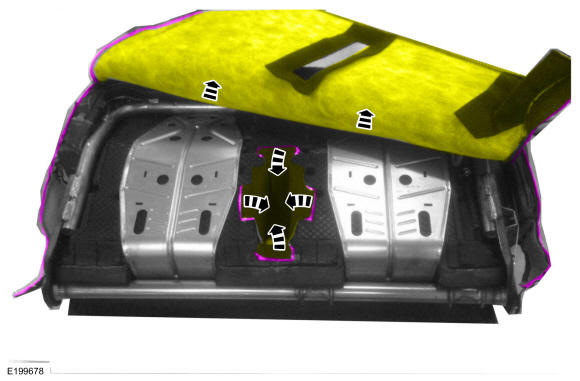

On both sides, unzip and open the cushion cover. Release the hook-and-loop strips.

Courtesy of FORD MOTOR COMPANY

5.

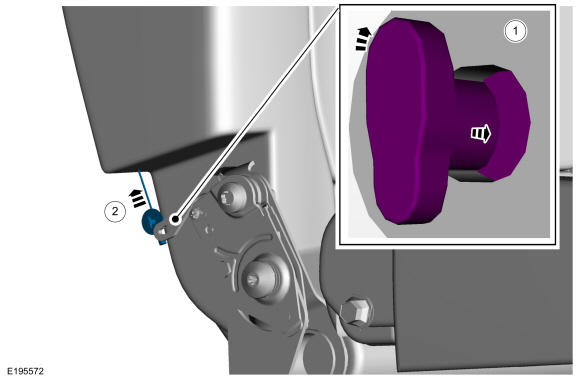

Release the latch cable and route it through the cushion cover.
1. 1.

  Rotate the latch cable end to align with the slot in the lever and pull the cable end through the slot.
1. 2.

  Route the latch cable through the cushion cover.

Courtesy of FORD MOTOR COMPANY

6.

NOTE: Use care when separating the seat cushion cover from the hook-and-arrow strip or the hook-and-arrow strip can be torn from the foam pad.

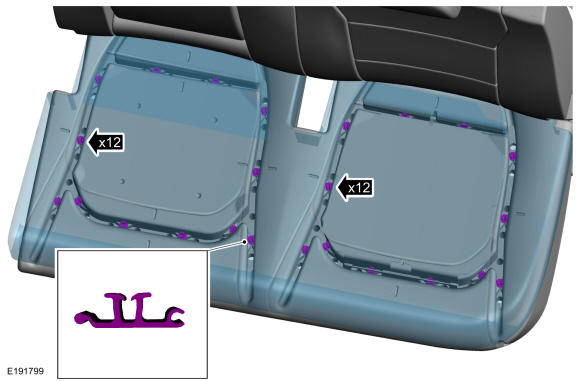

Release the hook-and arrows from the foam pad and remove the cushion cover.

Courtesy of FORD MOTOR COMPANY
