Rear Seat Cushion Cover - SuperCab: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown, RH similar.

1.

Remove the rear seat. Refer to: Rear Seat RH - SuperCab . Refer to: Rear Seat LH - SuperCab .

2.

Using an interior trim tool, remove the latch bezel from the seat cushion. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

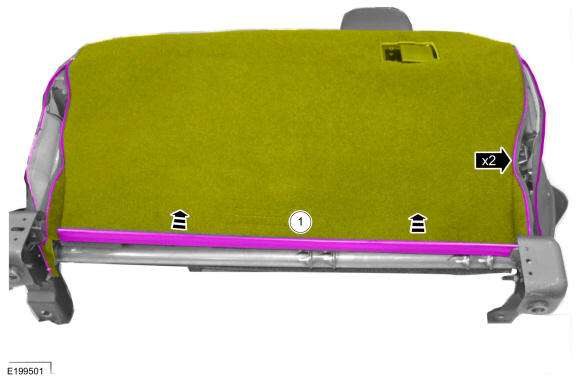

3.

Release the lower cushion cover.
1. 1.

  Release the cushion cover lower J-clip.
1. 2.

  On both sides, unzip the cushion cover.

Courtesy of FORD MOTOR COMPANY

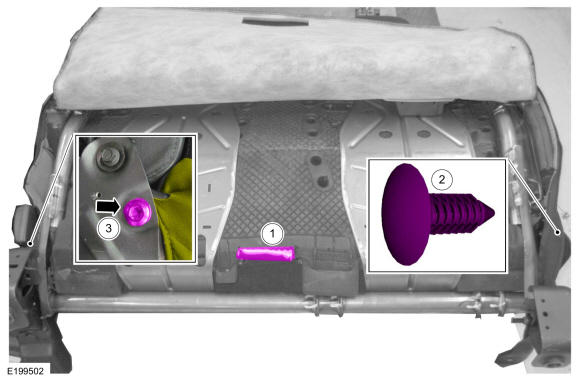

4.

NOTE: Use care when separating the seat cushion cover from the hook-and-loop strip or the hook-and-loop strip can be torn from the foam pad.

Remove the inboard and outboard cushion cover fasteners.
1. 1.

  Release the hook-and-loop strip.
1. 2.

  Remove the outboard cushion cover pushpin.
1. 3.

  Remove the inboard pivot bolt.
  Torque

  : 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

5.

Release the latch cable and route it through the cushion cover.
1. 1.

  Rotate the latch cable end to align with the slot in the lever and pull the cable end through the slot.
1. 2.

  Route the latch cable through the cushion cover.

Courtesy of FORD MOTOR COMPANY

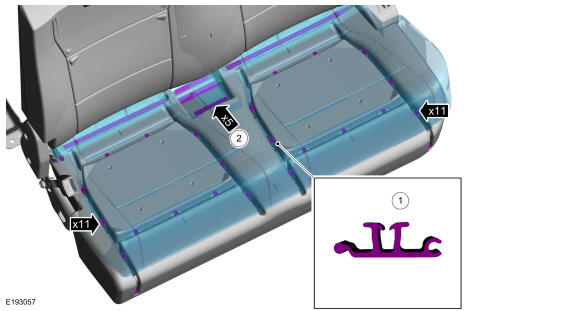

6.

NOTE: Use care when separating the seat cushion cover from the hook-and-loop strip or the hook-and-loop strip can be torn from the foam pad.

NOTE: Use care when separating the seat cushion cover from the hook-and-arrow strip or the hook-and-arrow strip can be torn from the foam pad.

Remove the cushion cover from the foam pad.
1. 1.

  Release the hook-and-arrows.
1. 2.

  Release the hook-and-loop strips.

Courtesy of FORD MOTOR COMPANY
