Rear Seat Backrest Cover - SuperCrew: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown, RH similar.

1.

Remove the seat. Refer to: Rear Seat RH - SuperCrew . Refer to: Rear Seat LH - SuperCrew .

LH seat

2.

Remove the backrest. Refer to: Rear Seat Backrest - SuperCrew .

All seats

3.

Remove the head restraint guide sleeves. Refer to: Rear Head Restraint Guide Sleeve .

4.

If equipped, remove the armrest. Refer to: Rear Seat Armrest - SuperCrew .

5.

Release the backrest cover lower J-clip.

Courtesy of FORD MOTOR COMPANY

6.

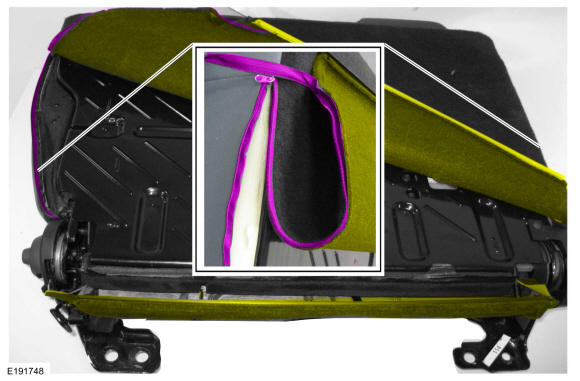

On both sides, unzip the backrest cover.

Courtesy of FORD MOTOR COMPANY

LH seat

7.

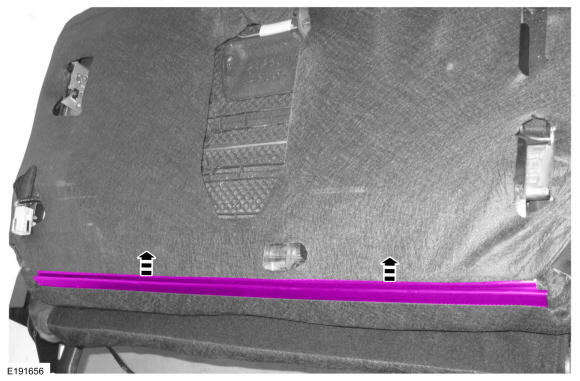

Release the center backrest J-clip and armrest cavity retainers.

Courtesy of FORD MOTOR COMPANY

All seats

8.

NOTE: Use care when separating the backrest cover from the hook-and-loop strip or the hook-and-arrow can be torn from the foam pad.

NOTE: Use care when separating the backrest cover from the hook-and-arrow strip or the hook-and-arrow can be torn from the foam pad.

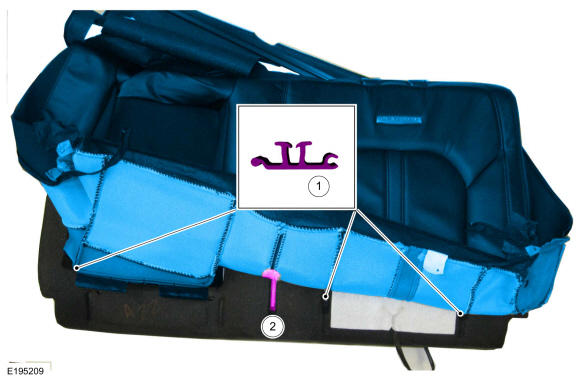

Remove the backrest cover from the foam pad.
1. 1.

  Release the hook-and-arrows.
1. 2.

  Release the hook-and-loop strip.

Courtesy of FORD MOTOR COMPANY
