Rear Seat Backrest Cover - SuperCab: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown, RH similar.

1.

Remove the rear seat backrest. Refer to: Rear Seat Backrest - SuperCab .

2.

Remove the head restraint guide sleeves. Refer to: Rear Head Restraint Guide Sleeve .

3.

Release the backrest cover lower J-clip.

Courtesy of FORD MOTOR COMPANY

4.

On both sides, unzip the backrest cover.

Courtesy of FORD MOTOR COMPANY

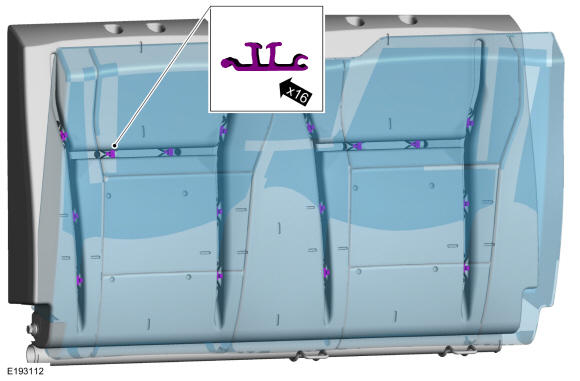

5.

NOTE: Use care when separating the backrest cover from the hook-and-arrow strip or the hook-and-arrow can be torn from the foam pad.

Release the hook-and-arrows and remove the backrest cover from the foam pad.

Courtesy of FORD MOTOR COMPANY
