Rear Seat Backrest - SuperCab: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown, RH similar.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the rear seat. Refer to: Rear Seat RH - SuperCab . Refer to: Rear Seat LH - SuperCab .

2.

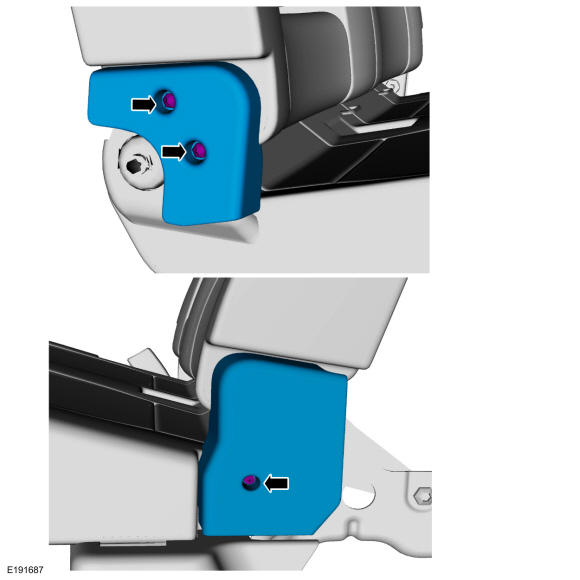

Remove the inboard and outboard cushion side shield fasteners and remove the side shields.

Courtesy of FORD MOTOR COMPANY

3.

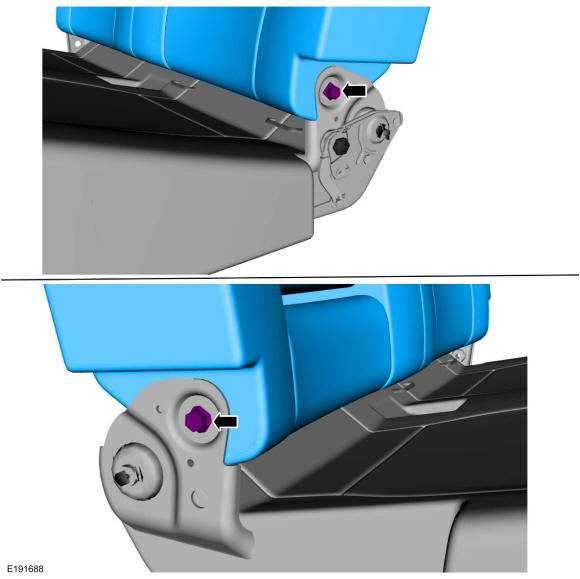

Remove the inboard and outboard pivot fasteners. Remove the backrest.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
