Rear Seat Armrest - SuperCrew: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

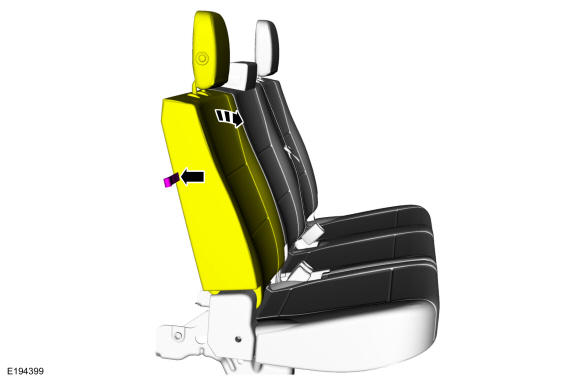

Fold forward the RH seat backrest.

Courtesy of FORD MOTOR COMPANY

2.

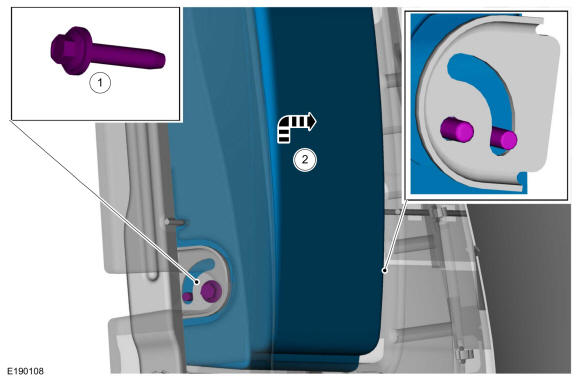

Remove the armrest.
1. 1.

  Through the opening in the backrest cover and foam pad, remove the armrest fastener.
  Torque

  : 18 lb.ft (25 Nm)
1. 2.

  Lift and rotate the armrest to release the guide pins from both sides of the armrest.

Courtesy of FORD MOTOR COMPANY
