Heated Rear Seat Switch - SuperCrew: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

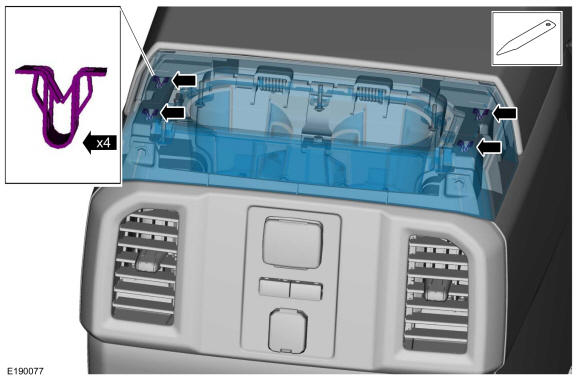

Using an interior trim remover, lift the cup holder trim and release the locking clips. Remove the cup holder trim. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

2.

Remove the heated seat switch.
1. 1.

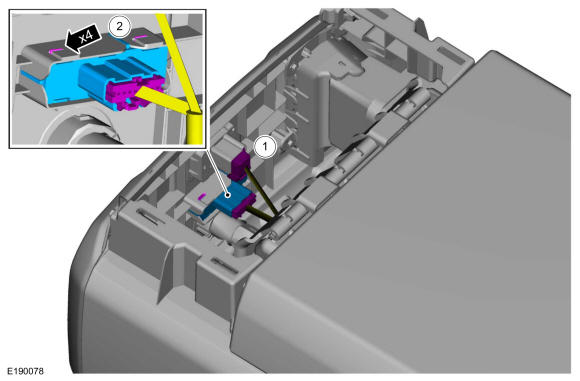

  Disconnect the power point electrical connector.
1. 2.

  Disconnect the heat seat switch electrical connector. Release the switch tabs and slide the switch rearward.

Courtesy of FORD MOTOR COMPANY
