Heated Rear Seat Module - SuperCrew: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
NOTE:
The backrest latch is only accessible when the seat cushion is raised.
NOTE:
The striker should be in its lowest position for the latch to engage.
Release and lower the LH seat backrest.
- 1.
Raise the seat cushion.
- 2.
Release the seat backrest latch.
- 3.
Lower the backrest.
 Courtesy of FORD MOTOR COMPANY
|

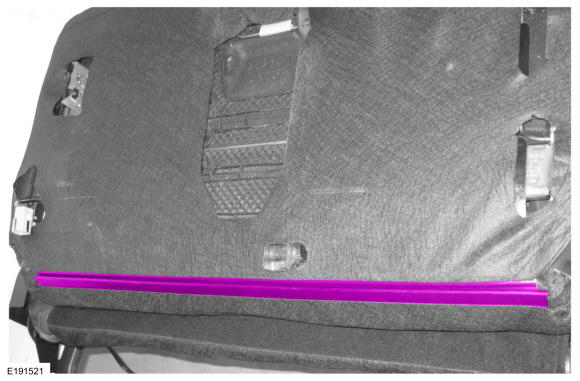

- 2.
Release the backrest cover lower J-clip.
 Courtesy of FORD MOTOR COMPANY
|

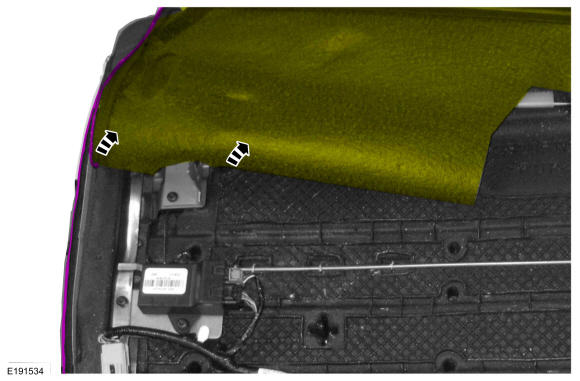

- 3.
Unzip and open the backrest cover.
 Courtesy of FORD MOTOR COMPANY
|

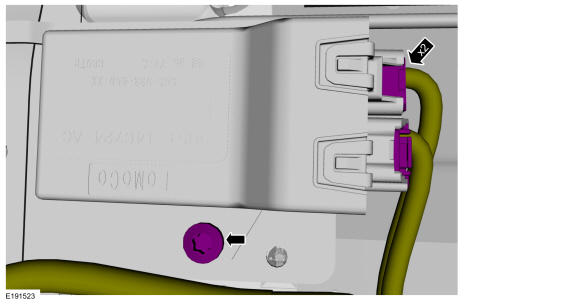

- 4.
Disconnect the electrical connectors. Remove the module fastener.
 Courtesy of FORD MOTOR COMPANY
|

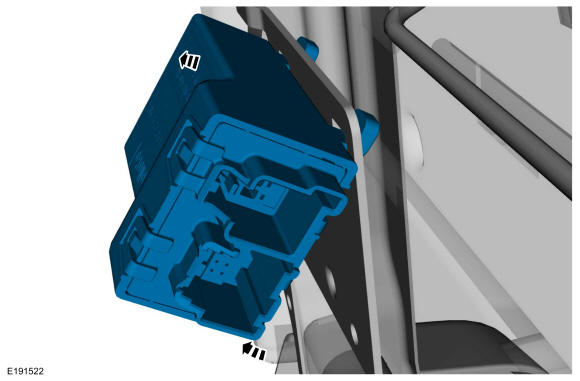

- 5.
Rotate and remove the heated seat module.
 Courtesy of FORD MOTOR COMPANY
|
