Rear Bumper: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles
NOTE:
The towing package equipped rear bumper is shown in illustration, the standard bumper is similar.
- 1.
Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .
- 2.

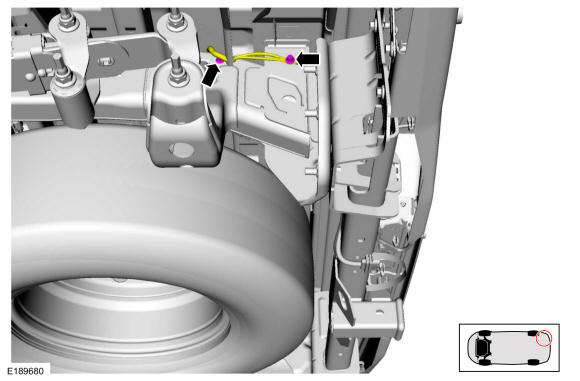

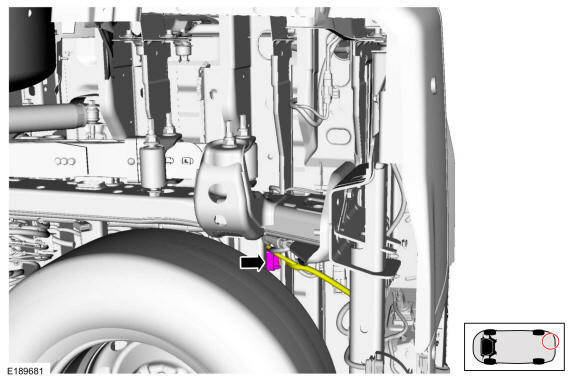

Remove the bolt, separate the harness retainer and position the harness over the frame rail.Torque
: 177 lb.in (20 Nm)
- 5.
With the help of an assistant, remove the nuts and the rear bumper assembly.Torque
: 129 lb.ft (175 Nm)

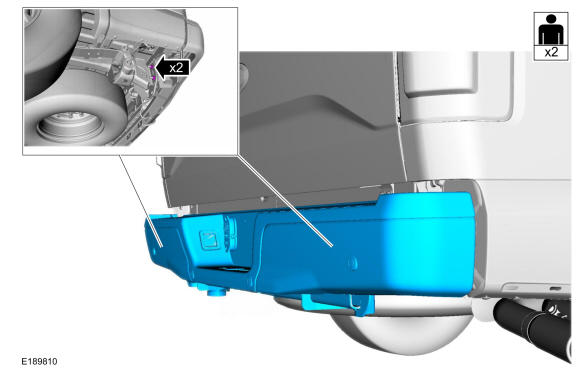

Vehicles without trailer tow package
- 6.
With the help of an assistant, remove the nuts and the rear bumper assembly.Torque
: 129 lb.ft (175 Nm)

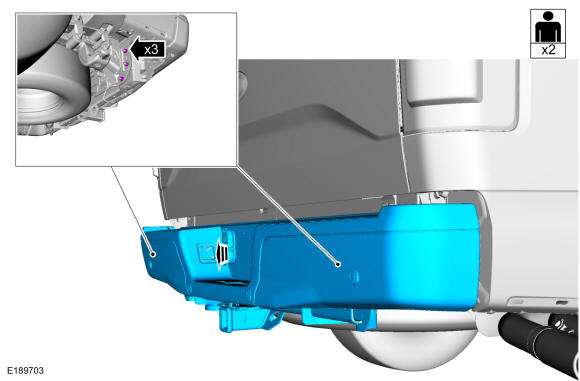

Vehicles with trailer tow package
- 7.
With the help of an assistant, remove the nuts and the rear bumper assembly.Torque
: 129 lb.ft (175 Nm)
