Front Bumper: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .

2.

NOTE: On both sides.

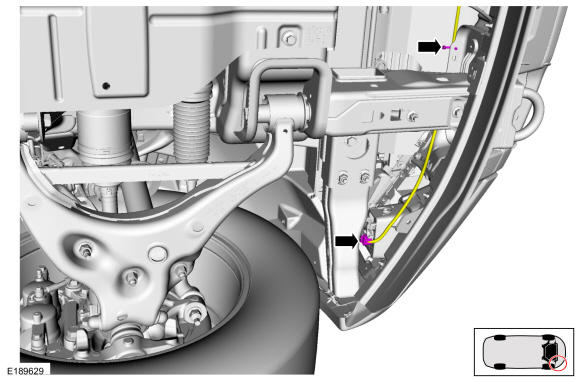

Disconnect the fog lamps and separate the wiring harness guides.

Courtesy of FORD MOTOR COMPANY

3.

NOTE: On both sides.

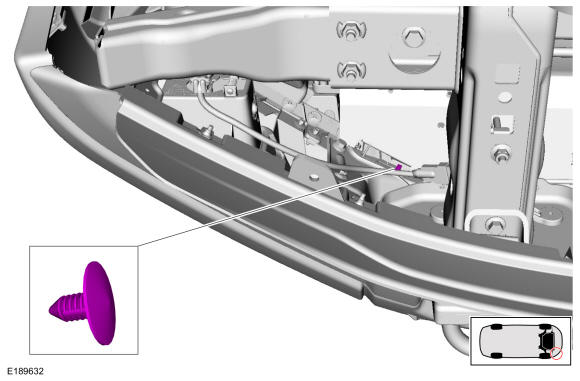

Remove the air deflector push pin.

Courtesy of FORD MOTOR COMPANY

4.

NOTE: On both sides.

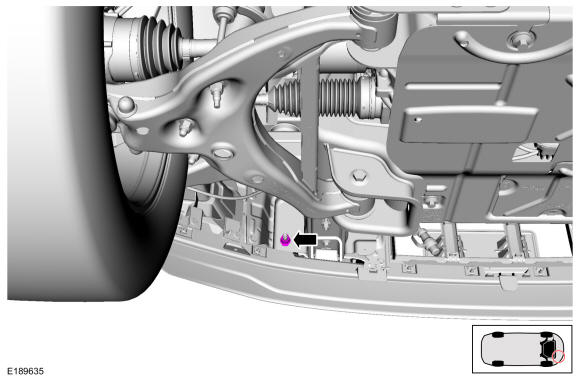

Remove the front bumper nut.

Torque

: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY

5.

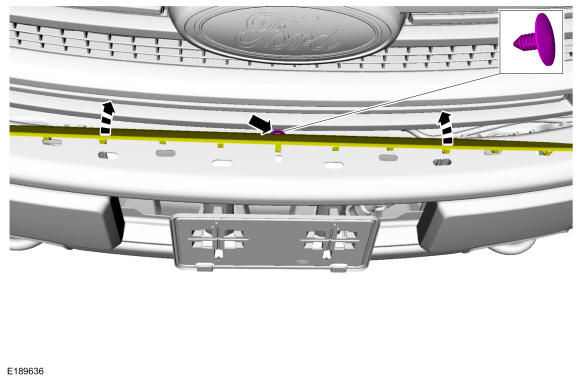

Position the front bumper step plate up and remove the push pin.

Courtesy of FORD MOTOR COMPANY

6.

Remove the front bumper trim panel.

Courtesy of FORD MOTOR COMPANY

7.

NOTE: If equipped.

Remove the CCM. Refer to: Cruise Control Module (CCM) .

8.

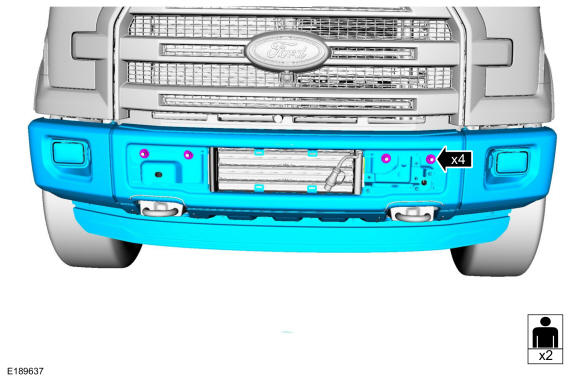

With help of an assistant, remove the nuts and the front bumper.
Torque

: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY
