Rear Bumper: Disassembly

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

1.

Remove the rear bumper. Refer to: Rear Bumper .

2.

NOTE: The number and location of electrical connectors and retainers will vary depending on option content.

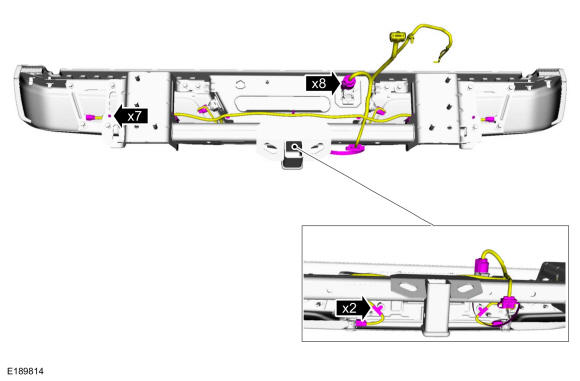

Remove the rear bumper wiring harness.
- 1.

  Disconnect the rear bumper wiring harness electrical connectors.
- 2.

  Separate the rear bumper wiring harness retainers.

GFD43433

Courtesy of FORD MOTOR COMPANY

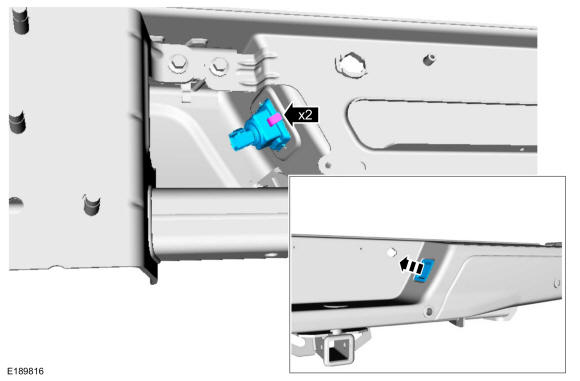

3.

NOTE: On both sides.

Release the tabs and remove the license plate lamp.

GFD43434

Courtesy of FORD MOTOR COMPANY

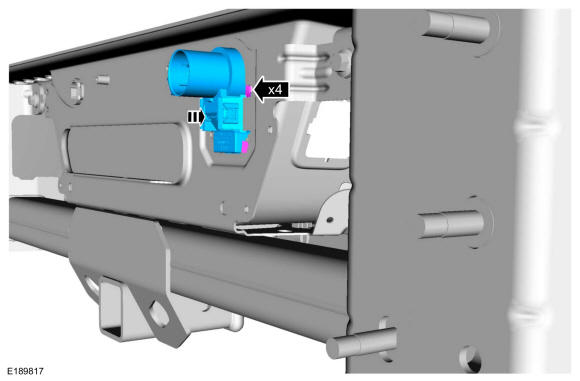

4.

Release the tabs and remove the trailer brake electrical connector.

GFD43435

Courtesy of FORD MOTOR COMPANY

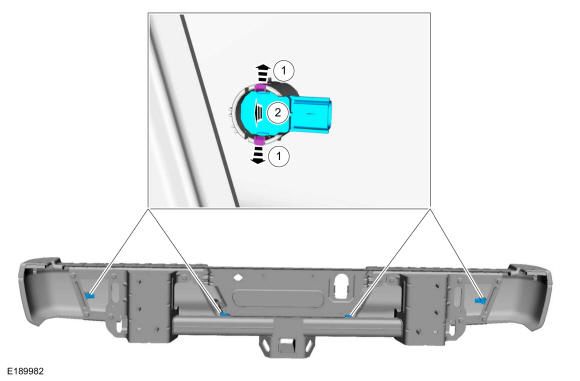

5.

If equipped, remove the rear parking aid sensors.
- 1.

  Release the tabs.
- 2.

  Slide the rear parking aid sensors out of the bezels.

GFD43436

Courtesy of FORD MOTOR COMPANY

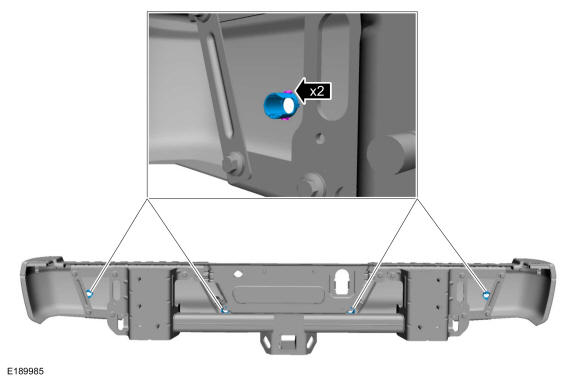

6.

If equipped, release the tabs and remove the rear parking aid sensor bezels.

GFD43437

Courtesy of FORD MOTOR COMPANY

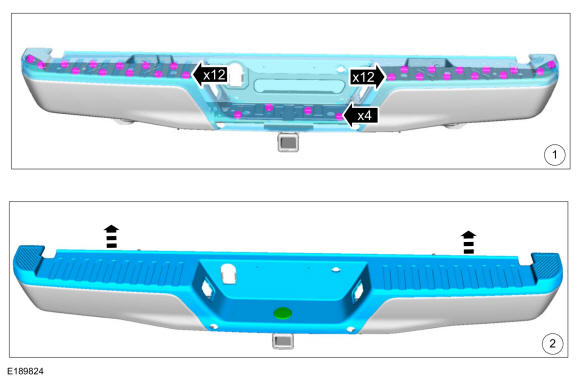

7.

Remove the rear bumper step plate.
- 1.

  If equipped, remove the trailer ball access cover.
- 2.

  Release the tabs.

GFD43438

Courtesy of FORD MOTOR COMPANY

Vehicles with trailer tow package

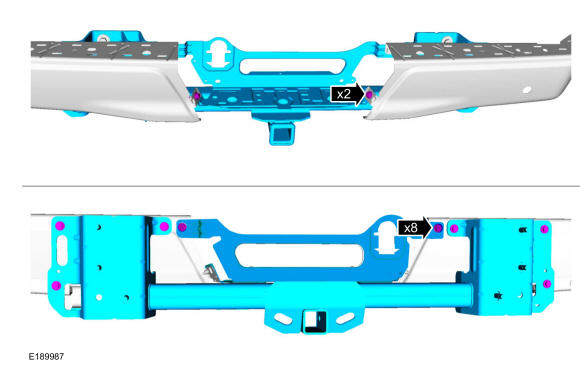

8.

Remove the bolts and the rear bumper bar.
Torque

: 18 lb.ft (25 Nm)

GFD43439

Courtesy of FORD MOTOR COMPANY

Vehicles without trailer tow package

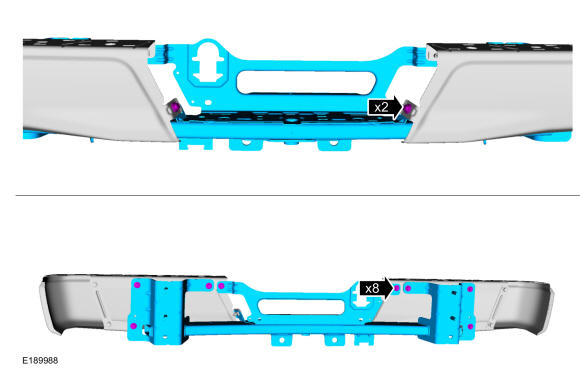

9.

Remove the bolts and the rear bumper bar.
Torque

: 18 lb.ft (25 Nm)

GFD43440

Courtesy of FORD MOTOR COMPANY

All vehicles

10.

Remove the bolts and the outer bumper brace.
Torque

: 18 lb.ft (25 Nm)

GFD43441

Courtesy of FORD MOTOR COMPANY
