Front Bumper: Disassembly

All vehicles

• 1.

  Remove the front bumper. Refer to: Front Bumper .

• 2.

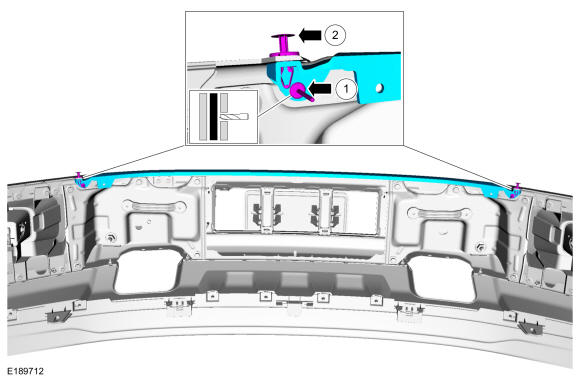

  Remove the front bumper upper trim plate.

  • 1.

    Drill out the rivets.

  • 2.

    Remove the pin-type retainers.

Courtesy of FORD MOTOR COMPANY

• 3.


  NOTE: On both sides.

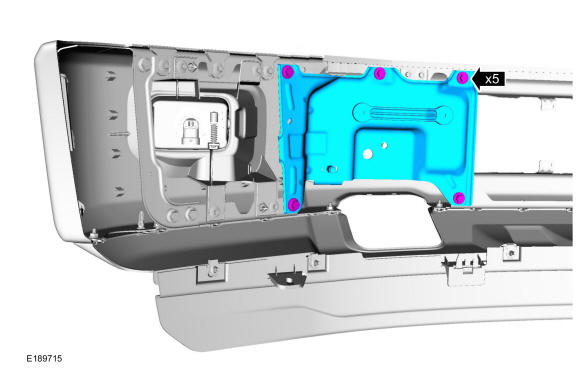

  Remove the bolts and the front bumper brackets.

  Torque

  : 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

• 4.

  Remove the CCM bracket.

  • 1.

    Remove the CCM bracket bolts.

    Torque

    : 42 lb.in (4.8 Nm)

  • 2.

    Remove the CCM bracket scrivet.

Courtesy of FORD MOTOR COMPANY

• 5.


  NOTE: On both sides.

  Remove the fog lamp bolts, push pins and the fog lamp assembly.

  Torque

  : 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

• 6.


  NOTE: On both sides.

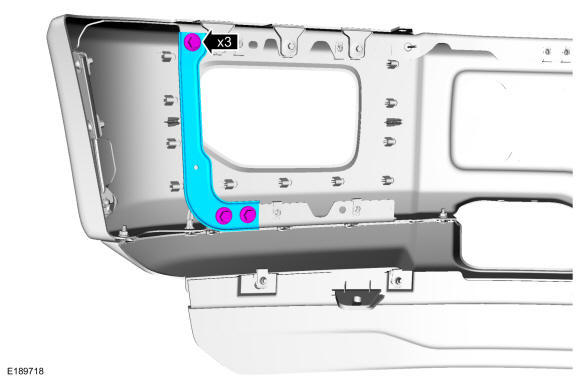

  Remove the bolts and the front bumper outer bracket.

  Torque

  : 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

• 7.

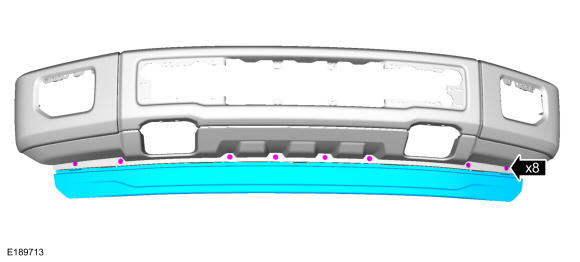

  Remove the bolts and the front bumper air deflector.

Courtesy of FORD MOTOR COMPANY

Vehicles with tow hooks

• 8.


  NOTE: On both sides.

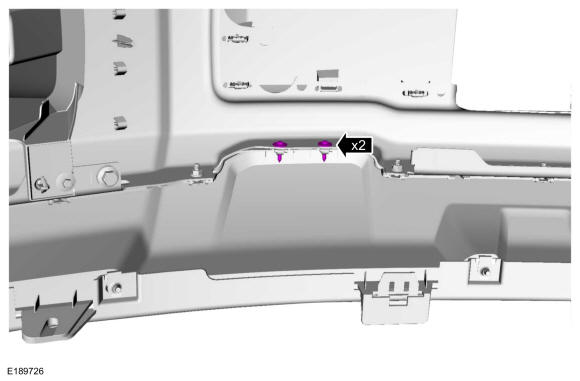

  Remove the front valence screws.

  Torque

  : 10 lb.in (1.1 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

• 9.

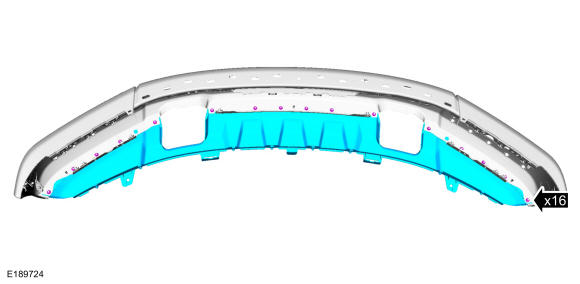

  Remove the nuts and the front bumper valence.

  Torque

  : 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY

• 10.


  NOTE: On both sides.

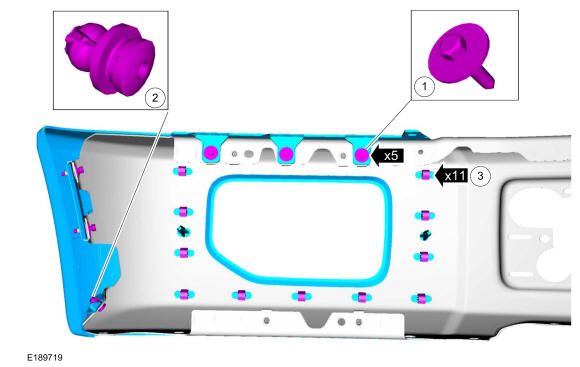

  Remove the front bumper cover.

  • 1.

    Remove the front bumper cover bolts.

    Torque

    : 28 lb.in (3.2 Nm)

  • 2.

    Remove the front bumper cover scrivet.

  • 3.

    Release the spring type retainers.

Courtesy of FORD MOTOR COMPANY
