Glove Compartment: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Glove compartment

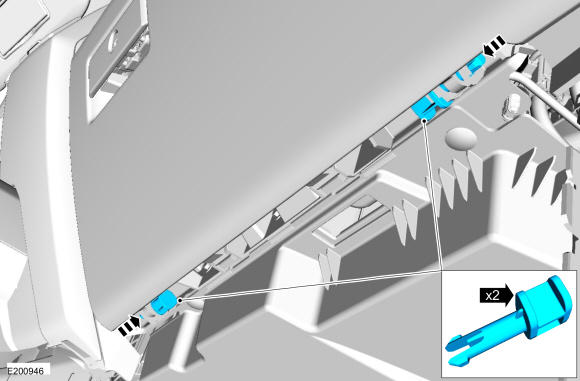

- 1.
Remove the glove compartment hinge pins.
 Courtesy of FORD MOTOR COMPANY
|

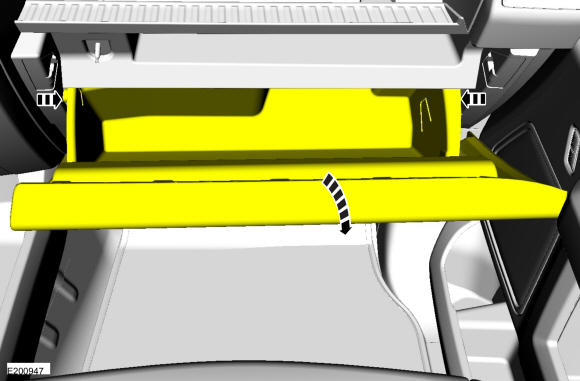

- 2.
Open the glove compartment.
 Courtesy of FORD MOTOR COMPANY
|

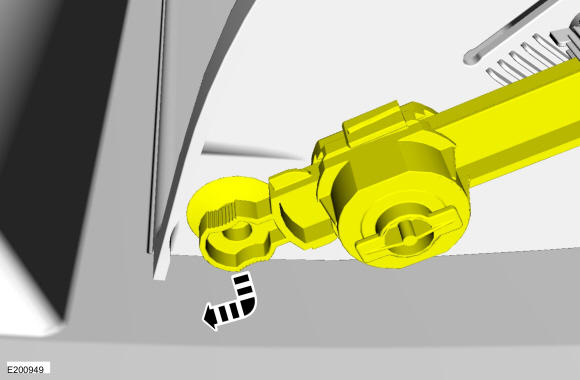

- 3.
Remove the glove compartment dampener from the glove compartment by pushing down and forward at the damper end.
 Courtesy of FORD MOTOR COMPANY
|

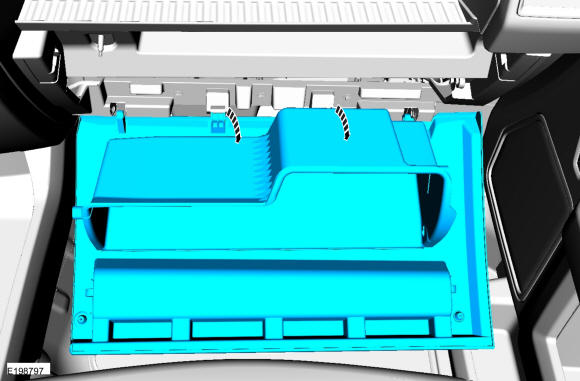

- 4.
Release glove compartment downstops and fully lower the glove compartment.
 Courtesy of FORD MOTOR COMPANY
|

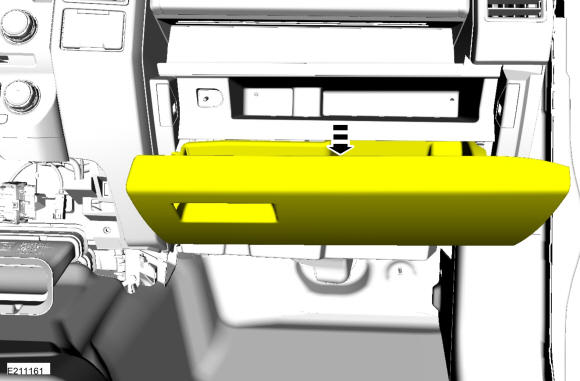

- 5.
Remove the glove compartment from the hinge line.
 Courtesy of FORD MOTOR COMPANY
|
Glove compartment bin
- 6.
Release the clips and remove the RH finish panel.Use the General Equipment: Interior Trim Remover
 Courtesy of FORD MOTOR COMPANY
|

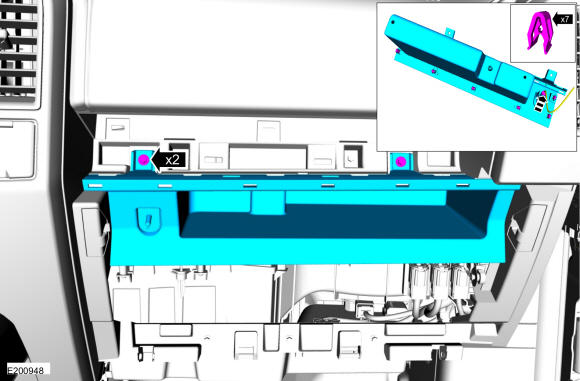

- 7.
Remove the bolts, release the clips and remove the glove compartment bin.
- Disconnect the electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
