Floor Console: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

NOTE: Removal steps in this procedure may contain installation details.

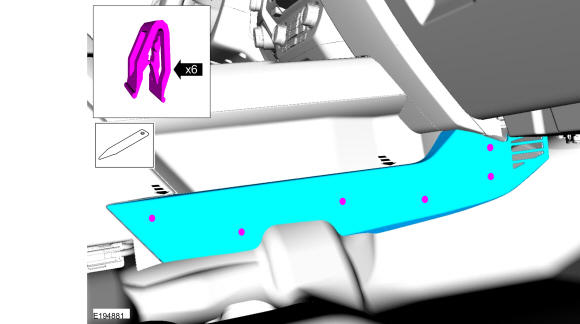

1.

Release the clips and remove the RH lower floor console trim panel.
Use the General Equipment: Interior Trim Remover

GFD43208

Courtesy of FORD MOTOR COMPANY

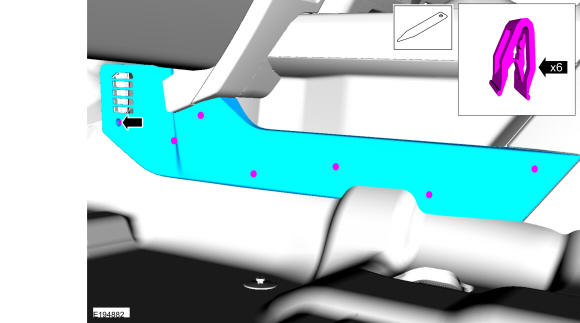

2.

Remove the screw, release the clips and remove the LH lower floor console trim panel.
Use the General Equipment: Interior Trim Remover

Torque

: 22 lb.in (2.5 Nm)

GFD43209

Courtesy of FORD MOTOR COMPANY

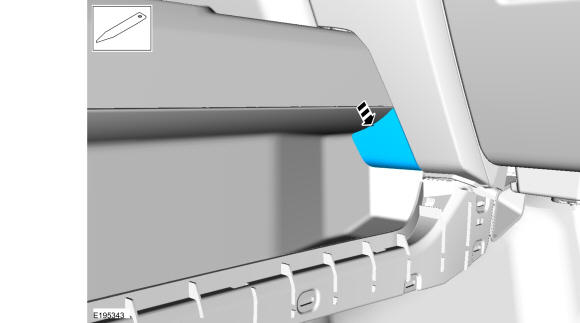

3.

Remove the RH finish panel.
Use the General Equipment: Interior Trim Remover

GFD43210

Courtesy of FORD MOTOR COMPANY

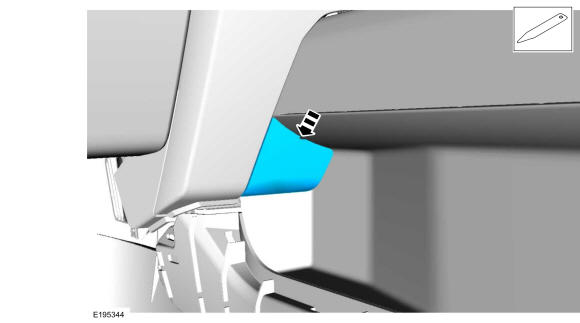

4.

Remove the LH finish panel.
Use the General Equipment: Interior Trim Remover

GFD43211

Courtesy of FORD MOTOR COMPANY

Vehicles with floor mounted selector lever

5.

Remove the selector lever assembly. Refer to: Selector Lever Assembly - Vehicles With: Floor Shift .

Vehicles with steering column mounted selector lever

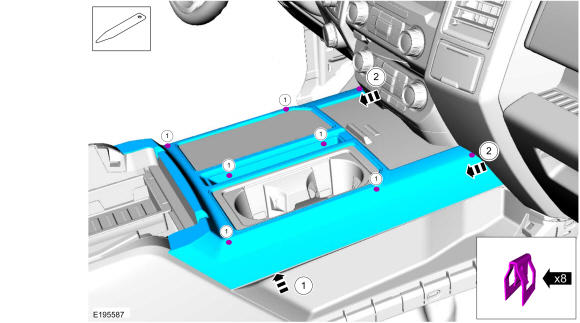

6.
1. 1.

  Release the 6 clips working from the rear of the trim panel forward.
1. 2.

  Release the 2 clips that attach to the instrument panel by pulling rearward and remove the trim panel.

GFD43212

Courtesy of FORD MOTOR COMPANY

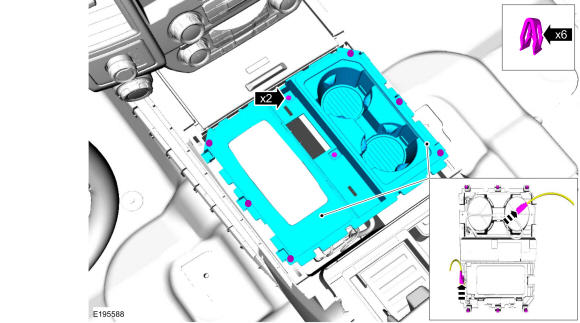

7.

Remove the screws, release the clips and remove the floor console upper finish panel.
- Disconnect the electrical connectors.

GFD43213

Courtesy of FORD MOTOR COMPANY

All vehicles

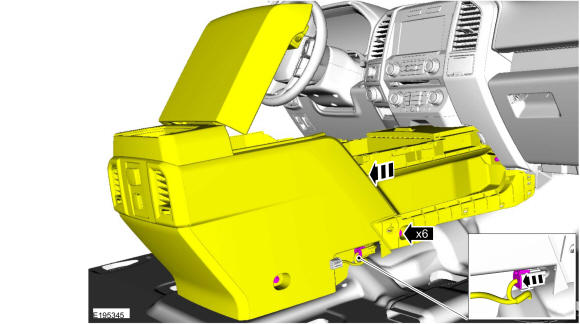

8.

NOTE: Position the front seats forward to access the rear bolts, and position the front seats rearward to access the center bolts.

Remove the bolts and position the floor console rearward.
- Disconnect the electrical connector.
  Torque

  : 48 lb.in (5.4 Nm)

GFD43214

Courtesy of FORD MOTOR COMPANY

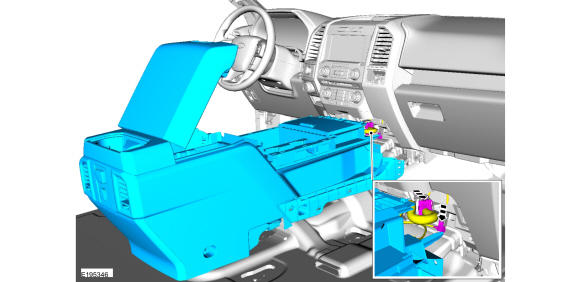

9.

Disconnect the electrical connectors and remove the floor console.

GFD43215

Courtesy of FORD MOTOR COMPANY
