Rear Parking Aid Camera: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Remove the tailgate release handle. Refer to: Tailgate Release Handle
.
- 2.

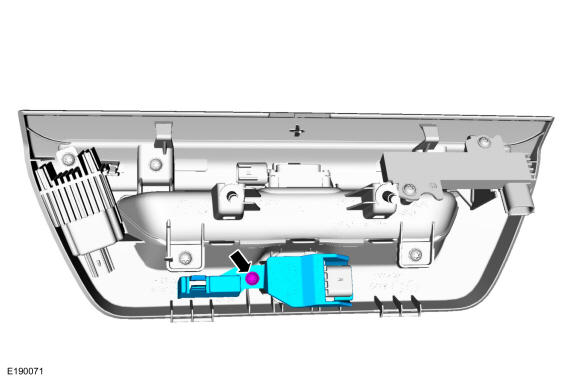

Remove the screw and the rear parking aid camera bracket.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

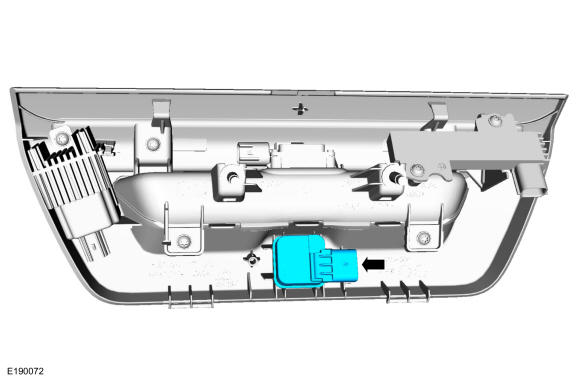

Remove the rear parking aid camera.
 Courtesy of FORD MOTOR COMPANY
|
